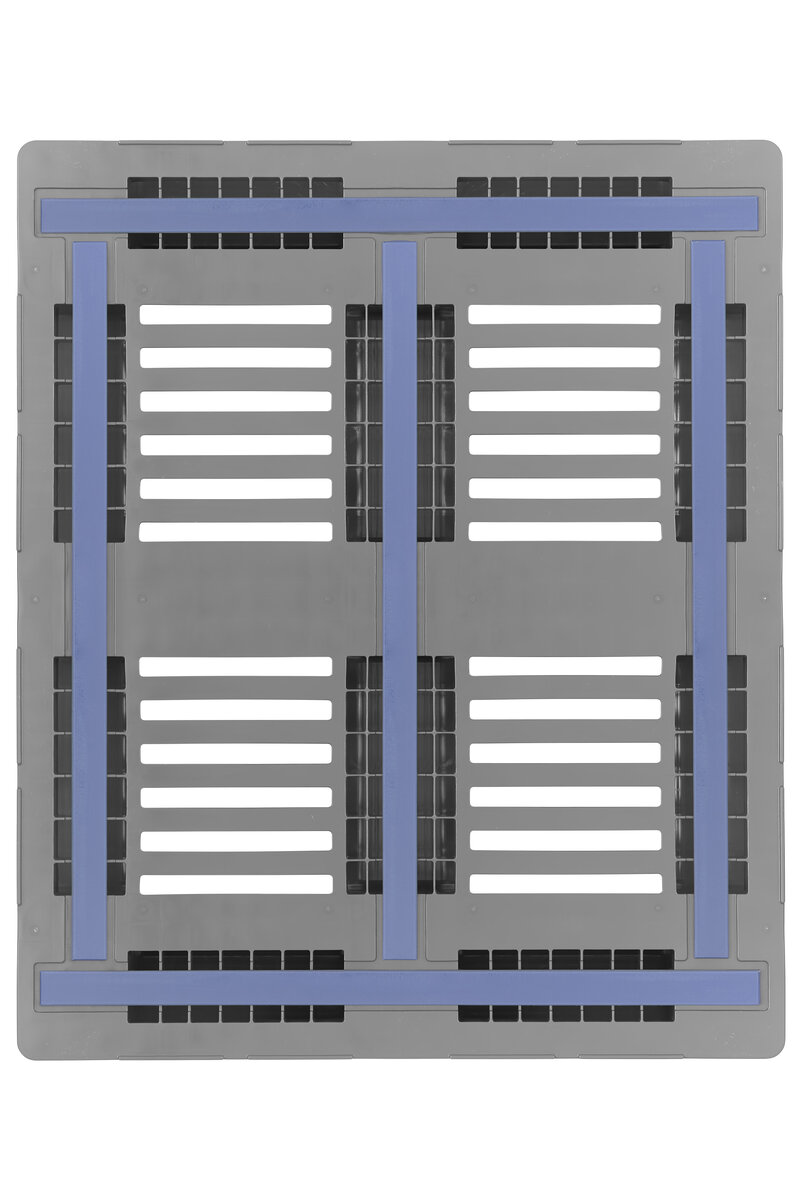

CR3-5 in basalt grey
Palgrip® anti-slip stripes on the top deck

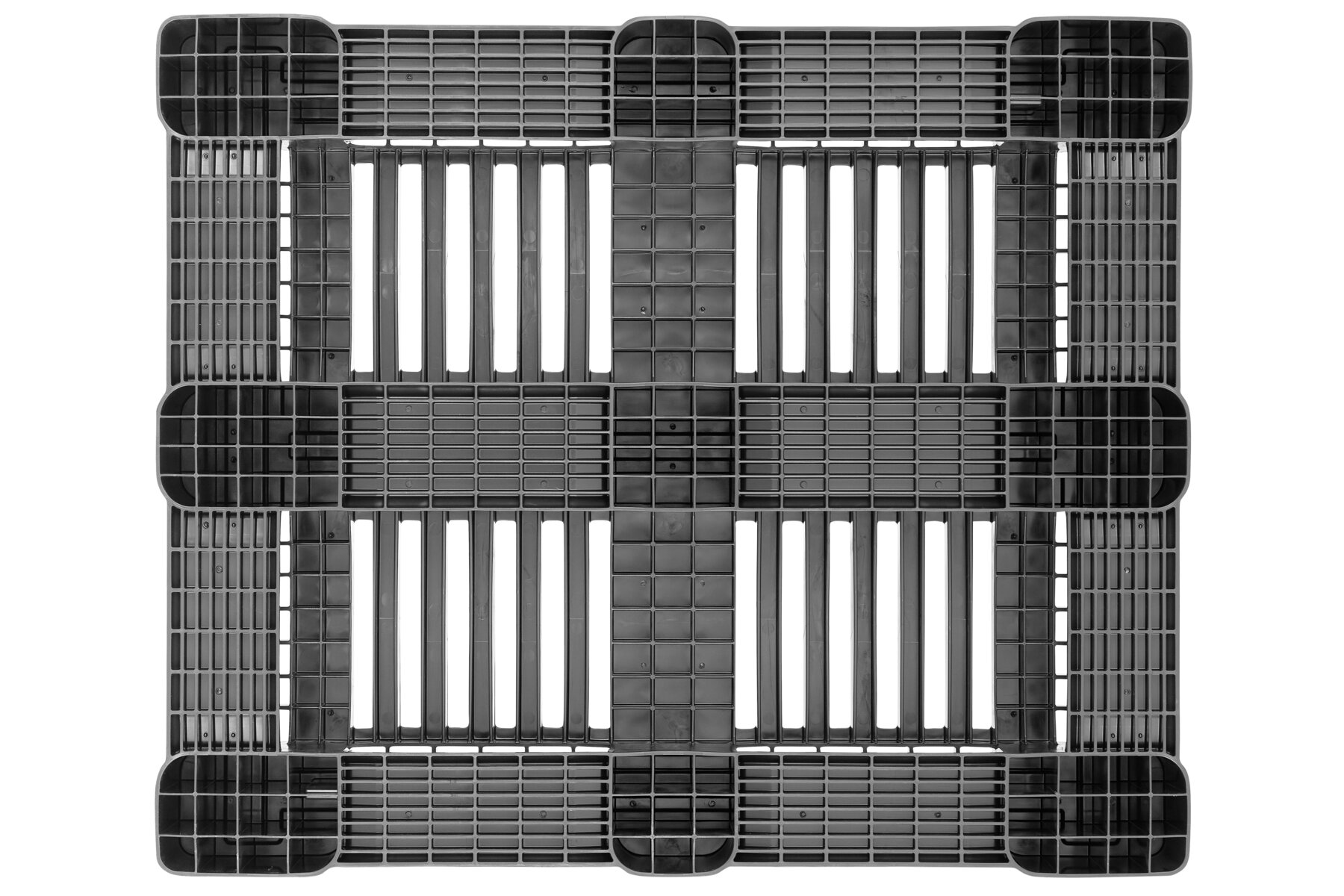

Underside

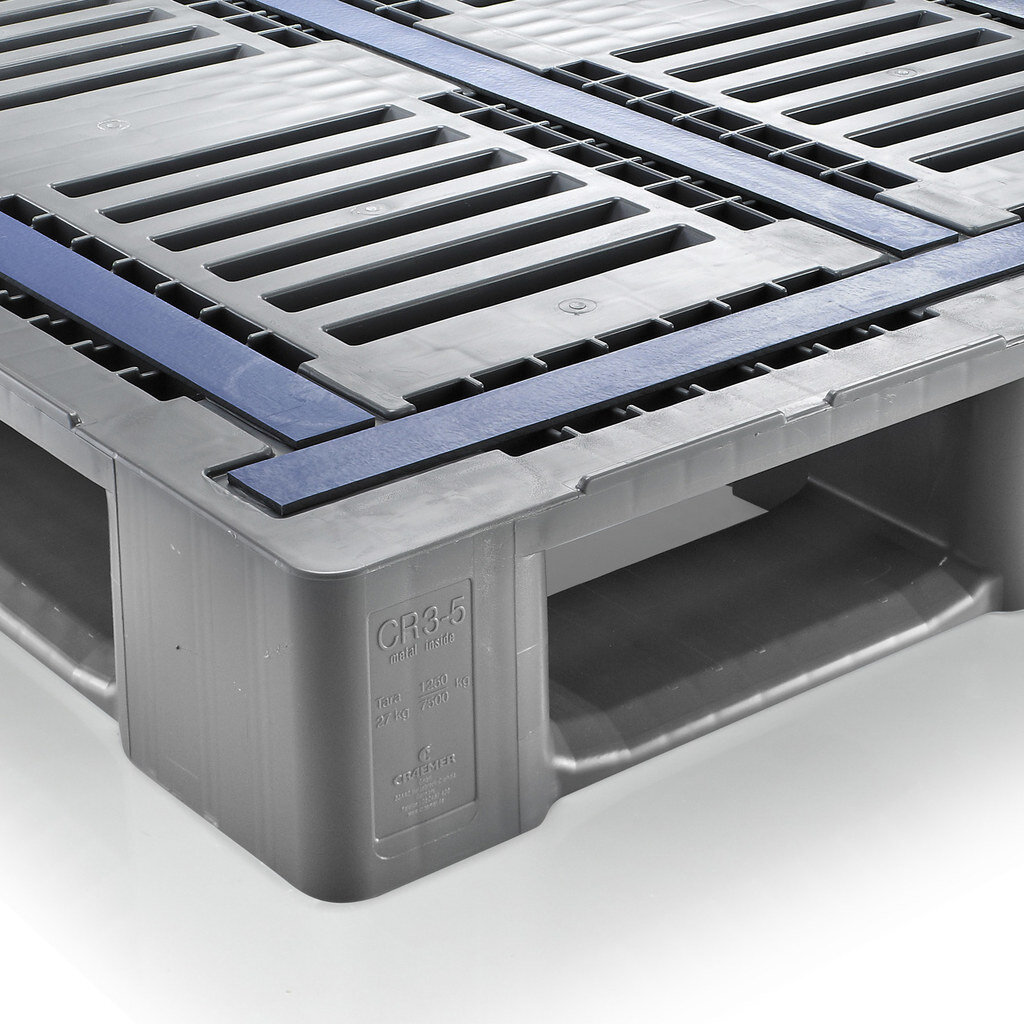

Detail 5 mm rim

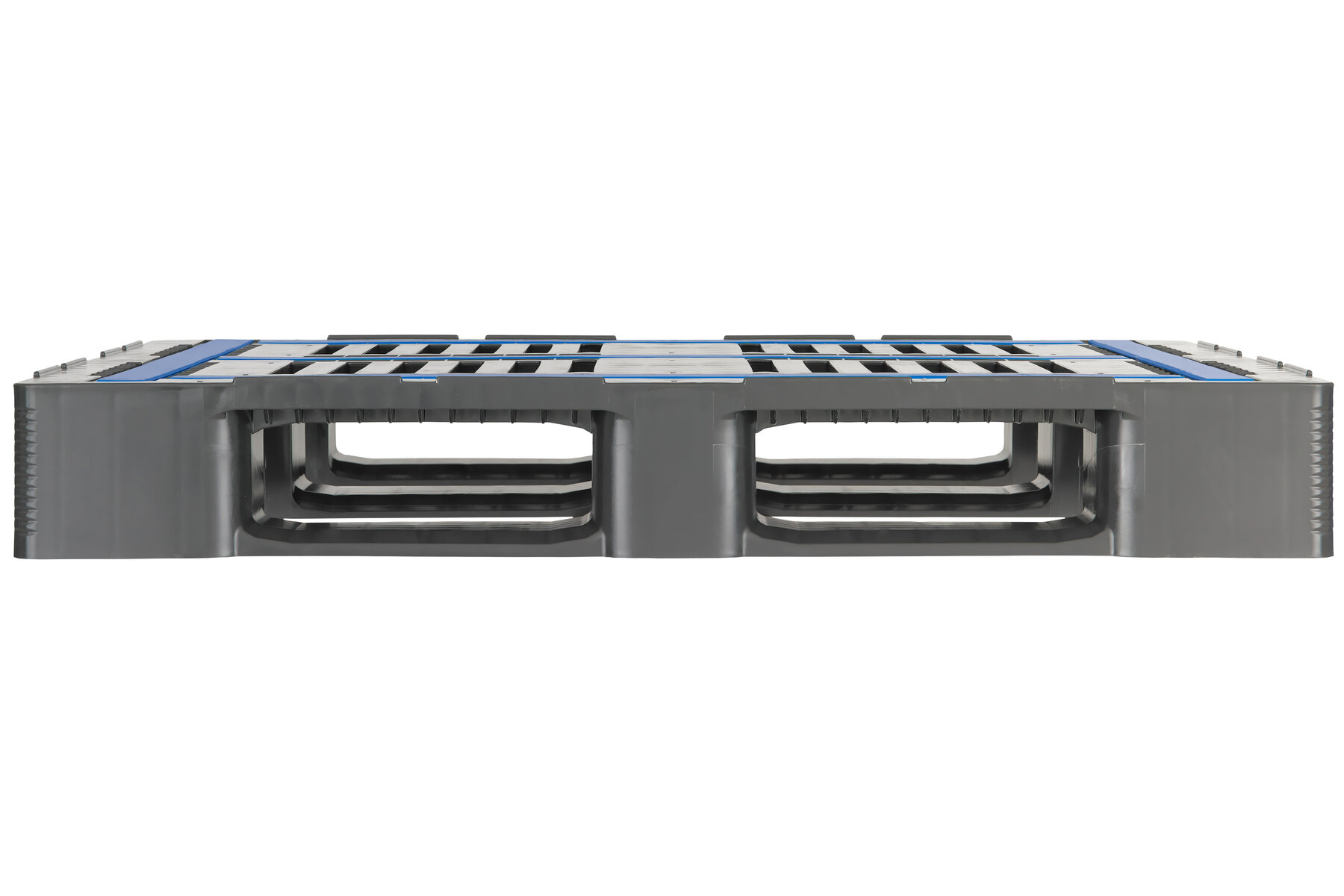

1200 mm side view: stable runner connection

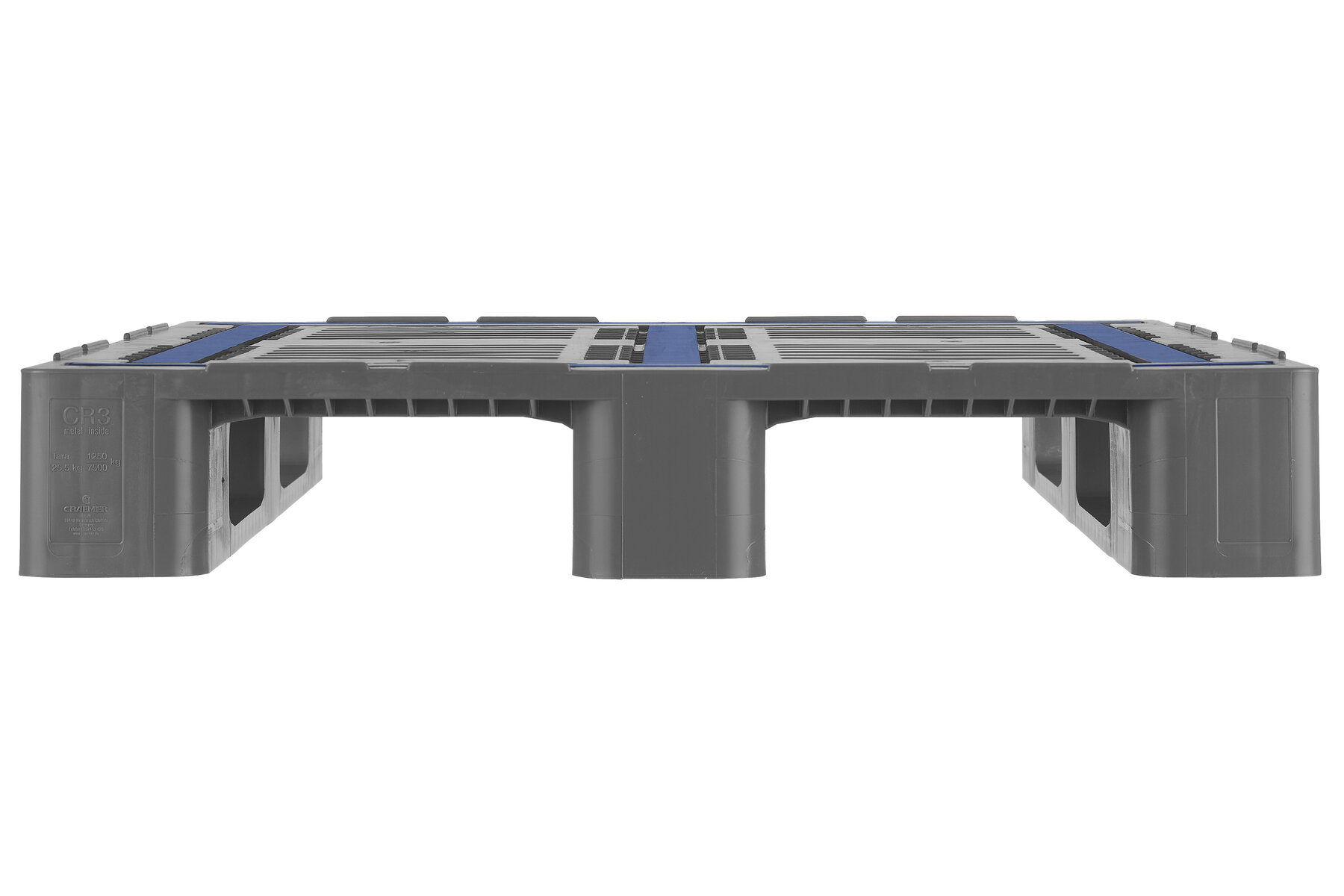

1000 mm side view CR3

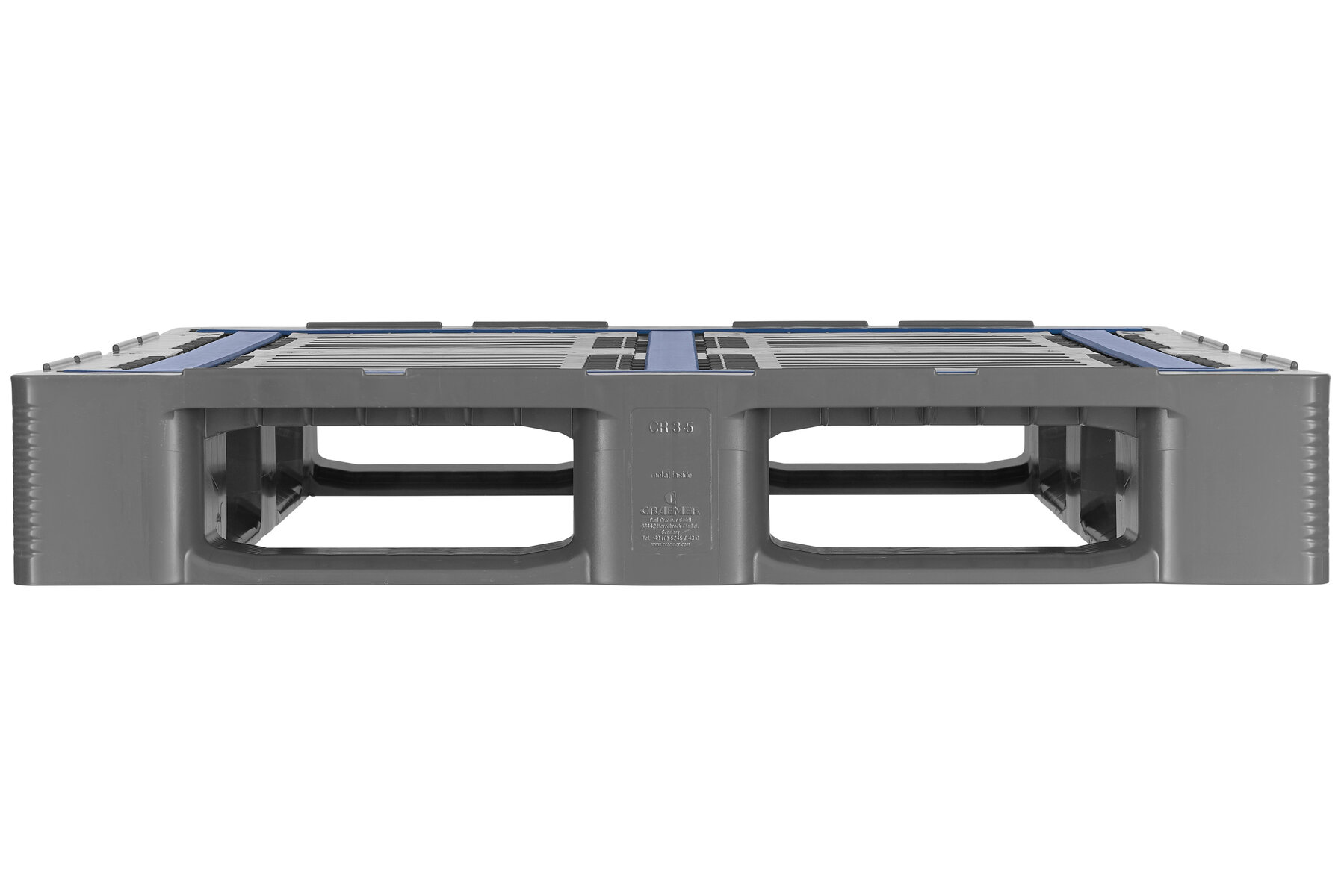

1000 mm side view CR3-5

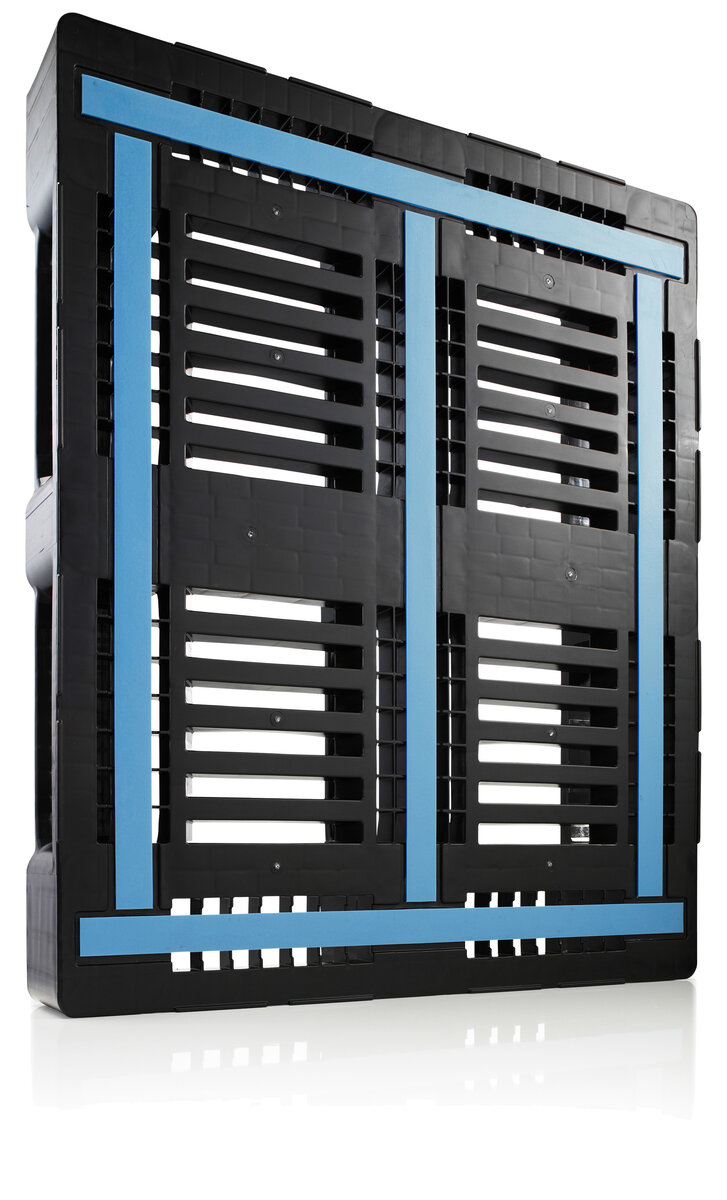

CR3 / CR3-5 in black

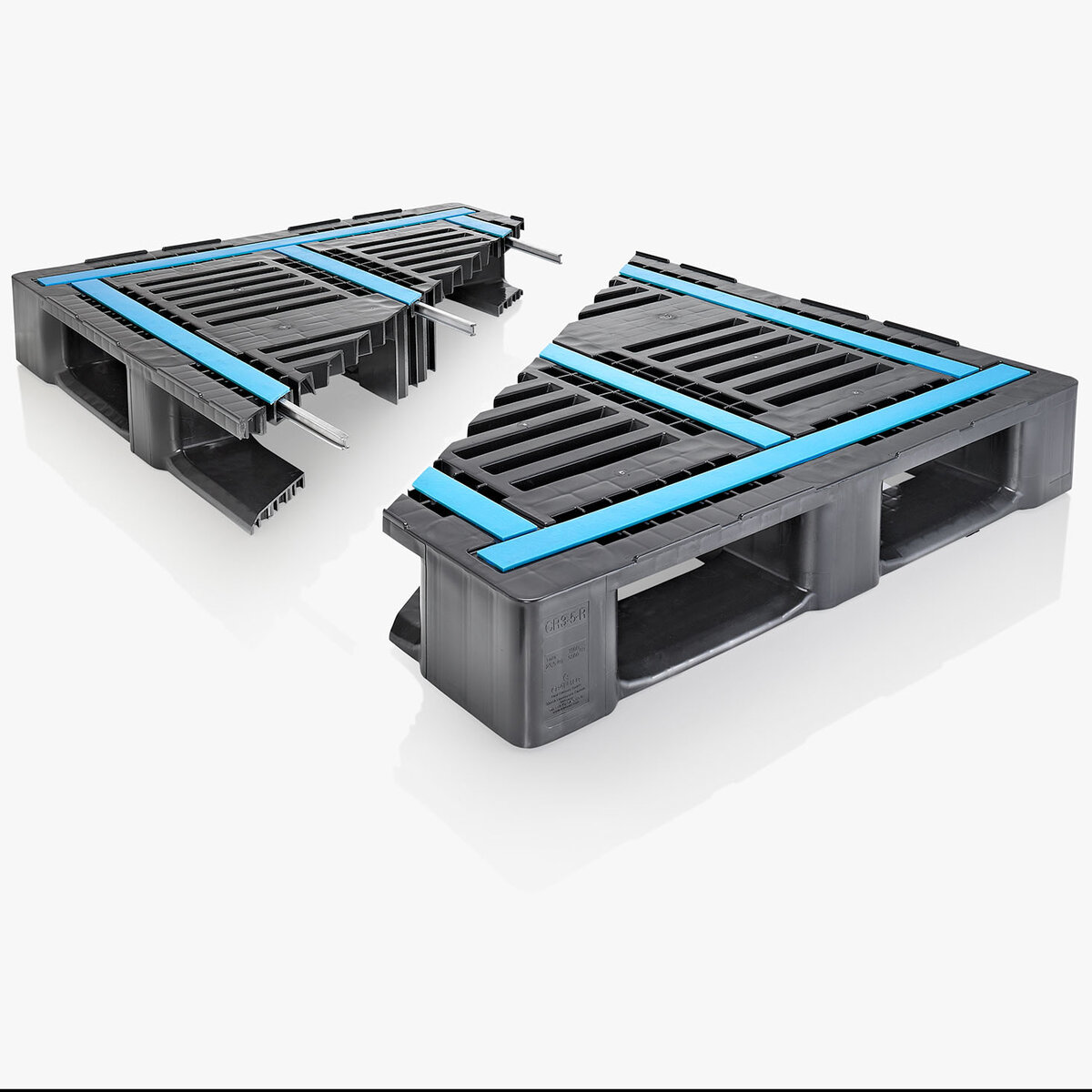

CR3-5 with reinforcement profiles
Manufactured with Palgrip® anti-slip coating

CR3 / CR3-5

The CR3 / CR3-5 industrial pallet with integrated reinforcement profiles is an all-rounder in the heavy-duty category – whether it is used in high racking or on automated conveyor technology. Thanks to its robust design and versatility, the CR heavy-duty plastic pallet is proven both as a pooling pallet and in internal logistics in many different sectors. Without steel profiles, the 3-runner CR3 and the five-runner CR3-5 are ideal for applications where the extreme load-bearing capacity of the metal-reinforced version is not needed, but where high performance is essential.

Characteristics:

Available with 3 runners (CR3) or 5 runners (CR3-5)
High load-bearing capacity for heavy-duty applications
Dimensionally stable with first-class bending parameters, ideal for roller conveyors and automated high rack warehouses
Chamfered edges on both sides of all runners for optimal handling with forklift trucks
Palgrip^® anti-slip strips on the top deck

Options:

Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 1,400kg in high rack
Rims: without, 5 mm, 7 mm
Lid
RFID transponder

Product enquiry

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Rim (mm)	Palgrip® anti-slip strips on the top deck
83335202	20 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	3, unwelded		5 mm	●
83335850	23.5 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	3, unwelded	5		●
83335851	23.5 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	3, unwelded	5	5 mm	●
83330701	21.5 kg	5,000 kg	1,250 kg	1,000 kg	red brown / light blue	5, unwelded		5 mm	●
83332202	21.5 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	5, unwelded		5 mm	●
83330851	25 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	5, unwelded	5	5 mm	●
83332201	25 kg	7,500 kg	1,500 kg	1,400 kg	black / light blue	5, unwelded	5	5 mm	●

Further links:

Case Study Safe beverage handling 2013

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Rim (mm)	Palgrip® anti-slip strips on the top deck
83335202	20 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	3, unwelded		5 mm	●
83335850	23.5 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	3, unwelded	5		●
83335851	23.5 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	3, unwelded	5	5 mm	●
83330701	21.5 kg	5,000 kg	1,250 kg	1,000 kg	red brown / light blue	5, unwelded		5 mm	●
83332202	21.5 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	5, unwelded		5 mm	●
83330851	25 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	5, unwelded	5	5 mm	●
83332201	25 kg	7,500 kg	1,500 kg	1,400 kg	black / light blue	5, unwelded	5	5 mm	●

Art. no.: 83335202
Colour: black / light blue
Runners: 3, unwelded
Rim (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335850
Colour: dark grey / blue
Runners: 3, unwelded
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335851
Colour: dark grey / blue
Runners: 3, unwelded
Rim (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330701
Colour: red brown / light blue
Runners: 5, unwelded
Rim (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332202
Colour: black / light blue
Runners: 5, unwelded
Rim (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330851
Colour: dark grey / blue
Runners: 5, unwelded
Rim (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332201
Colour: black / light blue
Runners: 5, unwelded
Rim (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Technical Data *¹

Dimensions (mm)	1200 x 1000 x 160 mm
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C
Material *2	PE

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Rim (mm)	Palgrip® anti-slip strips on the top deck
83335202	20 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	3, unwelded		5 mm	●
83335850	23.5 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	3, unwelded	5		●
83335851	23.5 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	3, unwelded	5	5 mm	●
83330701	21.5 kg	5,000 kg	1,250 kg	1,000 kg	red brown / light blue	5, unwelded		5 mm	●
83332202	21.5 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	5, unwelded		5 mm	●
83330851	25 kg	7,500 kg	1,500 kg	1,400 kg	dark grey / blue	5, unwelded	5	5 mm	●
83332201	25 kg	7,500 kg	1,500 kg	1,400 kg	black / light blue	5, unwelded	5	5 mm	●

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

Dynamic load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

Technical Data *¹

Art. no.: 83335202
Colour: black / light blue
Runners: 3, unwelded
Rim (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335850
Colour: dark grey / blue
Runners: 3, unwelded
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335851
Colour: dark grey / blue
Runners: 3, unwelded
Rim (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330701
Colour: red brown / light blue
Runners: 5, unwelded
Rim (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332202
Colour: black / light blue
Runners: 5, unwelded
Rim (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330851
Colour: dark grey / blue
Runners: 5, unwelded
Rim (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332201
Colour: black / light blue
Runners: 5, unwelded
Rim (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

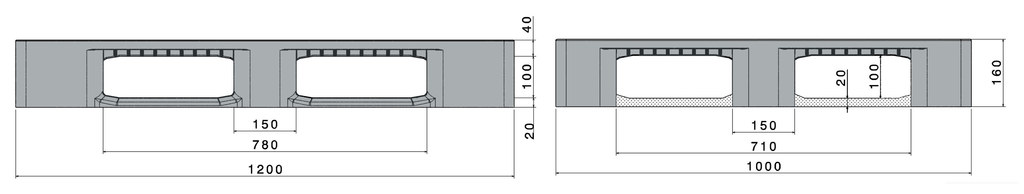

Technical drawings

CR3 CR3-5

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 141 St. Container 40': 300 St. Container 40' High Cube: 340 St.
Truck	MEGA Trailer: 468 St. Jumbo: 504-540 St.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
