DU container

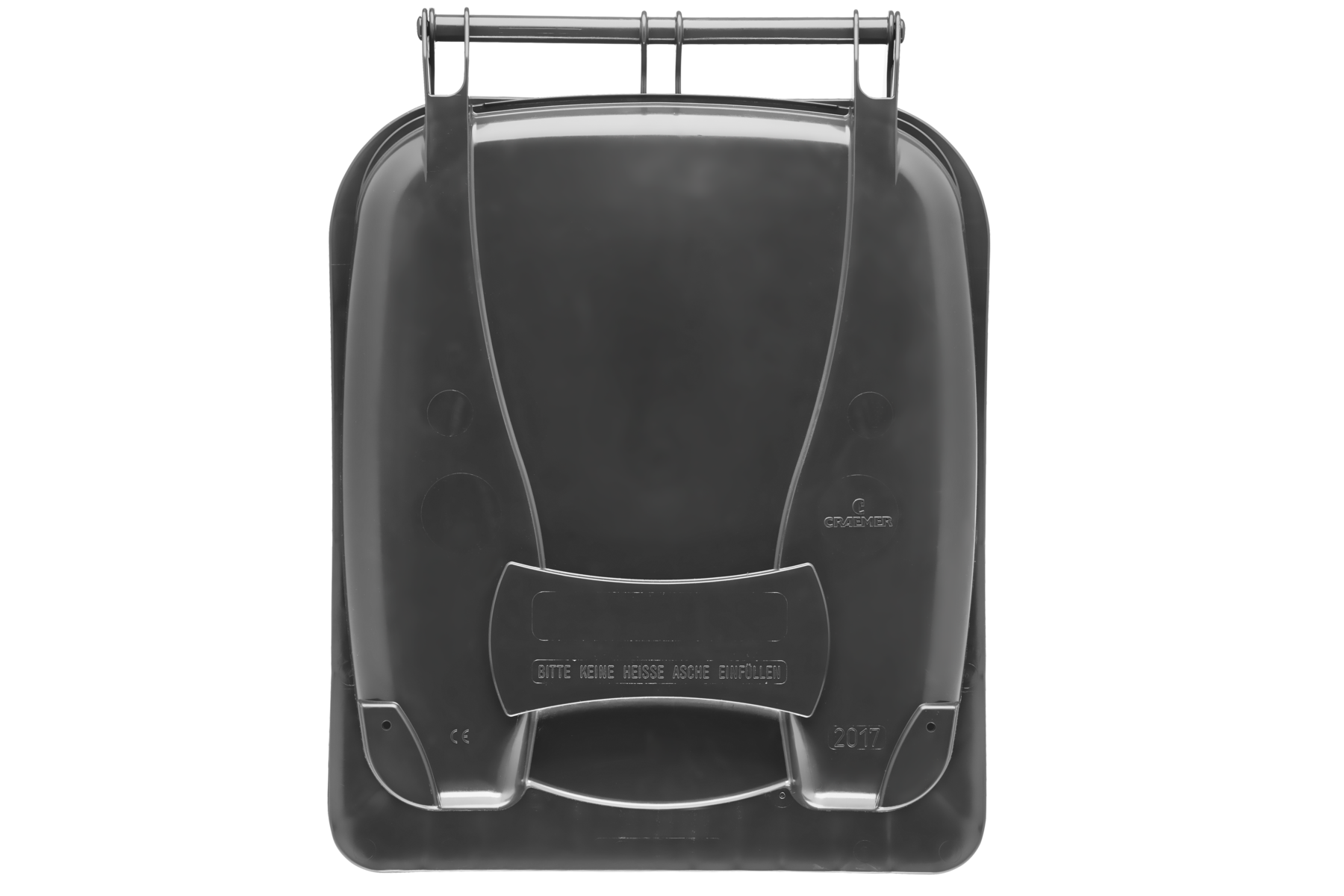

Lid

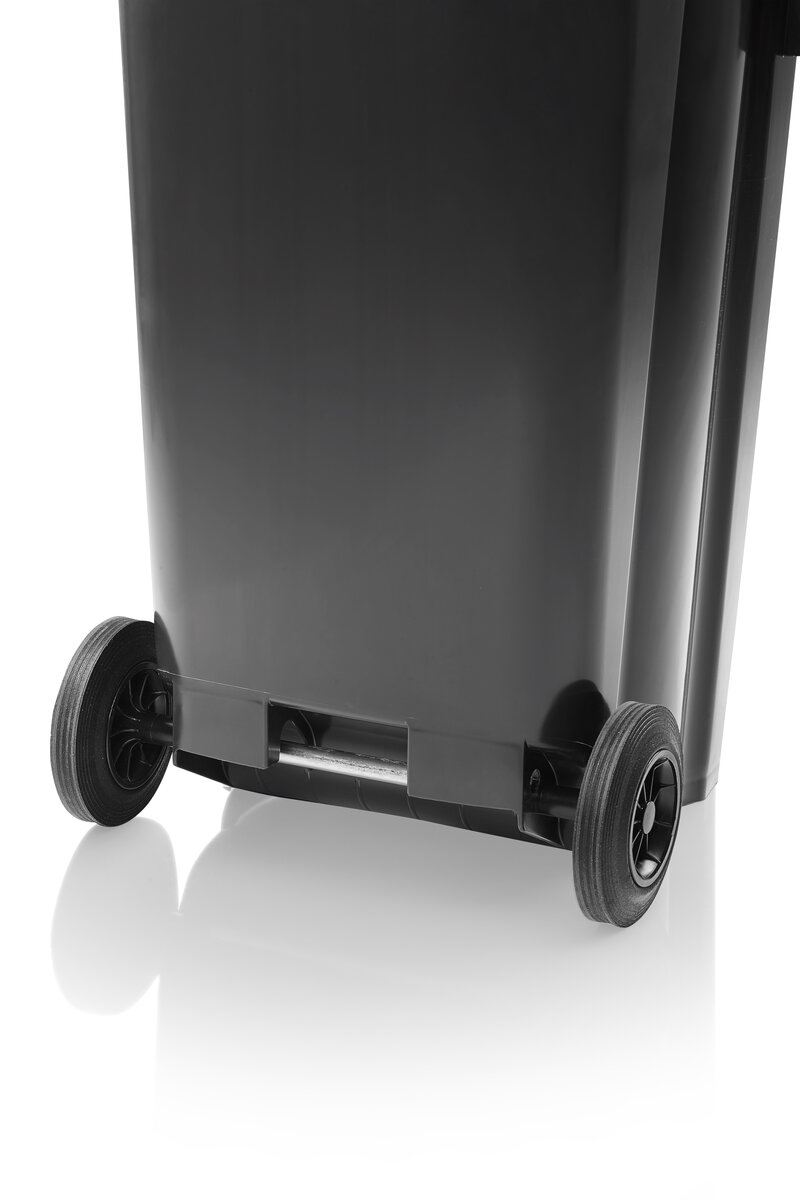

Du container back view

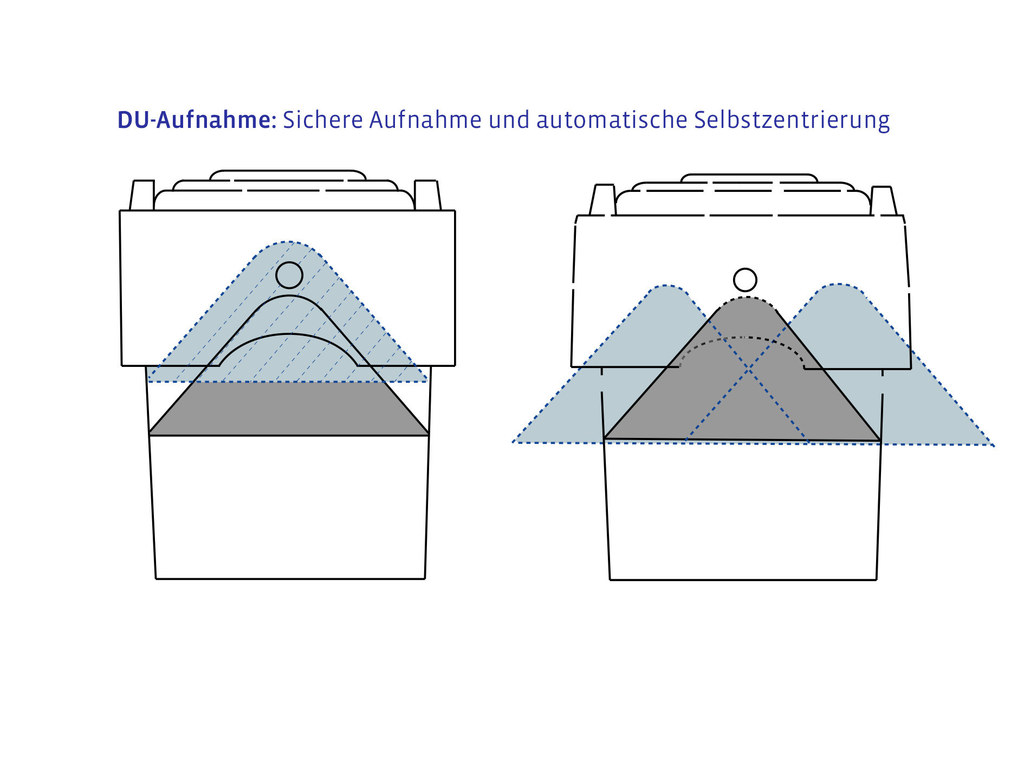

Secure container centering

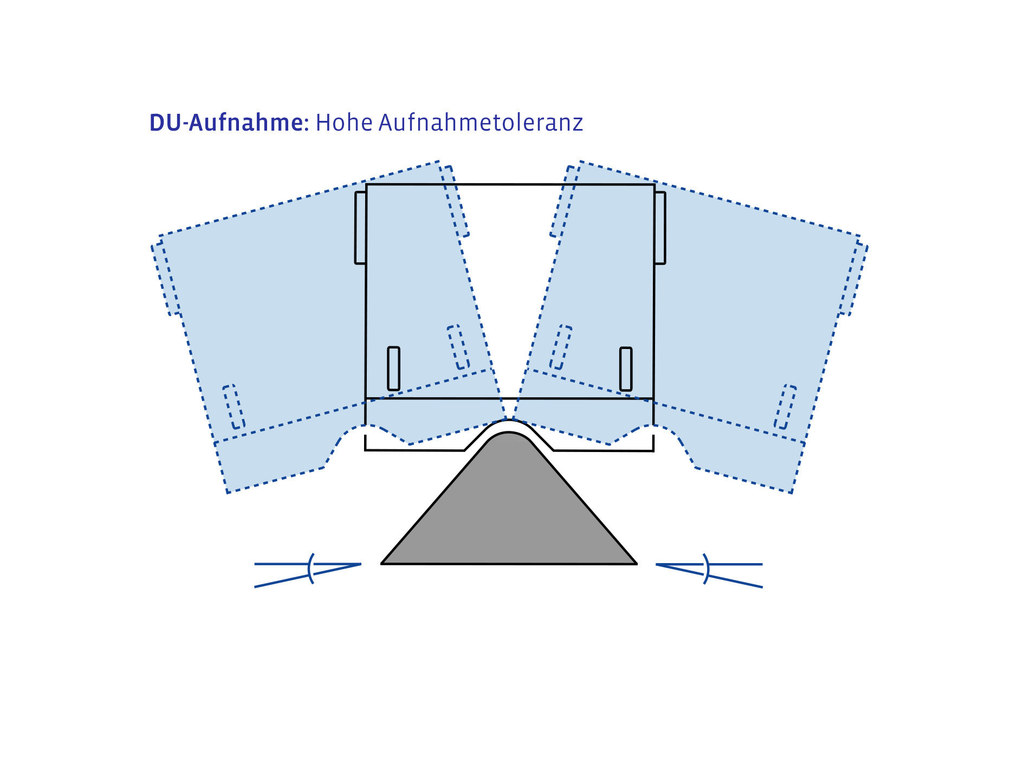

High pick-up tolerance
DU container 60 l
DU container 60 l
DU container 120 l
DU container 240 l
DU container emptying
Available with the Blue Angel environmental label on request

DU Container

The 60, 80, 120, 240 l DU containers with lifting collar for DU lifting devices offer numerous advantages for the emptying of 2-wheel containers. They comply with DIN 30760 and are noise reduced according to EU directive 2000/14/EG.

Characteristics:

Secure container centering, ideal for side loading operations
Firm container seating due to large latching area
External wheels, equipped with 200 mm Ø rubber tires

Options:

Automatic lock
Reflectors

Product enquiry

Art. no.	Outer length (mm)	Outer width (mm)	Outer height (mm)	Volume	Material Lid	Material Body	Holding Capacity* ³	Available colours
DU 60 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	60 l	PE	PE	40 kg	red, green, brown, blue, yellow, anthracite
DU 80 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	80 l	PE	PE	40 kg	red, green, brown, blue, yellow, anthracite
DU 120 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	120 l	PE	PE	48 kg	red, green, brown, blue, yellow, anthracite
DU 240 Kunststoff	575 ±5 mm	795 max. mm	1085 max. mm	240 l	PE	PE	96 kg	red, green, brown, blue, yellow, anthracite

Further links:

Data sheet (PDF)

Art. no.	Outer length (mm)	Outer width (mm)	Outer height (mm)	Volume	Material Lid	Material Body	Holding Capacity* ³	Available colours
DU 60 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	60 l	PE	PE	40 kg	red, green, brown, blue, yellow, anthracite
DU 80 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	80 l	PE	PE	40 kg	red, green, brown, blue, yellow, anthracite
DU 120 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	120 l	PE	PE	48 kg	red, green, brown, blue, yellow, anthracite
DU 240 Kunststoff	575 ±5 mm	795 max. mm	1085 max. mm	240 l	PE	PE	96 kg	red, green, brown, blue, yellow, anthracite

Art. no.: DU 60 Kunststoff
Volume: 60 l

Art. no.: DU 80 Kunststoff
Volume: 80 l

Art. no.: DU 120 Kunststoff
Volume: 120 l

Art. no.: DU 240 Kunststoff
Volume: 240 l

Technical Data *¹

Container corresponds to	DIN 30760, Directive 2000/14/EG
Travelling gear	Wheel Ø 200 mm (DU360: 250 mm), rubber-tired wheels, wheel axle from tempered, galvanized steel
Reciever	Diamond receiver
Prepared for transponders	Yes
Extra equipment / Accessories ^*2	Automatic lock, Reflectors

Art. no.	Outer length (mm)	Outer width (mm)	Outer height (mm)	Volume	Material Lid	Material Body	Holding Capacity* ³	Available colours
DU 60 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	60 l	PE	PE	40 kg	red, green, brown, blue, yellow, anthracite
DU 80 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	80 l	PE	PE	40 kg	red, green, brown, blue, yellow, anthracite
DU 120 Kunststoff	480 ±5 mm	610 max. mm	952 max. mm	120 l	PE	PE	48 kg	red, green, brown, blue, yellow, anthracite
DU 240 Kunststoff	575 ±5 mm	795 max. mm	1085 max. mm	240 l	PE	PE	96 kg	red, green, brown, blue, yellow, anthracite

*1:

All specifications quoted are subject to change. Craemer reserve the right to make changes to product design and specification.

*2:

Extra equipment, accessories, as well as other colours are available at extra cost and on request.

Technical Data *¹

Art. no.: DU 60 Kunststoff
Volume: 60 l

Art. no.: DU 80 Kunststoff
Volume: 80 l

Art. no.: DU 120 Kunststoff
Volume: 120 l

Art. no.: DU 240 Kunststoff
Volume: 240 l
Technical drawings

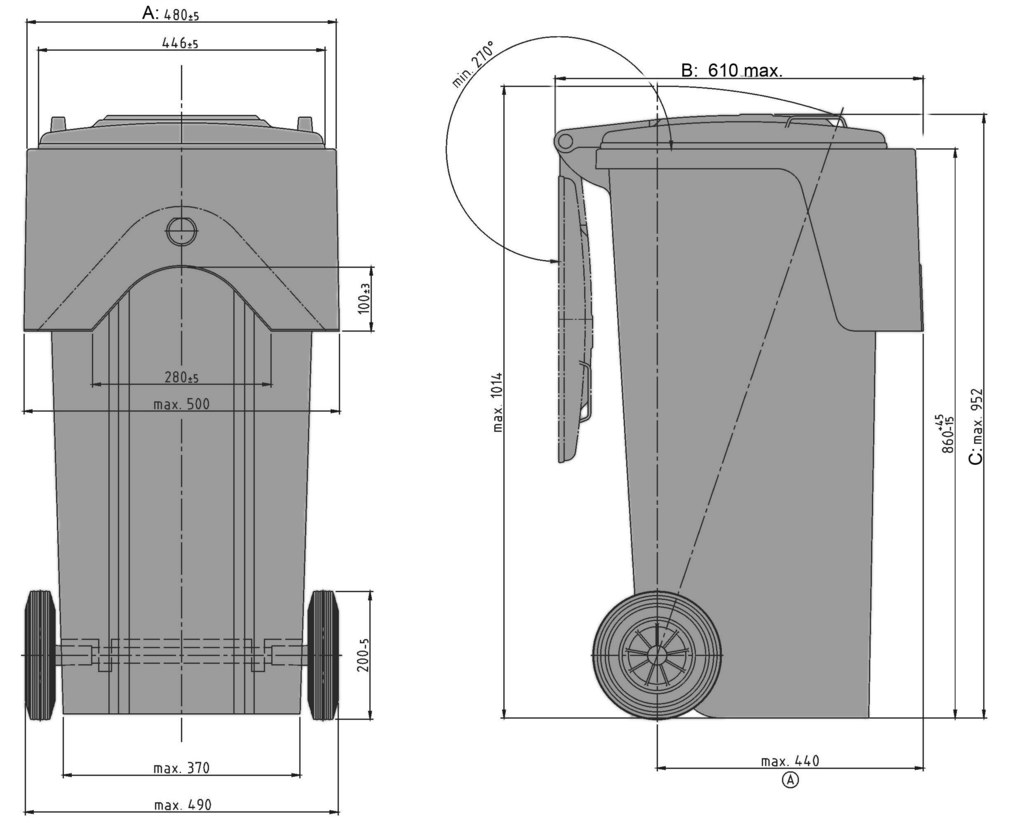

DU 120 l

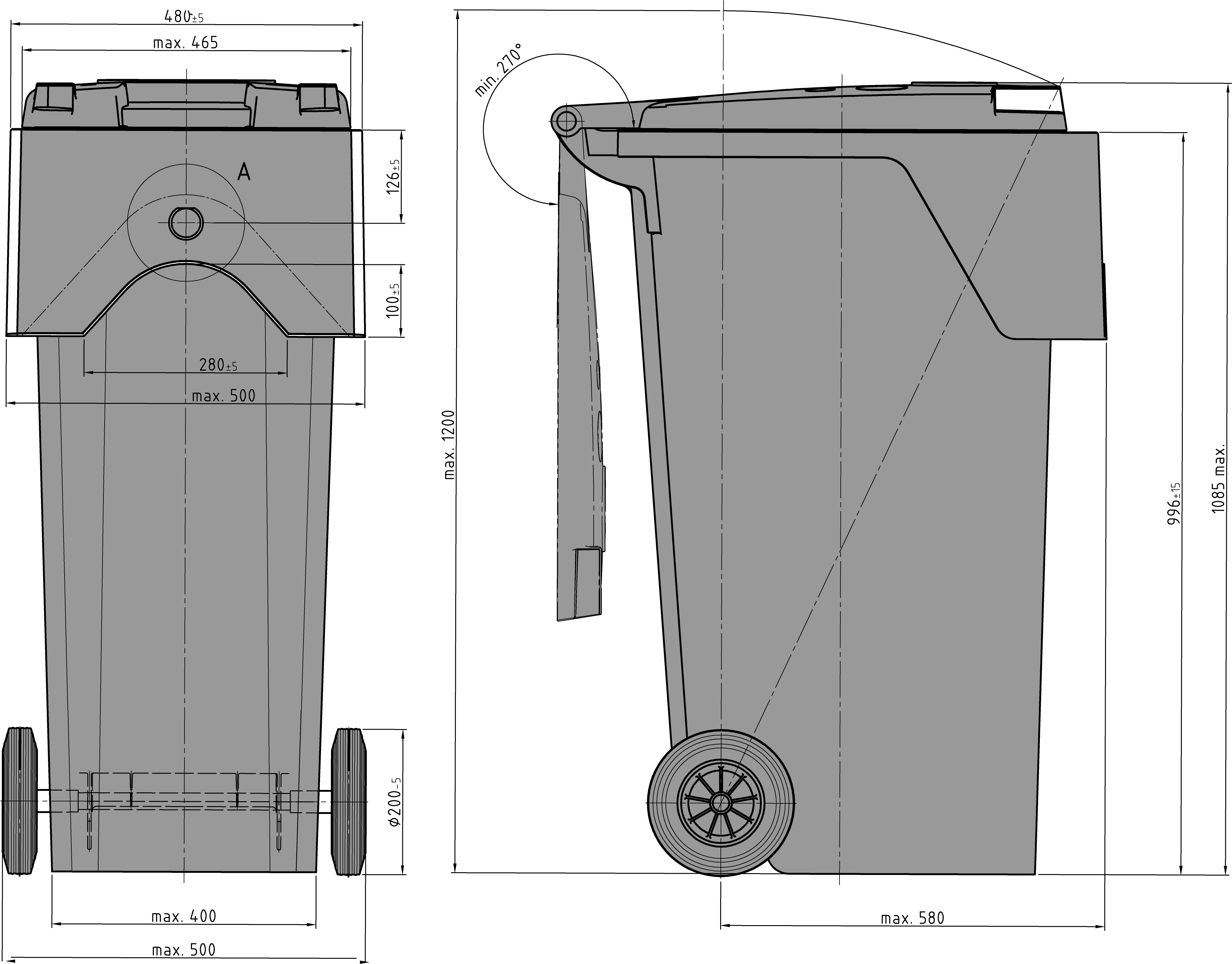

DU 180 l

DU 240 l

DU 60 l

DU 80 l
Loading quantities (Pcs / Approximate amount)

On request
Labeling options
On the lid, on the body
