CR3 / CR3-5

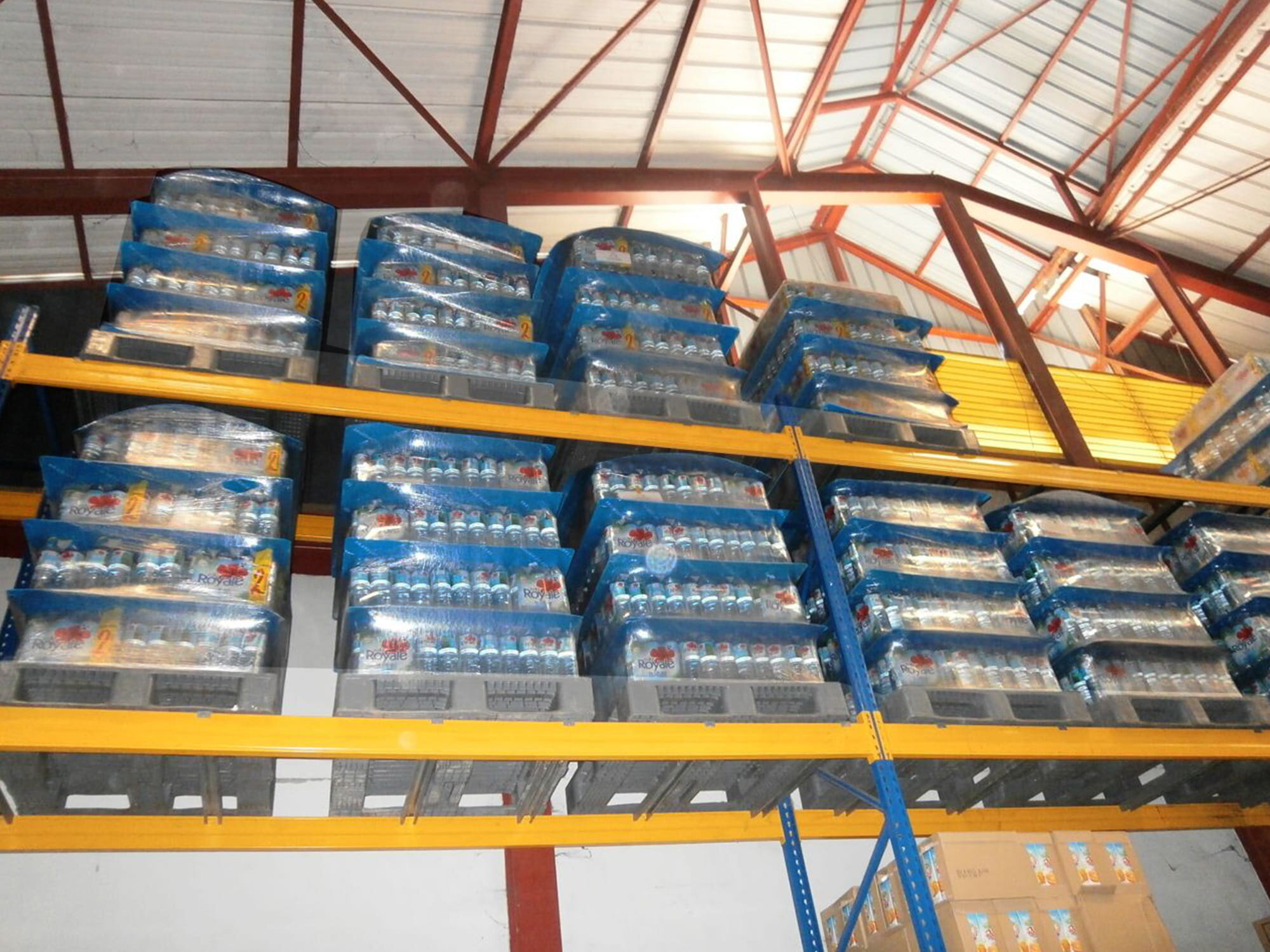

The CR3 / CR3-5 industrial pallet with integrated reinforcement profiles is a versatile heavy-duty all-rounder for universal use – whether it is used in high racking or on automated conveyor technology. Thanks to its robust design and versatility, the CR heavy-duty plastic pallet is proven both as a pooling pallet and in internal logistics in many different sectors. Without steel profiles, the 3-runner CR3 and the five-runner CR3-5 are ideal for applications where the extreme load-bearing capacity of the metal-reinforced version is not needed, but where high performance is essential.

Characteristics:

Available with 3 runners (CR3) or 5 runners (CR3-5)
High load-bearing capacity for heavy-duty applications
Dimensionally stable with superior bending properties, ideal for roller conveyors and automated high rack warehouses
Chamfered edges on both sides of all runners for easy forklift handling
Palgrip^® anti-slip strips on the top deck

Options:

Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 3,100 lbs in high rack
Lip options: none, 0.2", 0.3"
Lid
RFID transponder

Product enquiry

Art. no.	Weight (kg)	Load Capacity (lbs) Static *³	Load capacity (lbs) Dynamic *³	Load Capacity (lbs) In Racking System *³	Color	Runners	Reinforcement profiles	Lip	Palgrip® anti-slip strips on the top deck
83335851	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	3, unwelded	5	0.2 "	●
83330701	47.4 lbs	11,000 lbs	2,800 lbs	2,200 lbs	red brown / light blue	5, unwelded		0.2 "	●
83335202	44.1 lbs	11,000 lbs	2,800 lbs	2,200 lbs	black / light blue	3, unwelded		0.2 "	●
83332202	47.4 lbs	11,000 lbs	2,800 lbs	2,200 lbs	black / light blue	5, unwelded		0.2 "	●
83332201	55.1 lbs	16,550 lbs	3,300 lbs	3,100 lbs	black / light blue	5, unwelded	5	0.2 "	●
83335850	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	3, unwelded	5		●
83330851	55.1 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	5, unwelded	5	0.2 "	●

Further links:

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (lbs) Static *³	Load capacity (lbs) Dynamic *³	Load Capacity (lbs) In Racking System *³	Color	Runners	Reinforcement profiles	Lip	Palgrip® anti-slip strips on the top deck
83335851	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	3, unwelded	5	0.2 "	●
83330701	47.4 lbs	11,000 lbs	2,800 lbs	2,200 lbs	red brown / light blue	5, unwelded		0.2 "	●
83335202	44.1 lbs	11,000 lbs	2,800 lbs	2,200 lbs	black / light blue	3, unwelded		0.2 "	●
83332202	47.4 lbs	11,000 lbs	2,800 lbs	2,200 lbs	black / light blue	5, unwelded		0.2 "	●
83332201	55.1 lbs	16,550 lbs	3,300 lbs	3,100 lbs	black / light blue	5, unwelded	5	0.2 "	●
83335850	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	3, unwelded	5		●
83330851	55.1 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	5, unwelded	5	0.2 "	●

Art. no.: 83335851
Color: dark gray / blue
Runners: 3, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330701
Color: red brown / light blue
Runners: 5, unwelded
Lip (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335202
Color: black / light blue
Runners: 3, unwelded
Lip (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332202
Color: black / light blue
Runners: 5, unwelded
Lip (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332201
Color: black / light blue
Runners: 5, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335850
Color: dark gray / blue
Runners: 3, unwelded
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330851
Color: dark gray / blue
Runners: 5, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Technical Data *¹

Dimensions	47.2 x 39.4 x 6.3 (1200 x 1000 x 160 mm)
Temperature stability	-22°F to +104°F, briefly up to +194°F

Art. no.	Weight (kg)	Load Capacity (lbs) Static *³	Load capacity (lbs) Dynamic *³	Load Capacity (lbs) In Racking System *³	Color	Runners	Reinforcement profiles	Lip	Palgrip® anti-slip strips on the top deck
83335851	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	3, unwelded	5	0.2 "	●
83330701	47.4 lbs	11,000 lbs	2,800 lbs	2,200 lbs	red brown / light blue	5, unwelded		0.2 "	●
83335202	44.1 lbs	11,000 lbs	2,800 lbs	2,200 lbs	black / light blue	3, unwelded		0.2 "	●
83332202	47.4 lbs	11,000 lbs	2,800 lbs	2,200 lbs	black / light blue	5, unwelded		0.2 "	●
83332201	55.1 lbs	16,550 lbs	3,300 lbs	3,100 lbs	black / light blue	5, unwelded	5	0.2 "	●
83335850	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	3, unwelded	5		●
83330851	55.1 lbs	16,550 lbs	3,300 lbs	3,100 lbs	dark gray / blue	5, unwelded	5	0.2 "	●

*1:

All technical data reflect characteristic features tested under specially defined conditions. Variations may occur due to different usage conditions, such as loading method, ambient temperature, and storage duration. All data and specifications are subject to change without notice. Our service team is happy to assist in reviewing the specific requirements of your individual application.

*2:

Our service team is available to provide precise information about material compositions.

*3:

Static load: Resistance to pressure on a flat surface with an evenly distributed load at a room temperature of approx. 68 °F.

Dynamic load: On a forklift with an evenly distributed load at a room temperature of approx. 68 °F.

In racking system: Evenly distributed load (sacks) along the longitudinal sides, resting on two supports for over 100 h at a room temperature of approx. 68°F.

Technical Data *¹

Art. no.: 83335851
Color: dark gray / blue
Runners: 3, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330701
Color: red brown / light blue
Runners: 5, unwelded
Lip (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335202
Color: black / light blue
Runners: 3, unwelded
Lip (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332202
Color: black / light blue
Runners: 5, unwelded
Lip (mm): 5 mm
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83332201
Color: black / light blue
Runners: 5, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83335850
Color: dark gray / blue
Runners: 3, unwelded
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83330851
Color: dark gray / blue
Runners: 5, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 5
Palgrip® anti-slip strips on the top deck: Yes
Technical drawings

CR3 CR3-5

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 141 St. Container 40': 300 St. Container 40' High Cube: 340 St.
Truck	MEGA Trailer: 468 St. Jumbo: 504-540 St.

Labeling options
Customized printing and numbering available on request depending on quantity. Position upon consultation.
