E3 / E3-5

The E3 / E3-5 industrial size pallet with integrated reinforcement profiles is a new addition to the Craemer plastic pallet portfolio, aimed at becoming an indispensable part of the intralogistics of many industries. The rackable pallets offer exceptional robustness and shock-resistance thanks to high wall thickness and an overall robust construction. Paired with six metal profiles (four lengthwise and two crosswise), they convince with a high load capacity for heavy-duty applications and great stability along both the long and short sides. The straight centre runners without any recesses or notches ensure a strong connection to the pallet body and reliably prevent stress fractures or fissures in daily handling. This heavy-duty plastic pallet convinces as a durable solution for any application - from automated conveyor processes to high racking.

E3-5 pallet as Zero Virgin

The Zero Virgin pallet version is made from 100% recycled plastic. Its material is recovered from discarded plastic products, processed in the company’s own extrusion machinery, and refined. As a result, the Craemer polymer blend "Zero Virgin" maintains its exceptional quality and - just like the recyclable E3-5 Zero Virgin - remains an integral part of the production cycle.

Characteristics:

Available with 3 runners (E3) or 5 runners (E3-5)
Rackable pallet with high load-bearing capacity for heavy-duty applications
Load-bearing capacity of up to 3,100 lbs in high rack thanks to six metal profiles
Dimensionally stable with first-class bending properties, ideal for roller conveyors and automated high rack warehouses

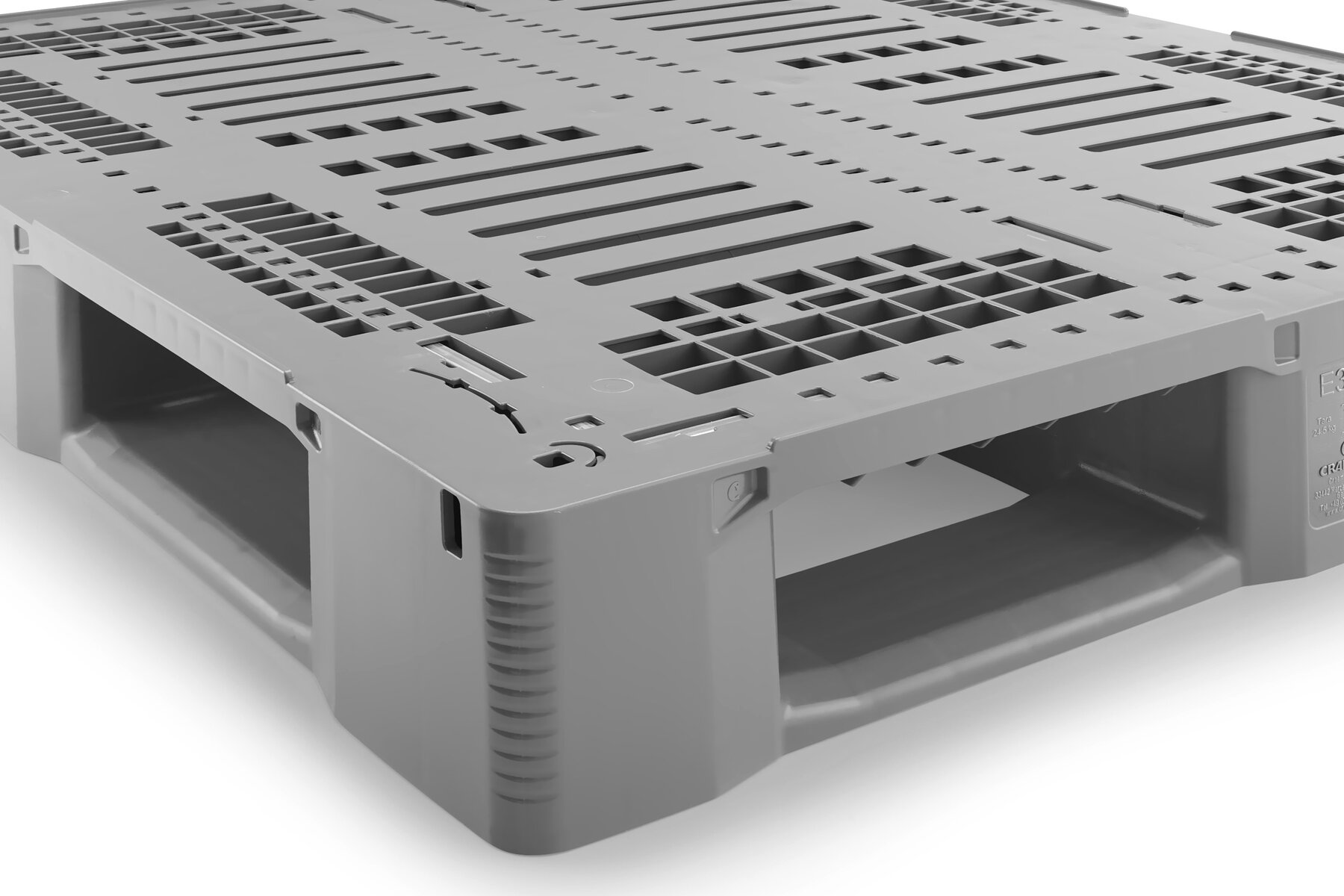

Chamfered edges on both sides of all runners for easy forklift handling

Options:

Lip options: none, 0.2 inch, 0.3 inch, 0.9 inch
Lid
RFID transponder
Retrofittable Palgrip^® anti-slip clips for the underside of the deck

Product enquiry

Art. no.	Weight (kg)	Load Capacity (lbs) Static *³	Load capacity (lbs) Dynamic *³	Load Capacity (lbs) In Racking System *³	Color	Runners	ESD	Reinforcement profiles	Central box retainers	Lip	Full-surface Palgrip® anti-slip top deck	Palgrip® anti-slip strips on the top deck	Palgrip® anti-slip pads on the top deck	Palgrip® anti-slip clips on the underside of the deck	Palgrip® anti-slip runners	Palgrip® anti-slip plugs from the top to the underside of the deck	Amount
83520861	54 lbs	16,550 lbs	3,300 lbs	3,100 lbs	basalt gray	5, unwelded		6		0.2 "
83525861	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	basalt gray	3, unwelded		6		0.2 "

Further links:

Landing page

Press release

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (lbs) Static *³	Load capacity (lbs) Dynamic *³	Load Capacity (lbs) In Racking System *³	Color	Runners	ESD	Reinforcement profiles	Central box retainers	Lip	Full-surface Palgrip® anti-slip top deck	Palgrip® anti-slip strips on the top deck	Palgrip® anti-slip pads on the top deck	Palgrip® anti-slip clips on the underside of the deck	Palgrip® anti-slip runners	Palgrip® anti-slip plugs from the top to the underside of the deck
83520861	54 lbs	16,550 lbs	3,300 lbs	3,100 lbs	basalt gray	5, unwelded		6		0.2 "
83525861	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	basalt gray	3, unwelded		6		0.2 "

Art. no.: 83520861
Color: basalt gray
Runners: 5, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 6

Art. no.: 83525861
Color: basalt gray
Runners: 3, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 6

Technical Data *¹

Dimensions	48 x 40 x 6.3 " (1200 x 1000 x 160 mm)
Temperature stability	-22°F to +104°F, briefly up to +194°F

Art. no.	Weight (kg)	Load Capacity (lbs) Static *³	Load capacity (lbs) Dynamic *³	Load Capacity (lbs) In Racking System *³	Color	Runners	ESD	Reinforcement profiles	Central box retainers	Lip	Full-surface Palgrip® anti-slip top deck	Palgrip® anti-slip strips on the top deck	Palgrip® anti-slip pads on the top deck	Palgrip® anti-slip clips on the underside of the deck	Palgrip® anti-slip runners	Palgrip® anti-slip plugs from the top to the underside of the deck
83520861	54 lbs	16,550 lbs	3,300 lbs	3,100 lbs	basalt gray	5, unwelded		6		0.2 "
83525861	51.8 lbs	16,550 lbs	3,300 lbs	3,100 lbs	basalt gray	3, unwelded		6		0.2 "

*1:

All technical data reflect characteristic features tested under specially defined conditions. Variations may occur due to different usage conditions, such as loading method, ambient temperature, and storage duration. All data and specifications are subject to change without notice. Our service team is happy to assist in reviewing the specific requirements of your individual application.

*2:

Our service team is available to provide precise information about material compositions.

*3:

Static load: Resistance to pressure on a flat surface with an evenly distributed load at a room temperature of approx. 68 °F.

Dynamic load: On a forklift with an evenly distributed load at a room temperature of approx. 68 °F.

In racking system: Evenly distributed load (sacks) along the longitudinal sides, resting on two supports for over 100 h at a room temperature of approx. 68°F.

Technical Data *¹

Art. no.: 83520861
Color: basalt gray
Runners: 5, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 6

Art. no.: 83525861
Color: basalt gray
Runners: 3, unwelded
Lip (mm): 5 mm
Reinforcement profiles: 6
Technical drawings

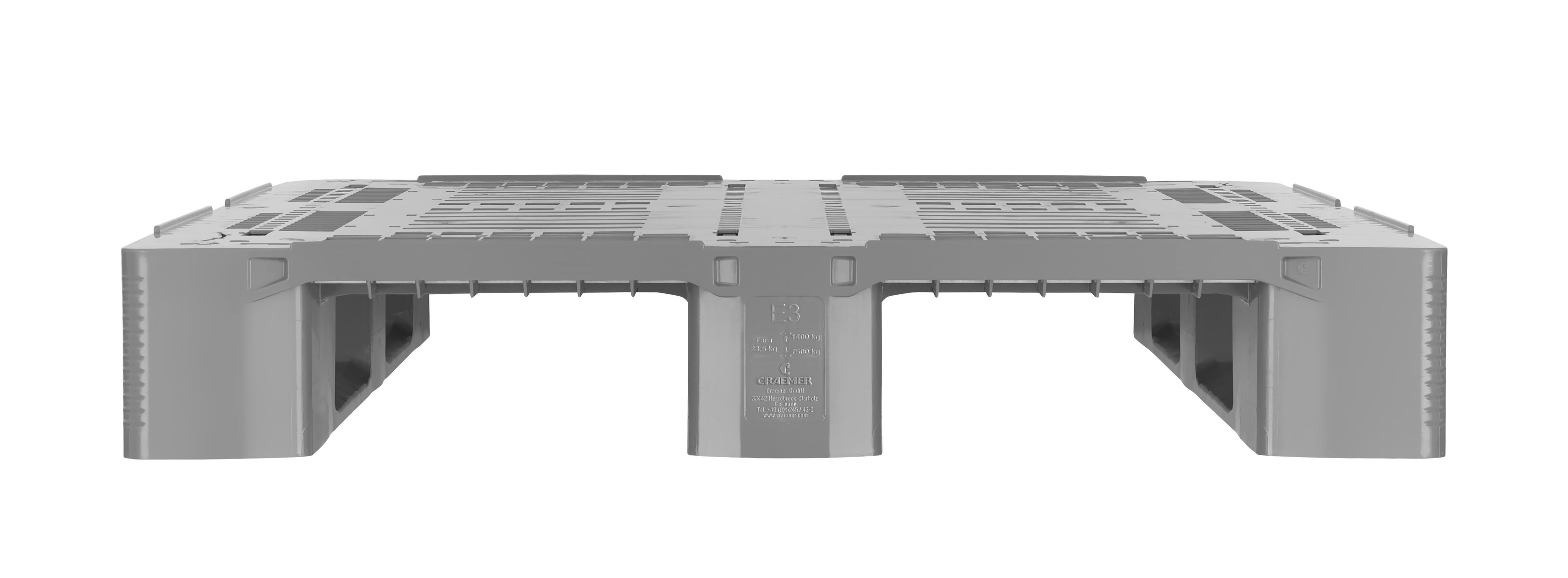

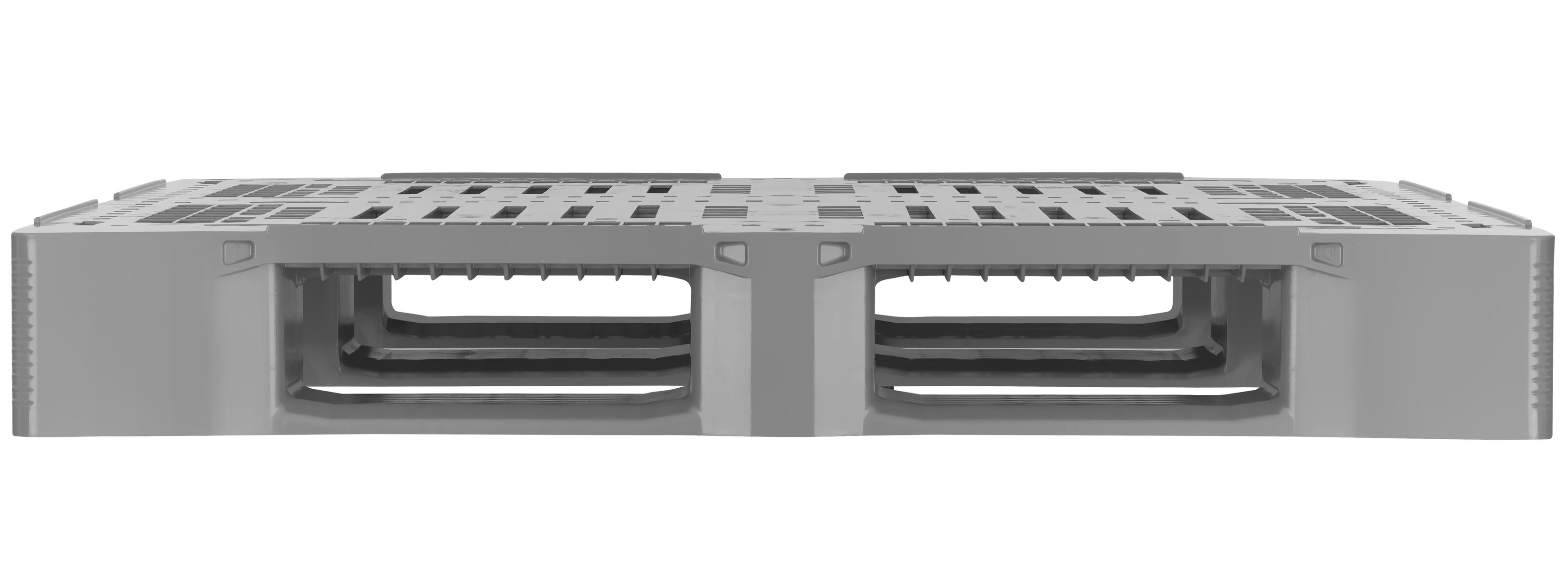

E3

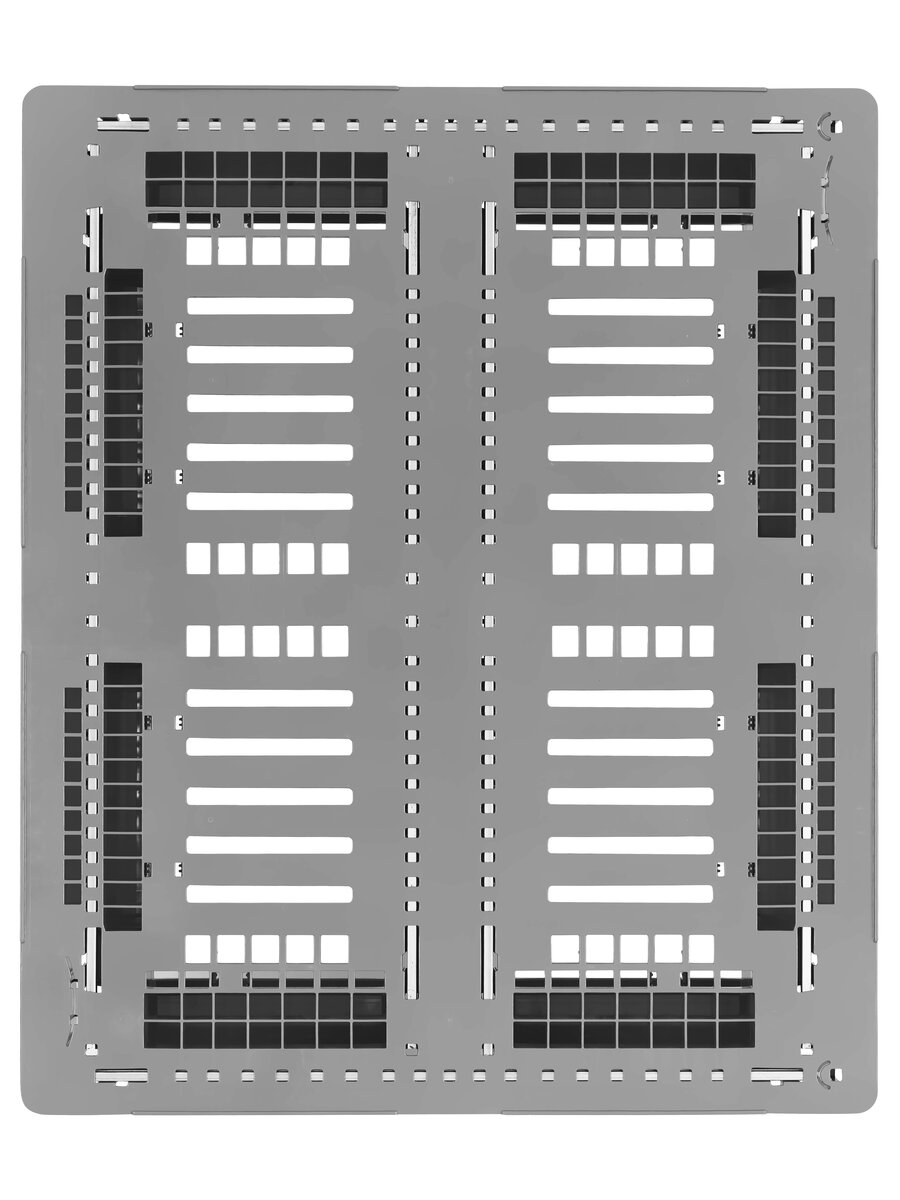

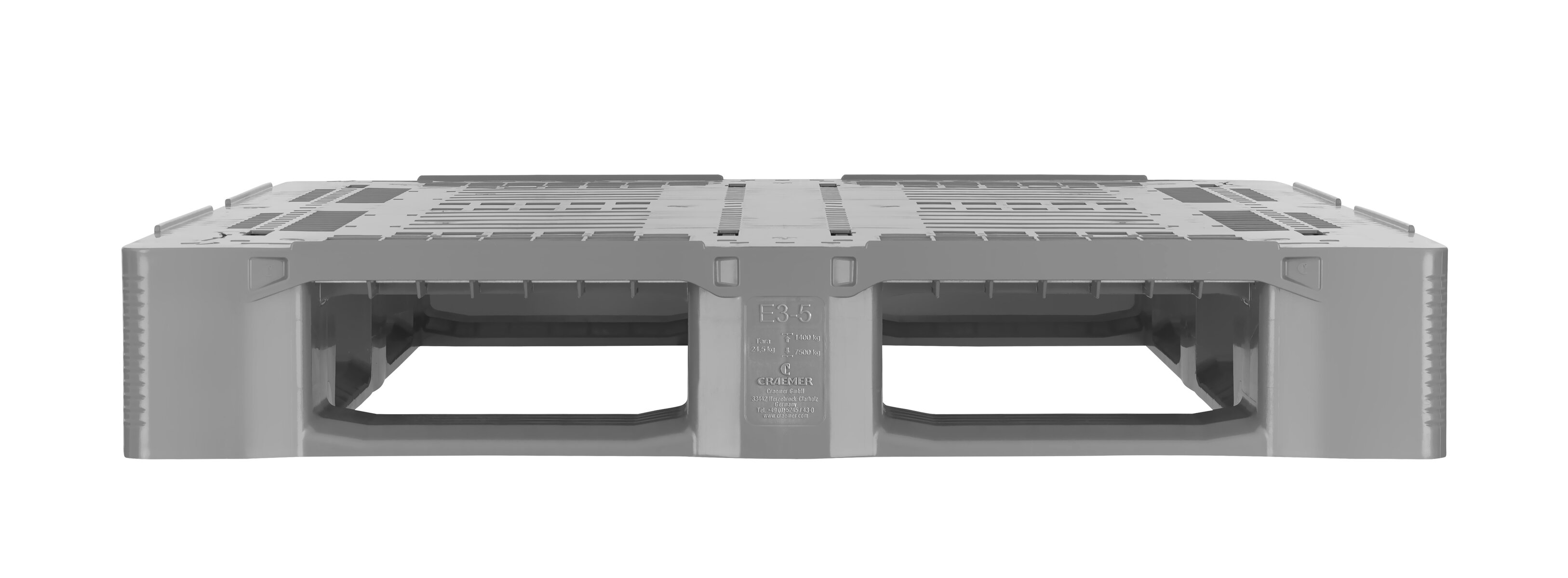

E3-5

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 140 St. Container 40': 300 St. Container 40' High Cube: 340 St.
Truck	MEGA Trailer: 468 St. Jumbo: 504 - 540 St.

Labeling options
Customized printing and numbering available on request depending on quantity. Position upon consultation.
