KUBO

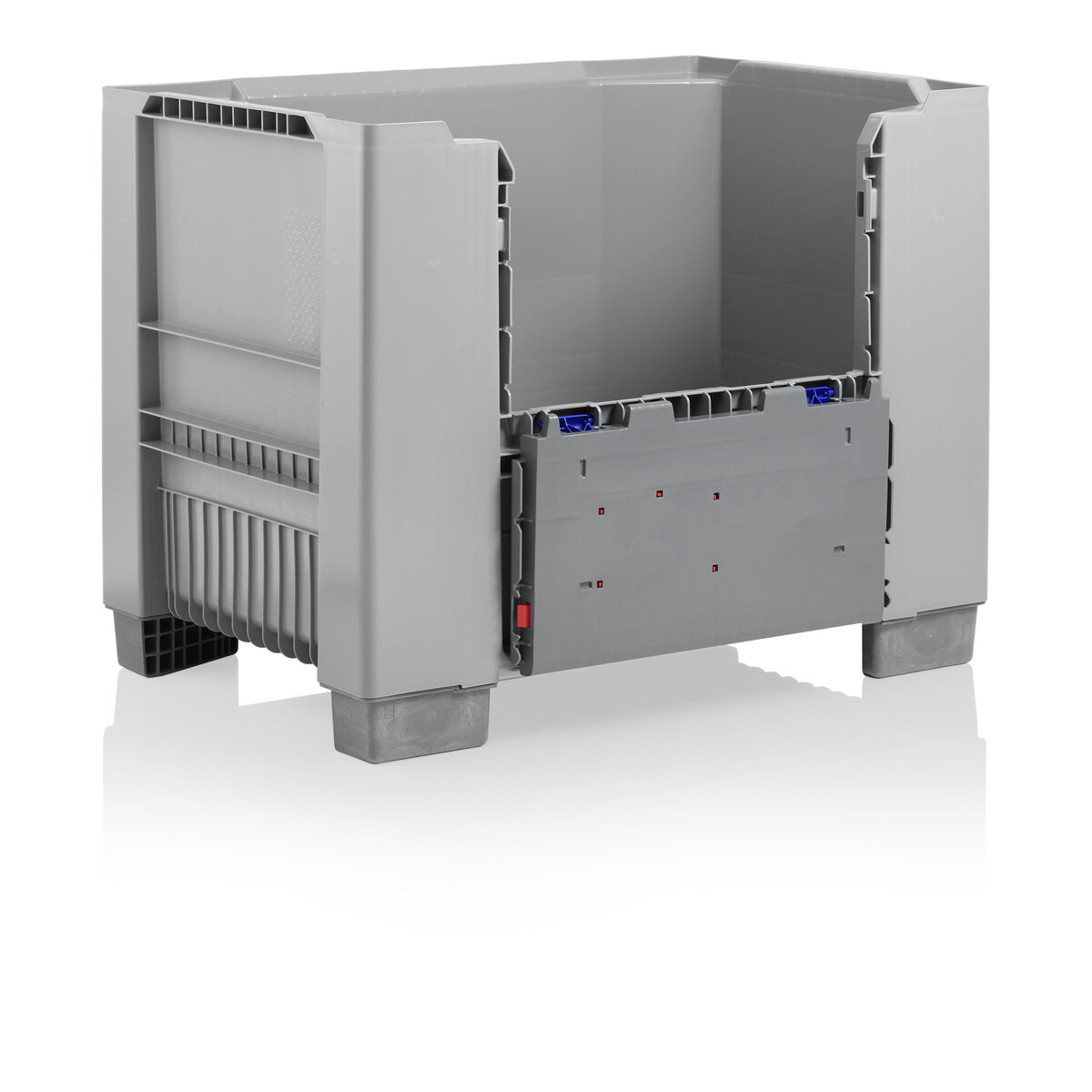

KUBO with opend front drop door

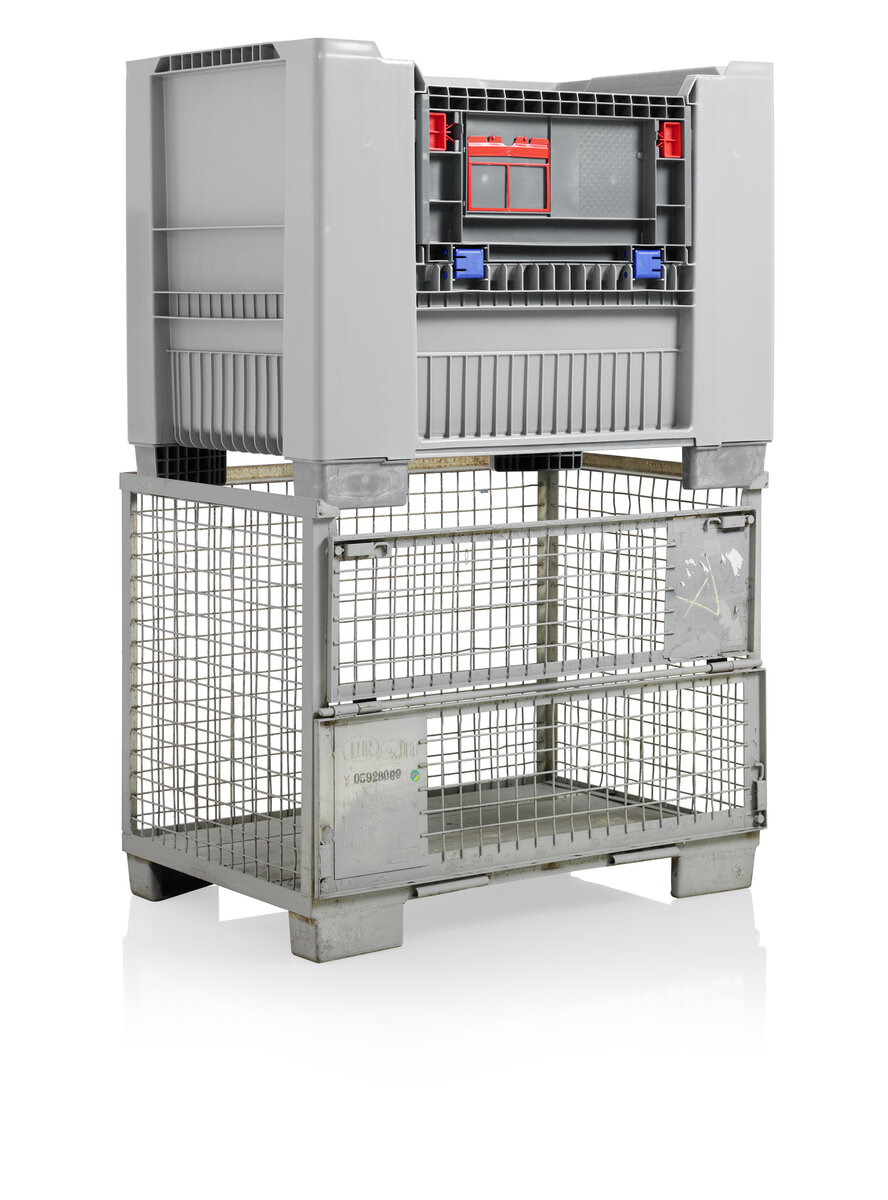

External dimensions compatible with the metal grid box (Gitterbox) enable use in existing systems

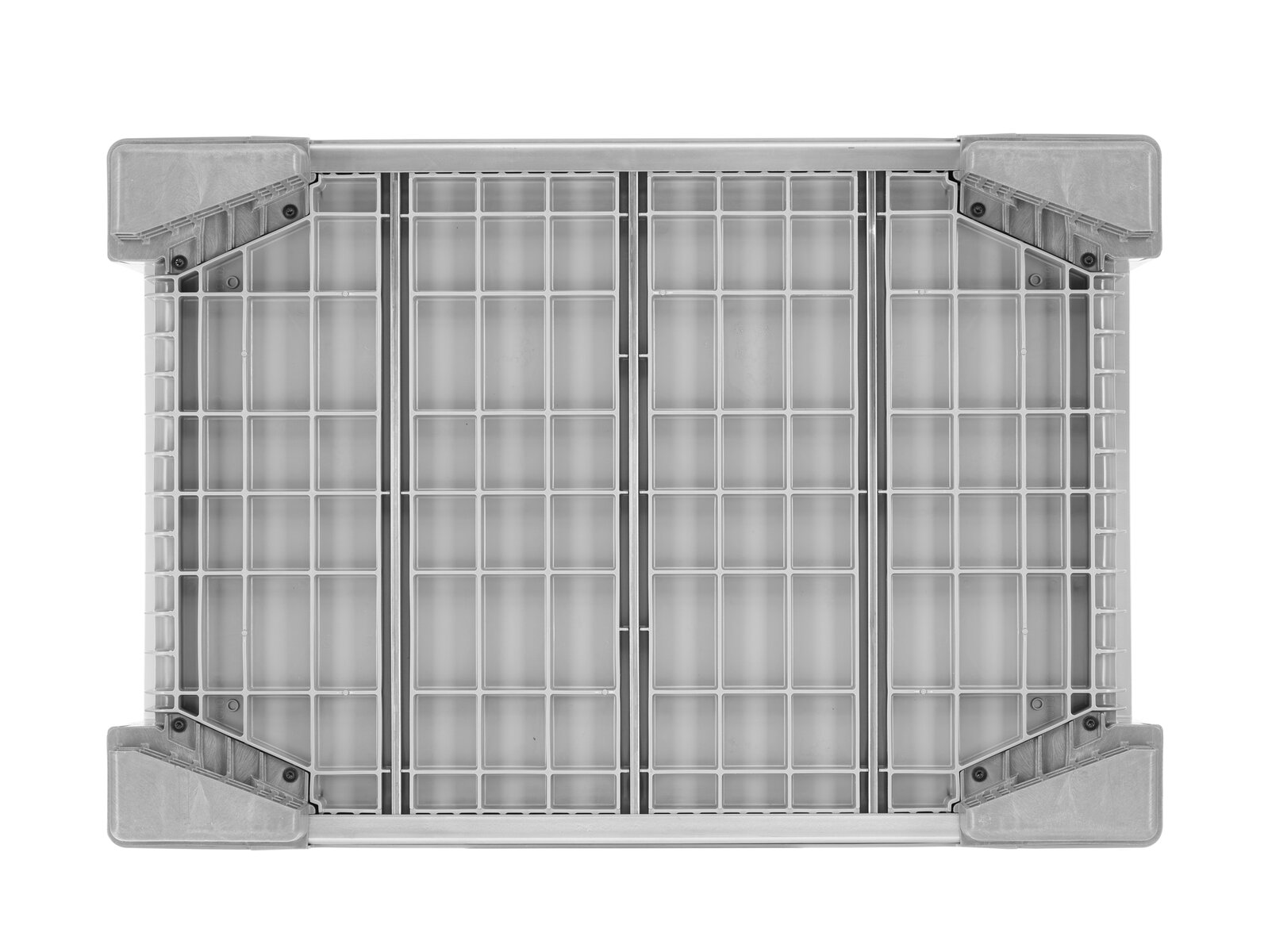

Bottom, equipped with steel reinforcements

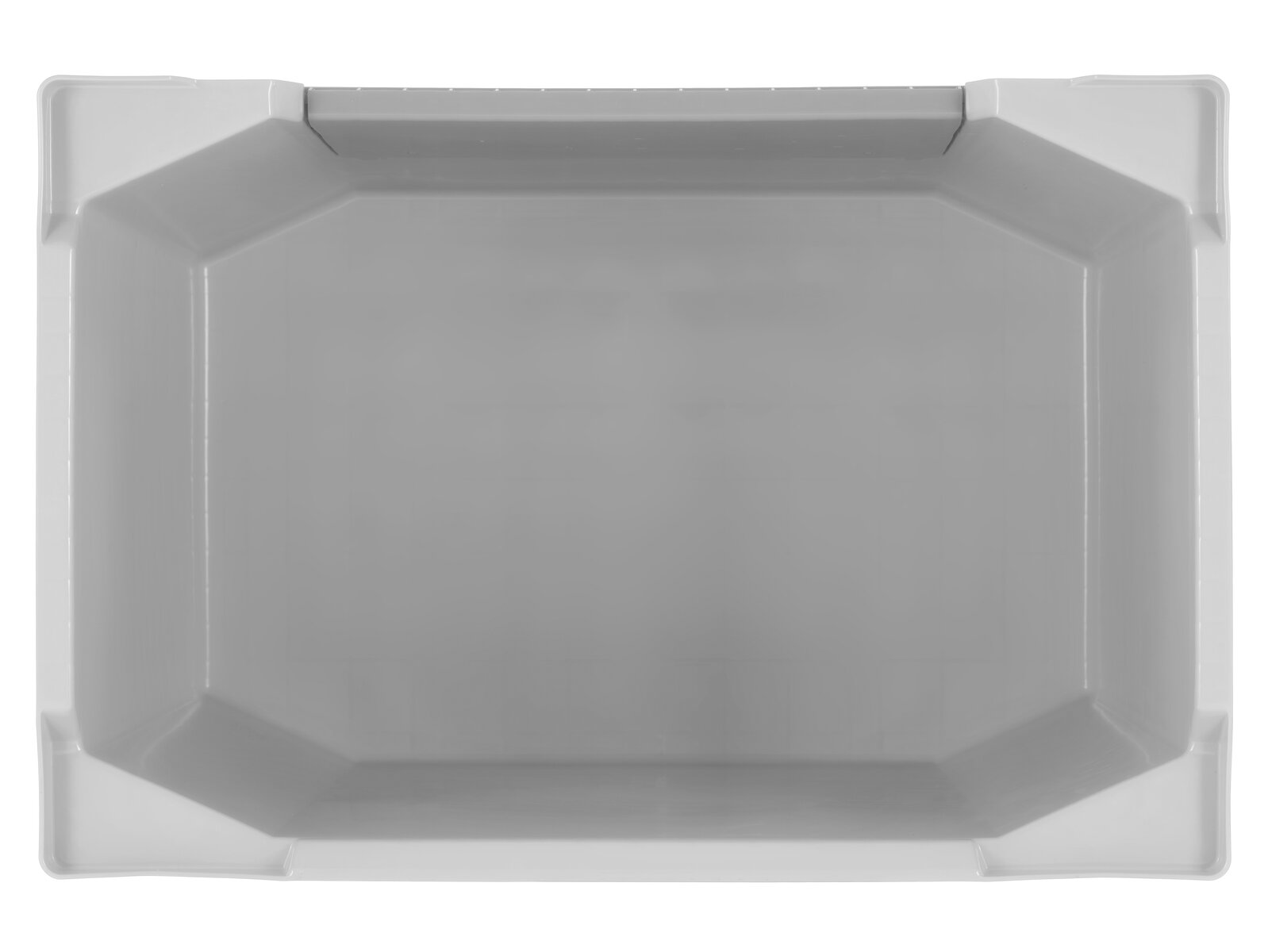

Smooth interior walls

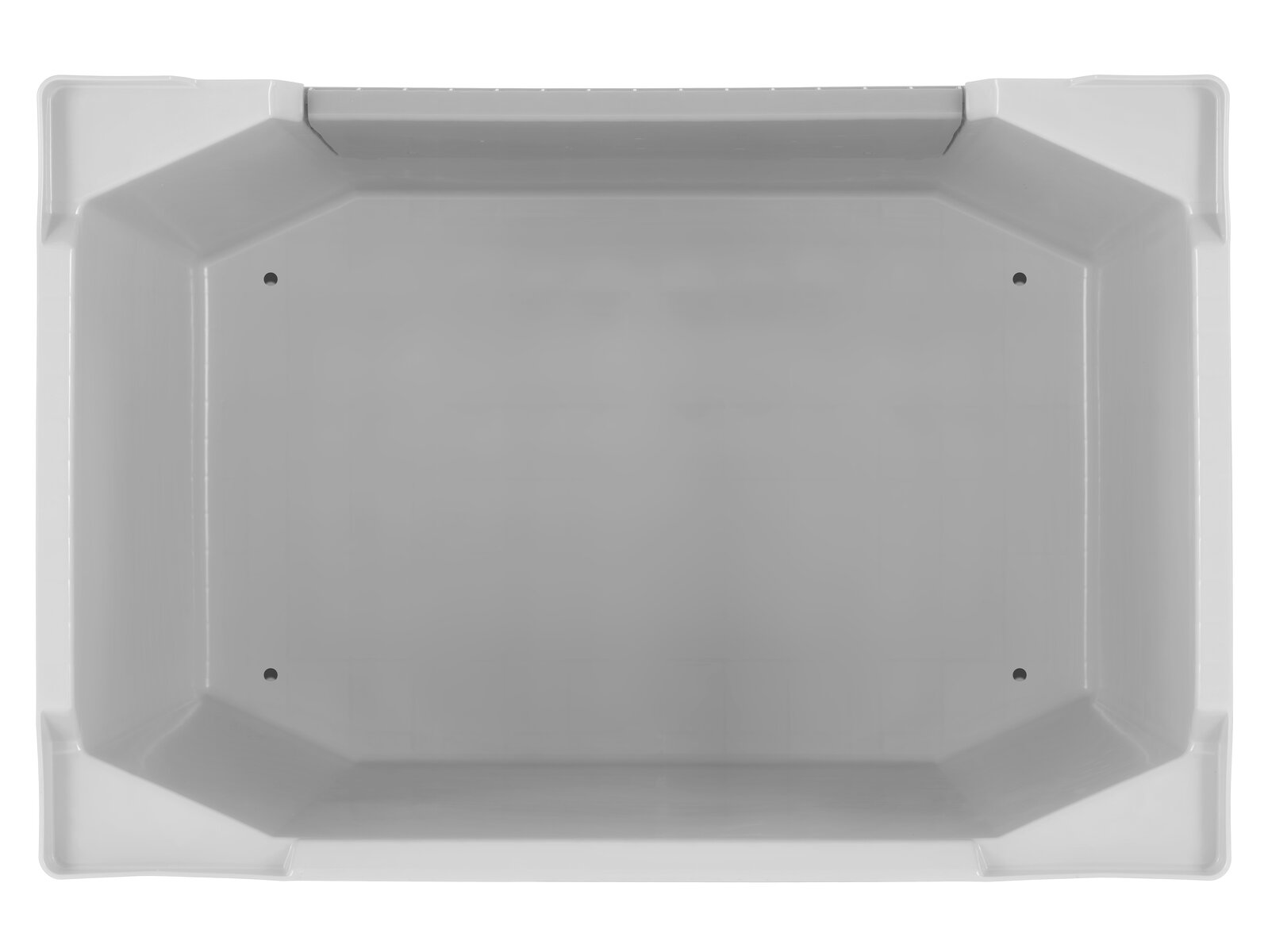

Interior with optional drain port

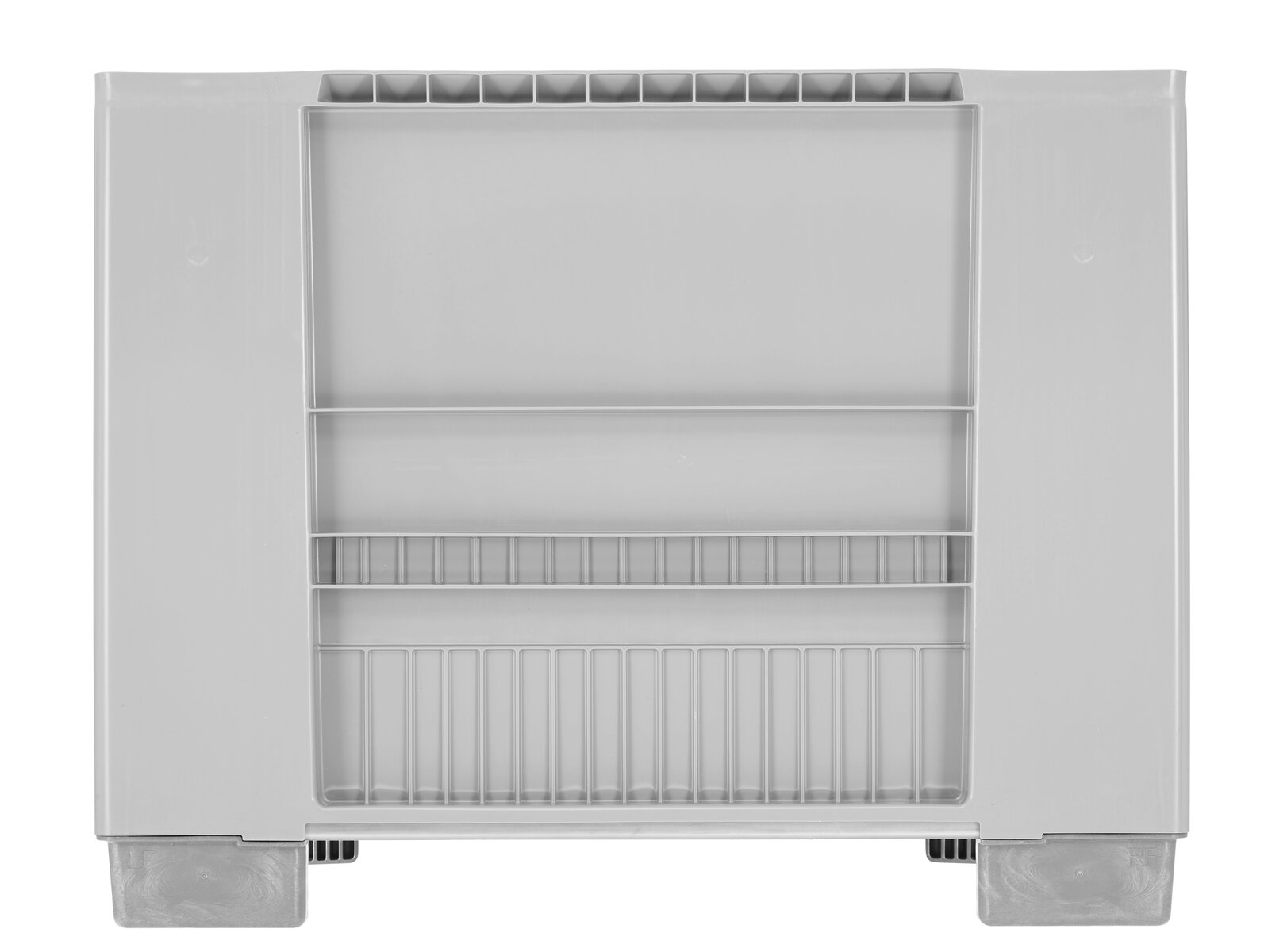

1240 mm back side

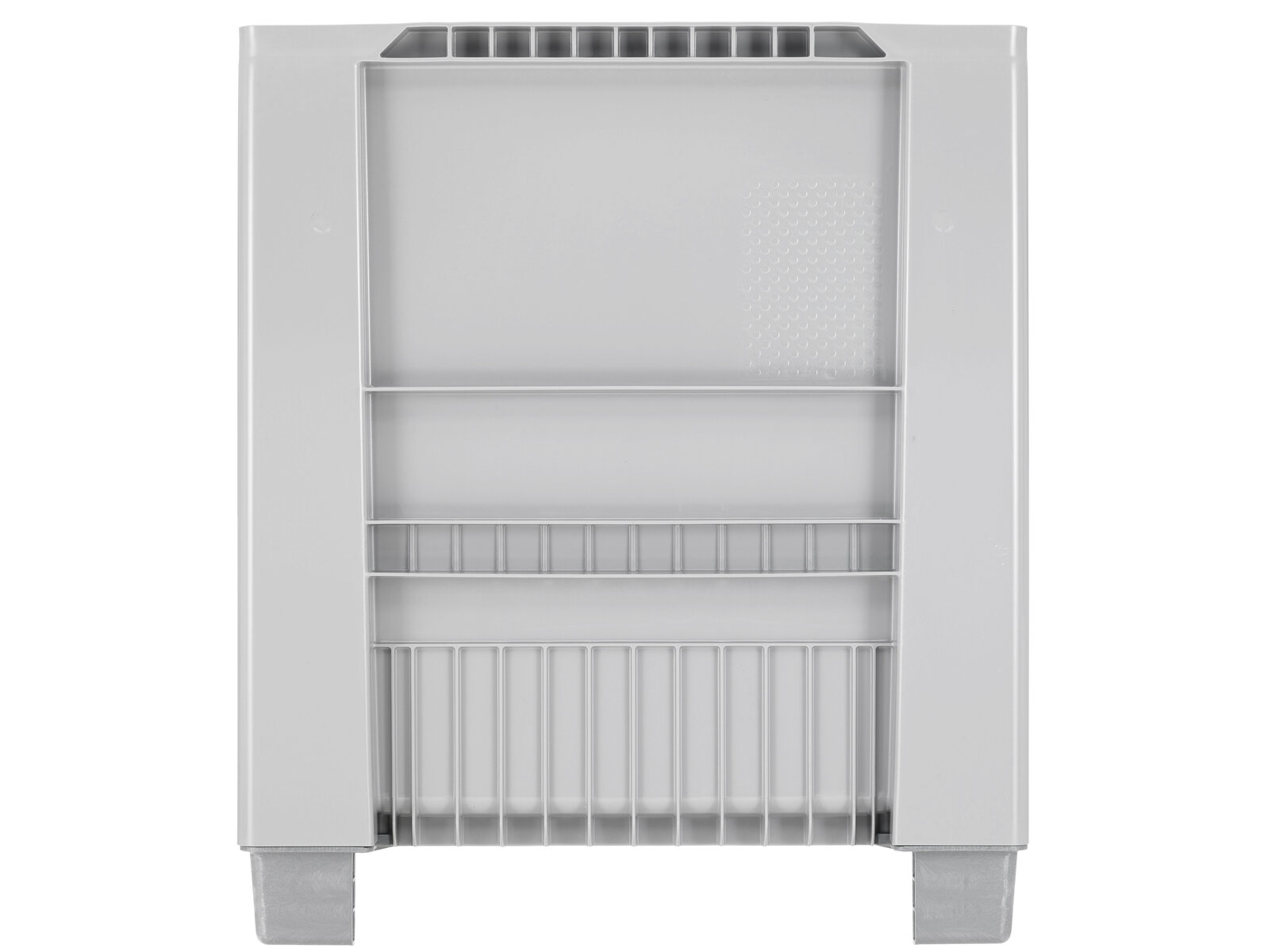

835 mm side view

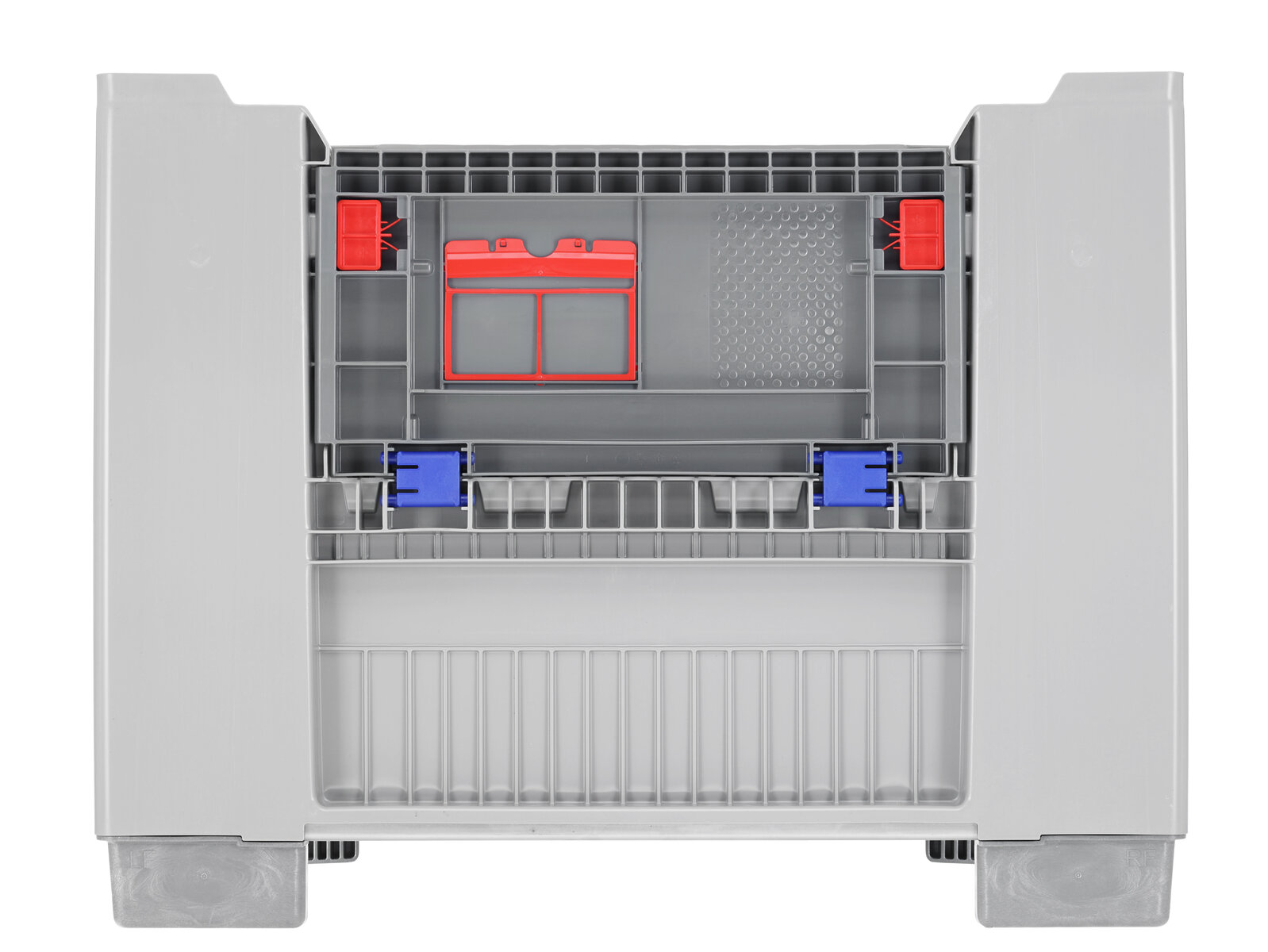

1240 mm front view

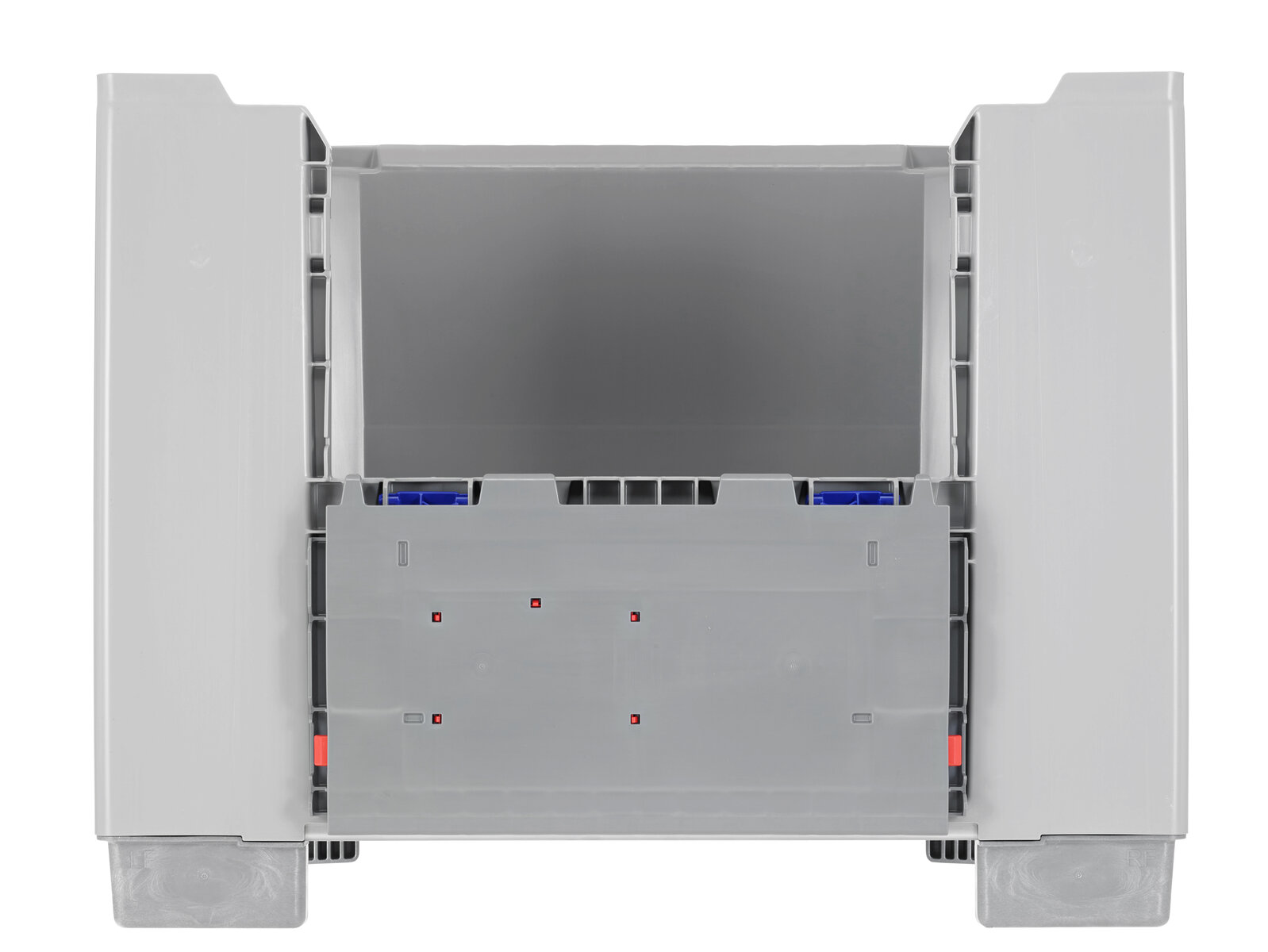

1240 mm front view with opend front drop door

KUBO

Compatible with Euro grid boxes
Corrosion-free, easy to clean
For loads of up to 2100 kg

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
82601811	51.5 kg	610 l	3,000 kg	1000 kg	2,100 kg	light grey	4 feet

Art. no.: 82601811
Colour: light grey
Volume: 610 l
Runners: 4 feet

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners	Amount
82601811	51.5 kg	610 l	3,000 kg	1000 kg	2,100 kg	light grey	4 feet

The KUBO is the ideal alternative to the Europool-DB-Europool grid box (Gitterbox), which is often used for heavy goods and components, and for all applications with high requirements. The new Craemer box is made of PE and is extremely robust due to its solid construction whilst boasting a low tare weight. The KUBO is easy to empty, clean and dry, guaranteed corrosion-free, versatile, suitable for pooling and repairable. The box runs maintenance- and trouble-free on all conventional conveyor systems and is also suitable for automated high rack warehouses. Due to its closed walls, the KUBO offers maximum protection of the contents and boasts enormous stability and excellent stackability. Thanks to the steel reinforcements in the base, the KUBO is particularly suitable for heavy loads. L-shaped steel profiles on the long sides of the four-way box ensure – in addition to the additional ribs above the entry openings – increased impact protection against forklift tines.

Characteristics:
- Body injection-moulded in one piece
- Large front drop door on the long side for easy loading and unloading.
- Four exchangeable corner columns along the entire height reinforce the container
- Ram protection through ribs and steel L-profiles on the sides, for increased resistance to forklift tines
- Five steel profiles in the base ensure high stability even under heavy loads
- External dimensions compatible with the metal grid box (Gitterbox) enable use in existing systems
- Smooth interior walls for easy emptying and cleaning
- Each corner is provided with one closed 10 mm floor drain port with drilling mark
- Runs maintenance- and trouble-free on all conventional conveyor systems and is also suitable for automated high rack warehouses
- Temperature resistant from -30 to +40 degrees Celsius, briefly up to +90 degrees, resistant to most chemicals and cleaning agents
- Stippled area for temporary adhesive labels
- External dimensions based on UIC 435-3
Options:
- One open 10 mm floor drain port at each corner
- RFID Transponder
- Closed walls without front drop door
- Individual printing
- Documents holder on the drop door

Container	Container 20': 0 Pcs. Container 40': 0 Pcs. Container 40' High Cube: 0 Pcs.
Truck	MEGA Trailer: 96 Pcs. Jumbo: 108 Pcs.

Customised printing and numbering available on request depending on quantity. Position upon consultation.

Description
The KUBO is the ideal alternative to the Europool-DB-Europool grid box (Gitterbox), which is often used for heavy goods and components, and for all applications with high requirements. The new Craemer box is made of PE and is extremely robust due to its solid construction whilst boasting a low tare weight. The KUBO is easy to empty, clean and dry, guaranteed corrosion-free, versatile, suitable for pooling and repairable. The box runs maintenance- and trouble-free on all conventional conveyor systems and is also suitable for automated high rack warehouses. Due to its closed walls, the KUBO offers maximum protection of the contents and boasts enormous stability and excellent stackability. Thanks to the steel reinforcements in the base, the KUBO is particularly suitable for heavy loads. L-shaped steel profiles on the long sides of the four-way box ensure – in addition to the additional ribs above the entry openings – increased impact protection against forklift tines.

Characteristics:
- Body injection-moulded in one piece
- Large front drop door on the long side for easy loading and unloading.
- Four exchangeable corner columns along the entire height reinforce the container
- Ram protection through ribs and steel L-profiles on the sides, for increased resistance to forklift tines
- Five steel profiles in the base ensure high stability even under heavy loads
- External dimensions compatible with the metal grid box (Gitterbox) enable use in existing systems
- Smooth interior walls for easy emptying and cleaning
- Each corner is provided with one closed 10 mm floor drain port with drilling mark
- Runs maintenance- and trouble-free on all conventional conveyor systems and is also suitable for automated high rack warehouses
- Temperature resistant from -30 to +40 degrees Celsius, briefly up to +90 degrees, resistant to most chemicals and cleaning agents
- Stippled area for temporary adhesive labels
- External dimensions based on UIC 435-3
Options:
- One open 10 mm floor drain port at each corner
- RFID Transponder
- Closed walls without front drop door
- Individual printing
- Documents holder on the drop door

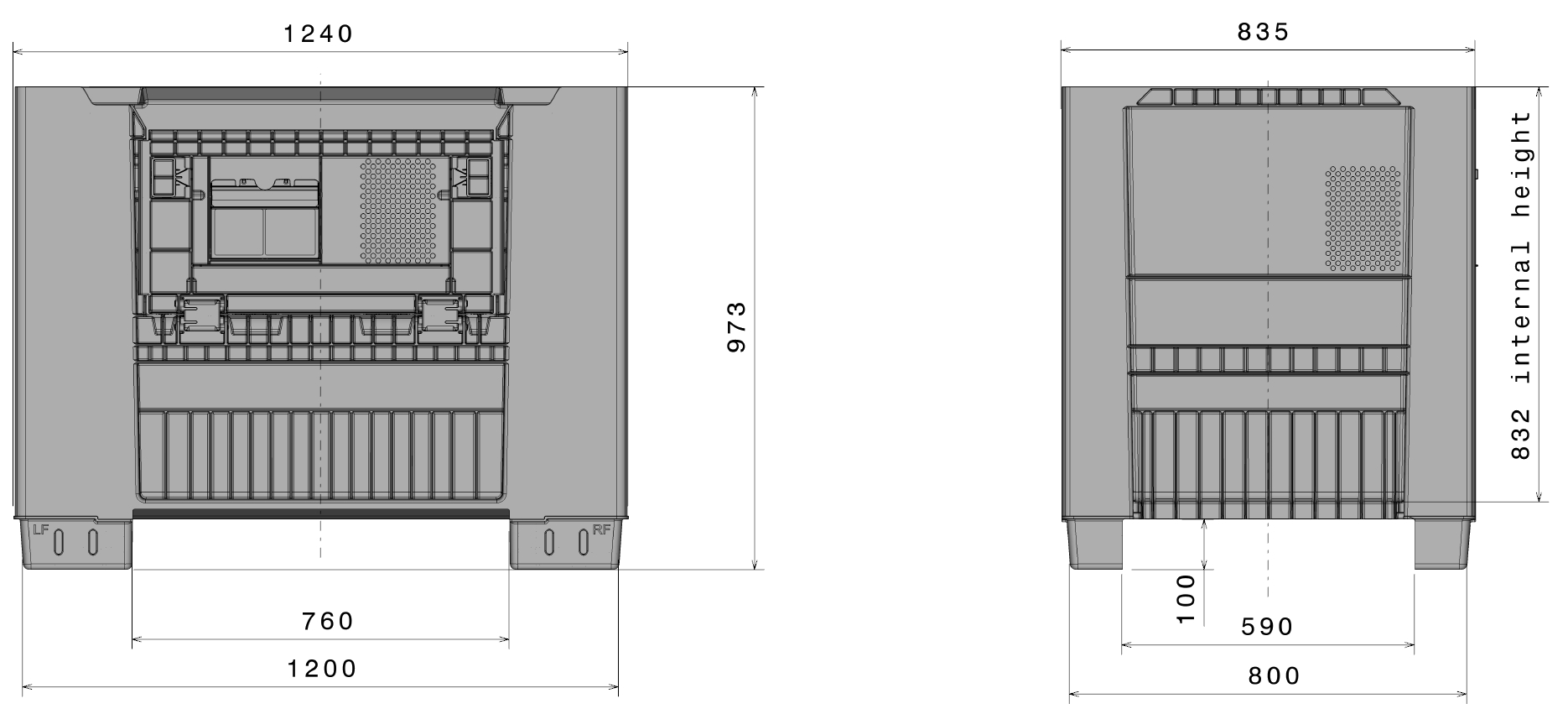

Technical drawings

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 0 Pcs. Container 40': 0 Pcs. Container 40' High Cube: 0 Pcs.
Truck	MEGA Trailer: 96 Pcs. Jumbo: 108 Pcs.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
