KUBO

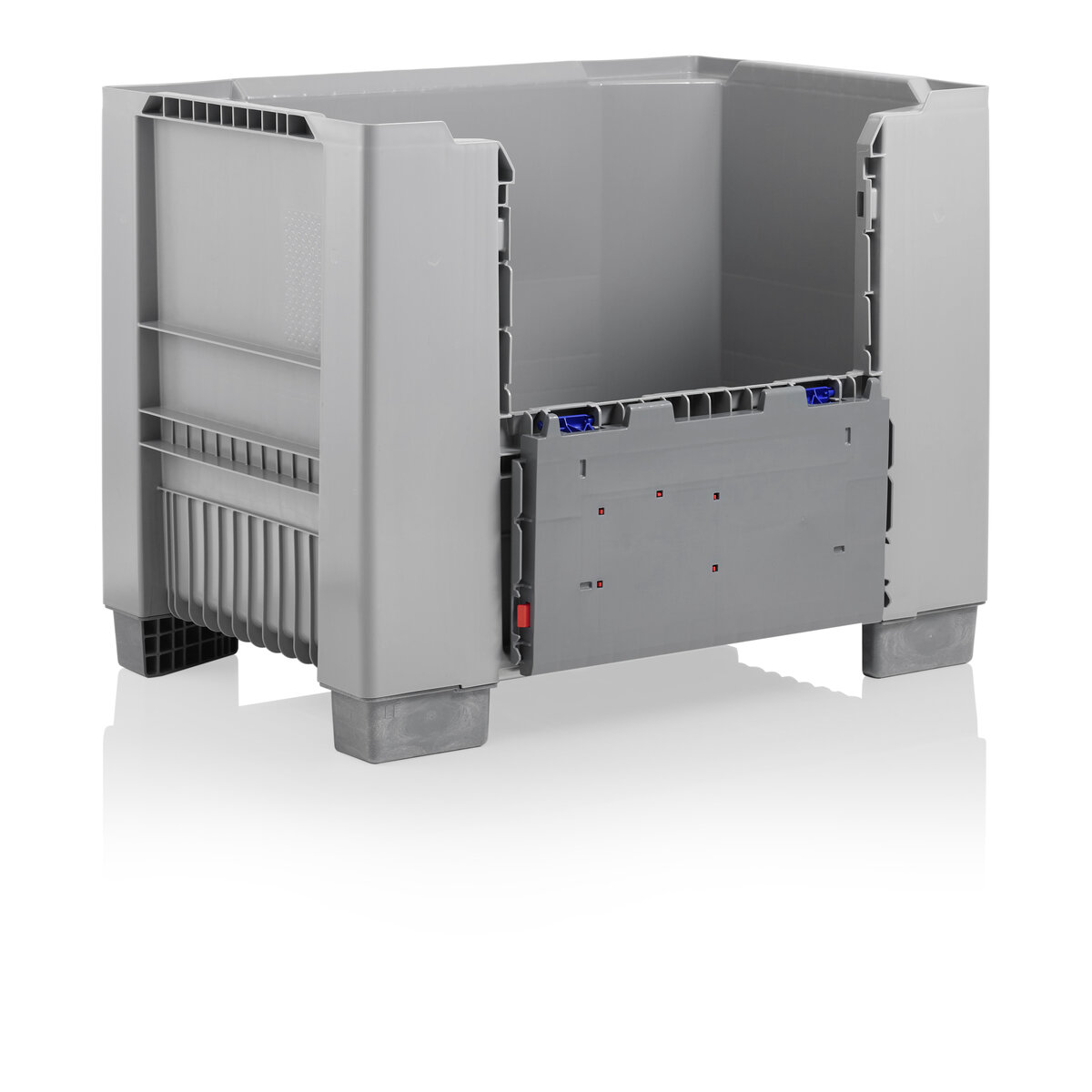

KUBO with opend front drop door
External dimensions compatible with the metal grid box (Gitterbox) enable use in existing systems
Bottom, equipped with steel reinforcements

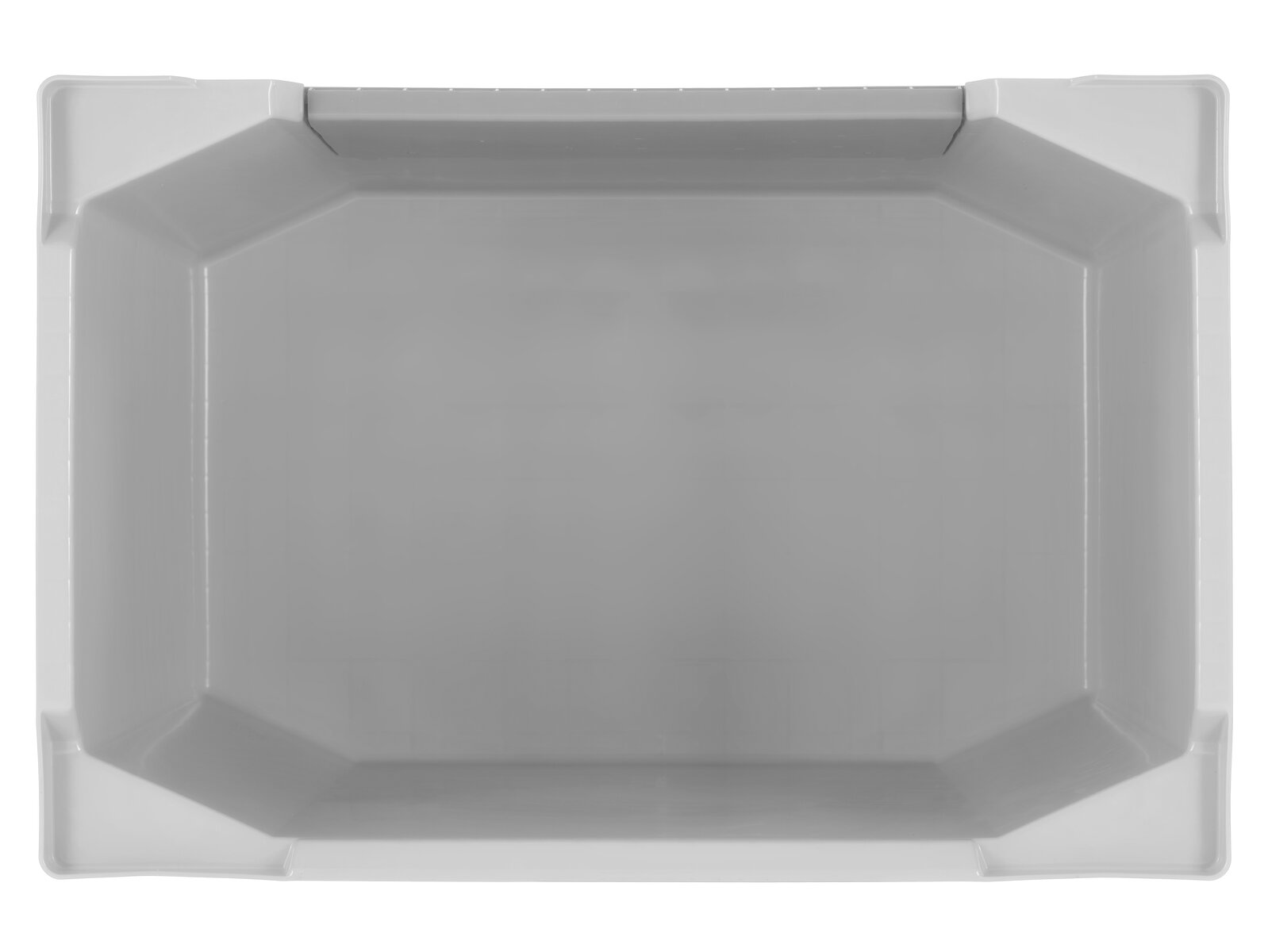

Smooth interior walls

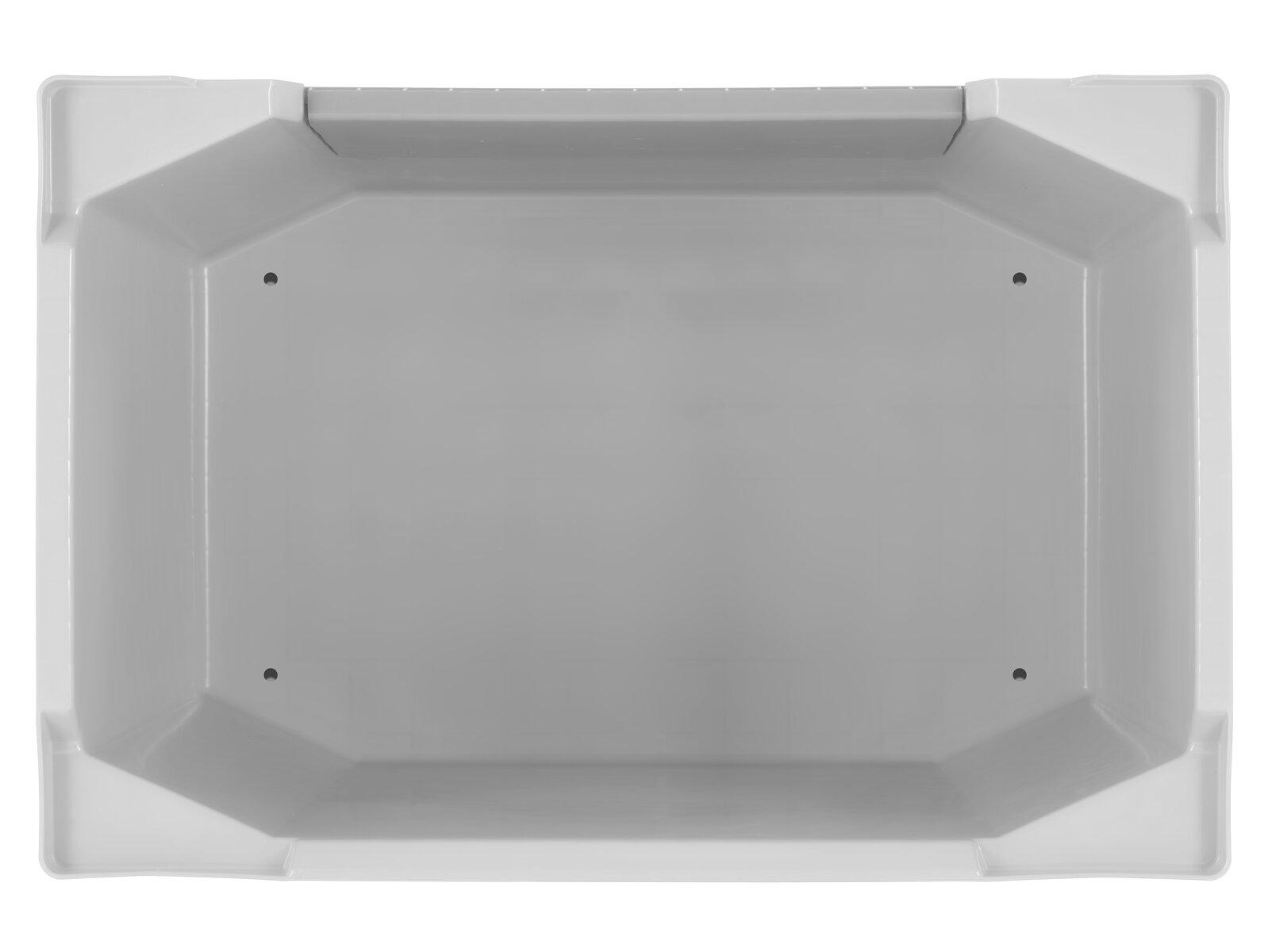

Interior with optional drain hole
48.8" back side
32.8" side view
48.8" front view
48.8" front view with opend front drop door

KUBO

Compatible with Euro grid boxes
Corrosion-free, easy to clean
For loads of up to 4650 lbs

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Color	Runners
82601811	113.5 lbs	160 gal	6,650 lbs	2200 lbs	4,650 lbs	light gray	4 feet

Art. no.: 82601811
Color: light gray
Volume: 160 gal
Runners: 4 feet

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Color	Runners	Amount
82601811	113.5 lbs	160 gal	6,650 lbs	2200 lbs	4,650 lbs	light gray	4 feet

The Craemer KUBO is an ideal solution for handling heavy goods or components and the perfect plastic alternative to the well-known steel grid box pallets. These sturdy plastic bulk bins are made from high-quality PE, boast a solid construction and extreme robustness whilst benefiting from a low tare weight. With their solid walls and steel reinforcements in the base, the KUBO plastic bulk bins offer highest levels of goods protection, great stability and stackability. Both the L-shaped steel profiles on the long sides of the four-way bulk containers as well as extra ribbing above the entry openings ensure increased impact protection against forklift tines. The KUBO is guaranteed to be corrosion-free and runs maintenance- and error-free on conventional conveyor systems and even in automated high-rack warehouses. Further benefits of the KUBO plastic bulk bins are their versatility and suitability for pooling.

Characteristics:
- Body injection-molded in one shot
- Large front drop door on the long side for easy loading and unloading
- Four exchangeable corner columns along the entire height reinforce the container
- Impact protection through ribs and steel L-profiles on the sides, for increased resistance to forklift tines
- Five steel profiles in the base ensure high stability even under heavy loads
- External dimensions compatible with the steel grid box pallets enable use in existing systems (European standard Gitterbox)
- External dimensions based on UIC 435-3
- Smooth interior walls for easy emptying and cleaning
- Each corner is provided with one closed 0.4 inch (10 mm) floor drain port with drilling mark
- Runs maintenance- and trouble-free on all conventional conveyor systems and is also suitable for automated edge rack warehouses
- Temperature resistant from -22 to +104 °F, briefly up to +194 °F (-30 to +40 °C, briefly +90 °C), resistant to most chemicals and cleaning agents
- Textured area for temporary adhesive labels
Options:
- One open 0.4 inch (10 mm) floor drain port at each corner
- RFID Transponder
- Version without front door has entirely solid walls
- Individual printing
- Document holder on the drop door

Container	Container 20': 0 Pcs. Container 40': 0 Pcs. Container 40' High Cube: 0 Pcs.
Truck	MEGA Trailer: 96 Pcs. Jumbo: 108 Pcs.

Customized printing and numbering available on request depending on quantity. Position upon consultation.

Description
The Craemer KUBO is an ideal solution for handling heavy goods or components and the perfect plastic alternative to the well-known steel grid box pallets. These sturdy plastic bulk bins are made from high-quality PE, boast a solid construction and extreme robustness whilst benefiting from a low tare weight. With their solid walls and steel reinforcements in the base, the KUBO plastic bulk bins offer highest levels of goods protection, great stability and stackability. Both the L-shaped steel profiles on the long sides of the four-way bulk containers as well as extra ribbing above the entry openings ensure increased impact protection against forklift tines. The KUBO is guaranteed to be corrosion-free and runs maintenance- and error-free on conventional conveyor systems and even in automated high-rack warehouses. Further benefits of the KUBO plastic bulk bins are their versatility and suitability for pooling.

Characteristics:
- Body injection-molded in one shot
- Large front drop door on the long side for easy loading and unloading
- Four exchangeable corner columns along the entire height reinforce the container
- Impact protection through ribs and steel L-profiles on the sides, for increased resistance to forklift tines
- Five steel profiles in the base ensure high stability even under heavy loads
- External dimensions compatible with the steel grid box pallets enable use in existing systems (European standard Gitterbox)
- External dimensions based on UIC 435-3
- Smooth interior walls for easy emptying and cleaning
- Each corner is provided with one closed 0.4 inch (10 mm) floor drain port with drilling mark
- Runs maintenance- and trouble-free on all conventional conveyor systems and is also suitable for automated edge rack warehouses
- Temperature resistant from -22 to +104 °F, briefly up to +194 °F (-30 to +40 °C, briefly +90 °C), resistant to most chemicals and cleaning agents
- Textured area for temporary adhesive labels
Options:
- One open 0.4 inch (10 mm) floor drain port at each corner
- RFID Transponder
- Version without front door has entirely solid walls
- Individual printing
- Document holder on the drop door
Technical drawings

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 0 Pcs. Container 40': 0 Pcs. Container 40' High Cube: 0 Pcs.
Truck	MEGA Trailer: 96 Pcs. Jumbo: 108 Pcs.

Labeling options
Customized printing and numbering available on request depending on quantity. Position upon consultation.
