CR1

The CR1 Euro pallet is firmly established as a multi-use pallet, especially in pooling applications. The sturdy CR1 heavy-duty plastic pallet is optionally available with or without reinforcement profiles and has delivered top performances in internal logistics processes of various industries, including the areas of machine construction, automation, metal processing, and tool making. With integrated profiles, the high performance of the pallet is met with a very high load-bearing capacity for heavy-duty applications. Without steel reinforcements, the CR1 pallet is ideal for applications that do not require the extreme load-bearing capacity of the metal-reinforced version, but high performance is nonetheless essential.

Characteristics:

Available with 3 runners
Ideal for heavy-duty applications (with reinforcement profiles)
Exceptional dimensional stability enables error-free use on roller conveyors and in automated high rack warehouses
Chamfered edges on both sides of all runners for optimal handling with forklift trucks
Palgrip^® anti-slip strips on the top deck

Options:

Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 1,750kg in high rack
Rims: without, 7mm
Lid
RFID transponder

Product enquiry

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Palgrip® anti-slip strips on the top deck
83230700	16 kg	5,000 kg	1,250 kg	1,000 kg	red brown / light blue	3, unwelded		●
83230800	16 kg	5,000 kg	1,250 kg	1,000 kg	grey / blue	3, unwelded		●
83230801	19 kg	7,500 kg	1,750 kg	1,750 kg	dark grey / blue	3, unwelded	3	●
83232230	19 kg	7,500 kg	1,750 kg	1,750 kg	black / light blue	3, unwelded	3	●
83232242	16 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	3, unwelded		●
83238830	19 kg	7,500 kg	1,750 kg	1,750 kg	basalt grey / blue	3, unwelded	3	●
83239800	16 kg	5,000 kg	1,250 kg	1,000 kg	basalt grey / blue	3, unwelded		●

Further links:

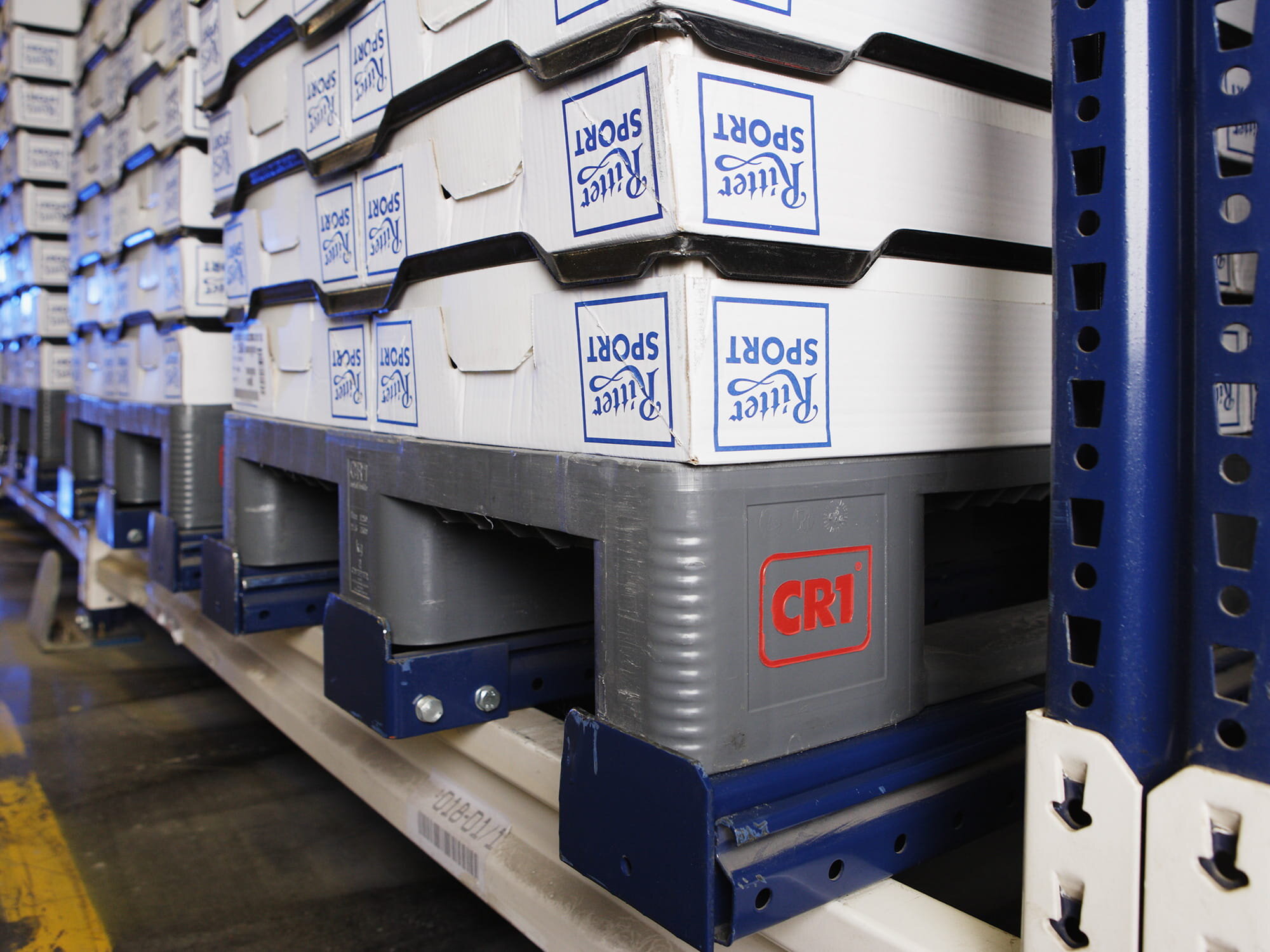

Case Study Ritter Sport 2010

Case Study Safe beverage handling 2013

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Palgrip® anti-slip strips on the top deck
83230700	16 kg	5,000 kg	1,250 kg	1,000 kg	red brown / light blue	3, unwelded		●
83230800	16 kg	5,000 kg	1,250 kg	1,000 kg	grey / blue	3, unwelded		●
83230801	19 kg	7,500 kg	1,750 kg	1,750 kg	dark grey / blue	3, unwelded	3	●
83232230	19 kg	7,500 kg	1,750 kg	1,750 kg	black / light blue	3, unwelded	3	●
83232242	16 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	3, unwelded		●
83238830	19 kg	7,500 kg	1,750 kg	1,750 kg	basalt grey / blue	3, unwelded	3	●
83239800	16 kg	5,000 kg	1,250 kg	1,000 kg	basalt grey / blue	3, unwelded		●

Art. no.: 83230700
Colour: red brown / light blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83230800
Colour: grey / blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83230801
Colour: dark grey / blue
Runners: 3, unwelded
Reinforcement profiles: 3
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83232230
Colour: black / light blue
Runners: 3, unwelded
Reinforcement profiles: 3
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83232242
Colour: black / light blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83238830
Colour: basalt grey / blue
Runners: 3, unwelded
Reinforcement profiles: 3
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83239800
Colour: basalt grey / blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Technical Data *¹

Dimensions (mm)	1200 x 800 x 160 mm
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C
Material *2	PE

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Palgrip® anti-slip strips on the top deck
83230700	16 kg	5,000 kg	1,250 kg	1,000 kg	red brown / light blue	3, unwelded		●
83230800	16 kg	5,000 kg	1,250 kg	1,000 kg	grey / blue	3, unwelded		●
83230801	19 kg	7,500 kg	1,750 kg	1,750 kg	dark grey / blue	3, unwelded	3	●
83232230	19 kg	7,500 kg	1,750 kg	1,750 kg	black / light blue	3, unwelded	3	●
83232242	16 kg	5,000 kg	1,250 kg	1,000 kg	black / light blue	3, unwelded		●
83238830	19 kg	7,500 kg	1,750 kg	1,750 kg	basalt grey / blue	3, unwelded	3	●
83239800	16 kg	5,000 kg	1,250 kg	1,000 kg	basalt grey / blue	3, unwelded		●

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

Dynamic load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

Technical Data *¹

Art. no.: 83230700
Colour: red brown / light blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83230800
Colour: grey / blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83230801
Colour: dark grey / blue
Runners: 3, unwelded
Reinforcement profiles: 3
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83232230
Colour: black / light blue
Runners: 3, unwelded
Reinforcement profiles: 3
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83232242
Colour: black / light blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83238830
Colour: basalt grey / blue
Runners: 3, unwelded
Reinforcement profiles: 3
Palgrip® anti-slip strips on the top deck: Yes

Art. no.: 83239800
Colour: basalt grey / blue
Runners: 3, unwelded
Palgrip® anti-slip strips on the top deck: Yes
Technical drawings

CR1

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 192 Pcs. Container 40': 390 Pcs. Container 40' High Cube: 440 Pcs.
Truck	MEGA Trailer: 612 Pcs. Jumbo: 684 Pcs.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
