SL1

The SL1 Euro pallet is great for use as an intermediate pallet for order picking and distribution of goods, as it has a low height of just 120 millimetres. The three-runner reusable pallet is injection-moulded in one-piece from high-quality materials, easy to handle and - despite its minimal weight of just 7kg - very robust in daily use.

Characteristics:

Available with 3 runners
Ideal for use as a robust intermediate pallet
Low tare weight of just 7kg

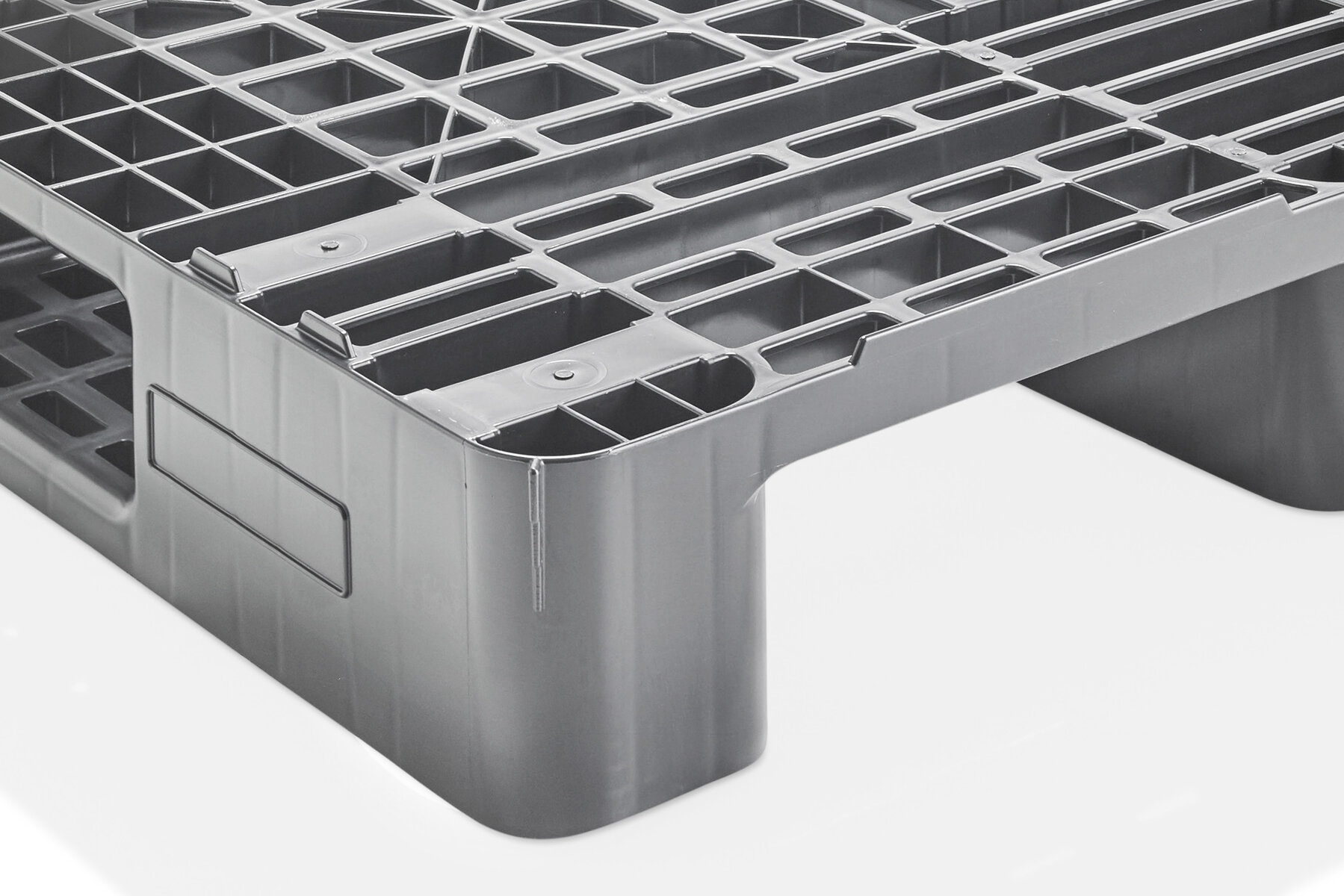

Equipped with corner lugs for anchoring shrink wrap film

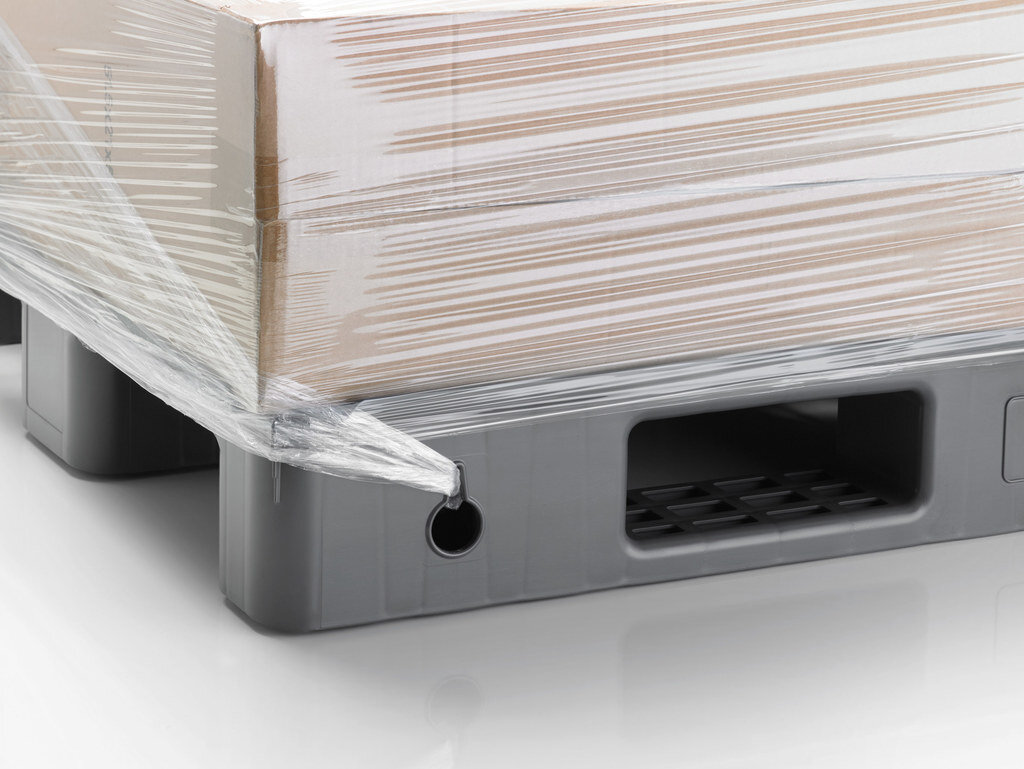

Integrated film slot in one of the pallet feet

Options:

Rims: without, 7mm or 12mm

Product enquiry

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Colour	Runners	Rim (mm)
83259800	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded
83259801	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded	7 mm
83259802	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded	12 mm

Further links:

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Colour	Runners	Rim (mm)
83259800	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded
83259801	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded	7 mm
83259802	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded	12 mm

Technical information *¹

Internal Dimensions (mm)	1200 x 800 x 120
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Colour	Runners	Rim (mm)
83259800	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded
83259801	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded	7 mm
83259802	7 kg	2,000 kg	1,000 kg	basalt grey	3, unwelded	12 mm

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

Dynamic load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

Technical drawings

SL1

SL1 7 mm

SL1 12 mm

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 248 Pcs. Container 40': 504 Pcs. Container 40' High Cube: 558 Pcs. Conventional trailer 45’ high cube container: 680 Pcs.
Truck	MEGA Trailer: 816 Pcs. Jumbo: 912 Pcs.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical drawings

Art. no.: 83250200
Colour: black
Runners: 3, unwelded
Rim (mm):

Art. no.: 83250201
Colour: black
Runners: 3, unwelded
Rim (mm):7 mm

Art. no.: 83250202
Colour: black
Runners: 3, unwelded
Rim (mm):12 mm

Art. no.: 83259800
Colour: basalt grey
Runners: 3, unwelded
Rim (mm):

Art. no.: 83259801
Colour: basalt grey
Runners: 3, unwelded
Rim (mm):7 mm

Art. no.: 83259802
Colour: basalt grey
Runners: 3, unwelded
Rim (mm):12 mm
