Transport and stacking boxes

The transport and stacking boxes are an indispensible part of smooth logistics in the food processing industry. They facilitate easy handling and reliable, hygienic transport processes.

Characteristics:

Available in various sizes and versions
Made from pure PE
High load bearing capacity and impact resistance
Nestable (40 l, 80 l)
Stackable (25 l, 50 l, 55 l)
Resistant to most common chemicals and cleaning agents
Easy to clean thanks to smooth inner and outer walls

Watch video

Data sheet (PDF)

Art.-No.	Description	External Dimensions L × W × H (mm)	Internal Dimensions L × W × H (mm)	Weight (kg)	Volume (l)	Material	Payload (kg)	Load capacity (kg) Extra Load	Stacking height (mm) when nested	Stacking height (mm) when stacked	Colour
81221010	Stacking box 25 l, stackable	475 x 340 x 220	410 x 300 x 215	1.6 kg	25 l	PE	25 kg	210 kg		197 mm	white

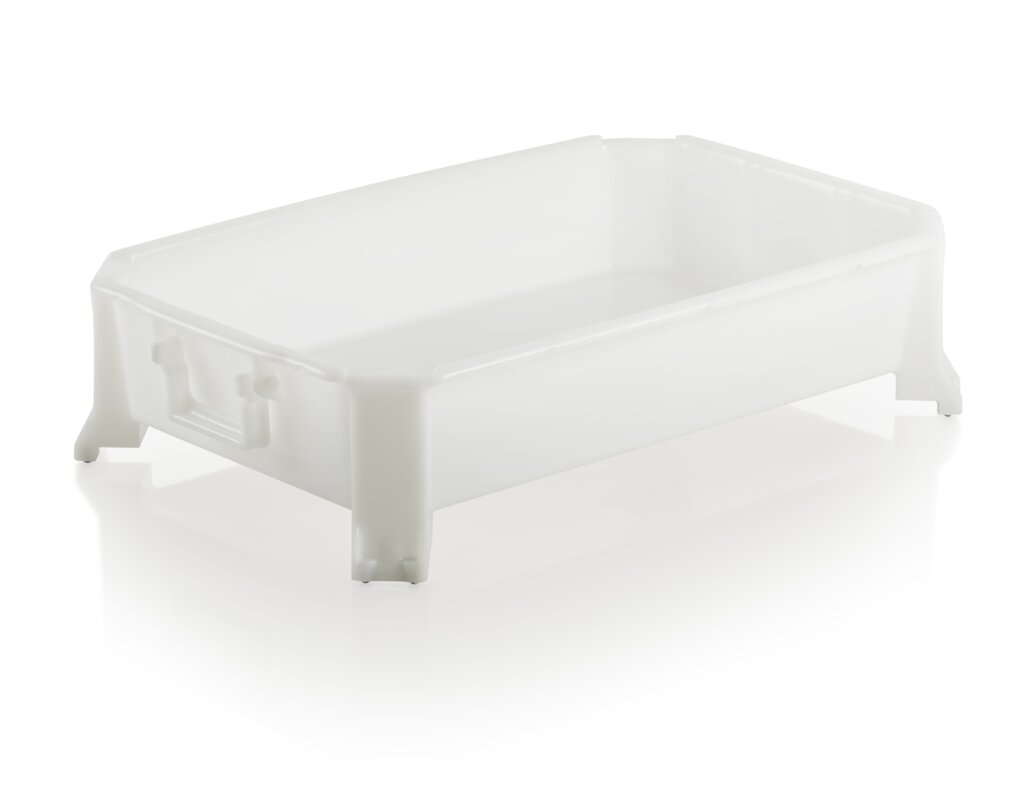

81211100	Stacking box 55 l, easy grip all around the top, stackable	750 x 445 x 200	700 x 400 x 196	2.6 kg	55 l	PE	55 kg	230 kg		190 mm	white
81151010	Transport trough 40 l, easy grip all around the top, stackable	730 x 480 x 180	650 x 410 x 173	1.8 kg	40 l	PE	40 kg		16 mm		white
81201010	Transport box 80 l, easy grip all around the top, stackable	760 x 500 x 320	680 x 445 x 295	3.5 kg	80 l	PE	80 kg		65 mm		white

Product enquiry

Art.-No.	Description	External Dimensions L × W × H (mm)	Internal Dimensions L × W × H (mm)	Weight (kg)	Volume (l)	Material	Payload (kg)	Load capacity (kg) Extra Load	Stacking height (mm) when nested	Stacking height (mm) when stacked	Colour
81221010	Stacking box 25 l, stackable	475 x 340 x 220	410 x 300 x 215	1.6 kg	25 l	PE	25 kg	210 kg		197 mm	white
81211100	Stacking box 55 l, easy grip all around the top, stackable	750 x 445 x 200	700 x 400 x 196	2.6 kg	55 l	PE	55 kg	230 kg		190 mm	white
81151010	Transport trough 40 l, easy grip all around the top, stackable	730 x 480 x 180	650 x 410 x 173	1.8 kg	40 l	PE	40 kg		16 mm		white
81201010	Transport box 80 l, easy grip all around the top, stackable	760 x 500 x 320	680 x 445 x 295	3.5 kg	80 l	PE	80 kg		65 mm		white

Do you have any questions?

Telephone: +44 1952 6078-00

E-Mail: info(at)craemer.com

Technical data*1

Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art.-No.	Description	External Dimensions L × W × H (mm)	Internal Dimensions L × W × H (mm)	Weight (kg)	Volume (l)	Material	Payload (kg)	Load capacity (kg) Extra Load	Stacking height (mm) when nested	Stacking height (mm) when stacked	Colour
81221010	Stacking box 25 l, stackable	475 x 340 x 220	410 x 300 x 215	1.6 kg	25 l	PE	25 kg	210 kg		197 mm	white
81211100	Stacking box 55 l, easy grip all around the top, stackable	750 x 445 x 200	700 x 400 x 196	2.6 kg	55 l	PE	55 kg	230 kg		190 mm	white
81151010	Transport trough 40 l, easy grip all around the top, stackable	730 x 480 x 180	650 x 410 x 173	1.8 kg	40 l	PE	40 kg		16 mm		white
81201010	Transport box 80 l, easy grip all around the top, stackable	760 x 500 x 320	680 x 445 x 295	3.5 kg	80 l	PE	80 kg		65 mm		white

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

Technical drawings

Stacking box 25 l

Stacking box 55 l

Transport trough 40 l
Loading quantities (pcs/approx.)

On request
Labelling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical data sheets

Art.-No.: 81221010
Stacking box 25 l, stackable
Colour: white

Art.-No.: 81211100
Stacking box 55 l, easy grip all around the top, stackable
Colour: white

Art.-No.: 81151010
Transport trough 40 l, easy grip all around the top, stackable
Colour: white

Art.-No.: 81201010
Transport box 80 l, easy grip all around the top, stackable
Colour: white
