CB3 pallet box in light grey
Bottom
1200 mm side view
1000 mm side view
Integrated interlocking corners for secure stacking
Labelling fields for customised logos, fonts or numbering
Produced in one piece with injection-moulded runners for a robust connection
Smooth interior walls for easy emptying and cleaning
Stippled area for easy attaching and removing of adhesive labels
Ram protection trough reinforced walls with additional ribs
Integrated transponder backet for optional use of RFID tags
Space-saving through efficient use of space when handled empty
Stacked CB3 boxes
Perfectly fitting lids available

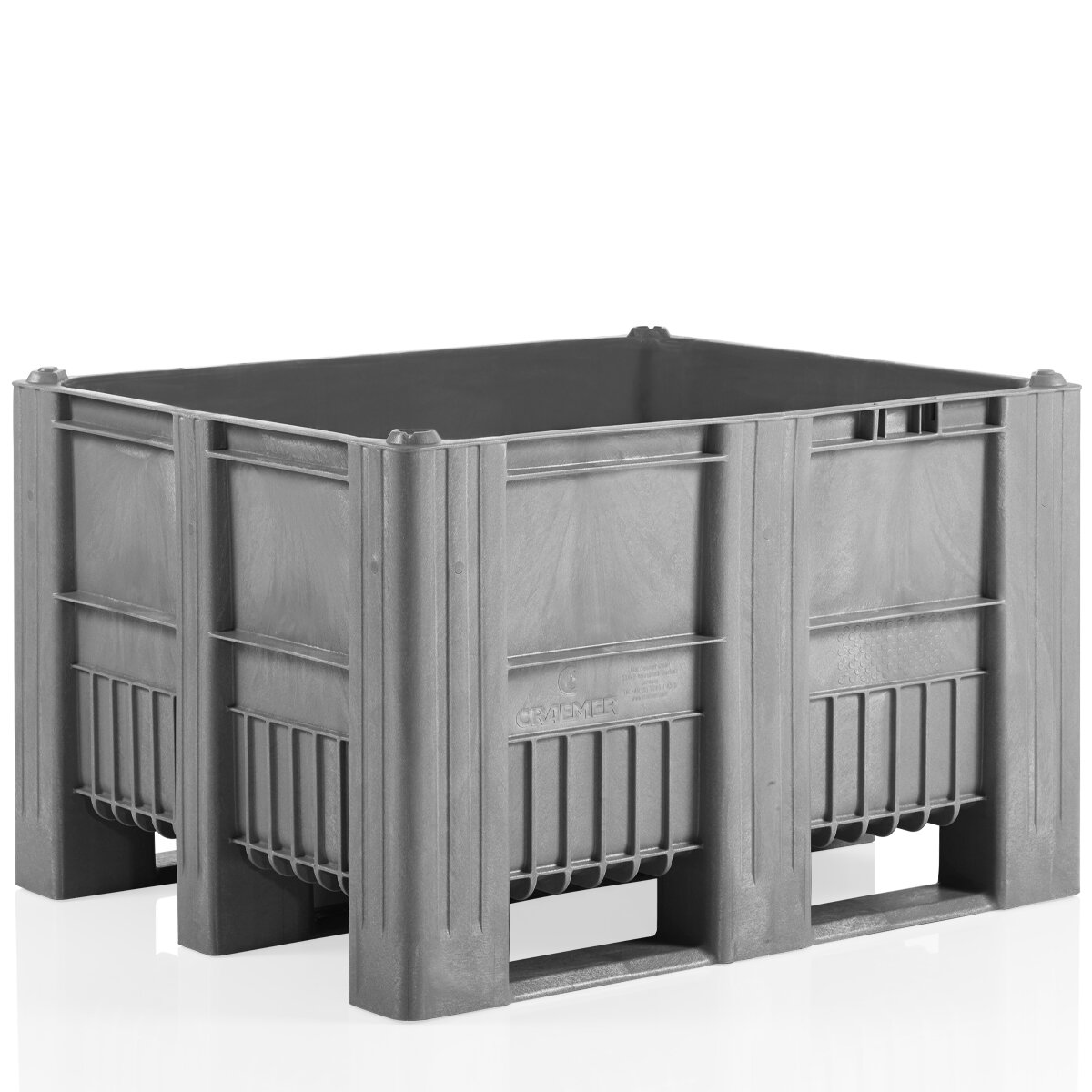

CB3 pallet box in basalt grey
CB3 pallet box in blue
CB3 pallet box in light blue
CB3 pallet box in red
CB3 pallet box in yellow
CB3 pallet box in green

CB3

The CB3 pallet box from Craemer is a highly robust large load carrier and perfect for transporting bulky goods. It is injection moulded in one piece with three runners. Maximum impact protection and resistance to forklift tines is ensured through additional ribs over the entry openings of the closed exterior walls. The seamless construction and smooth interior walls of this large load carrier ensure easy emptying, simple cleaning and good drying capabilities. The CB3 is resistant to most chemicals and cleaning agents and can withstand temperatures from -30 to +40 degrees Celsius, and even +90 degrees for short periods of time. Integrated stacking cams on the outer corners give stacked pallet boxes a secure hold.

Characteristics:

One-piece injection moulded with 3 runners
Closed walls
Strong runner connection
Addition ribs on the sides offer ram protection and increased resistance to forklift tines
Integrated interlocking corners (stacking cams)
Smooth interior walls for easy emptying and cleaning
Stippled area for temporary adhesive labels
Based on DIN EN 13626 and DIN EN ISO 12048
Basalt grey and light grey version: Contains high-quality recycled PE

Options:

One closed drain port with integrated thread and drilling mark, each on one long side (2-inch) and on one short side (1-inch)
RFID Transponder
Lid
Individual printing
Available in various colours

Product enquiry

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83281808	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	basalt grey	3, unwelded
83281818	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
83281310	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	blue	3, unwelded
83281300	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light blue	3, unwelded
83281910	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	red	3, unwelded
83281410	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	yellow	3, unwelded
83281510	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	green	3, unwelded
83281700	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded

Further links:

Landing page

Case Study Stafford Bye 2019

Case Study kebab makers 2022

Data sheet (PDF)

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83281808	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	basalt grey	3, unwelded
83281818	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
83281310	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	blue	3, unwelded
83281300	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light blue	3, unwelded
83281910	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	red	3, unwelded
83281410	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	yellow	3, unwelded
83281510	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	green	3, unwelded
83281700	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded

Art. no.: 83281808
Colour: basalt grey
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281818
Colour: light grey
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281310
Colour: blue
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281300
Colour: light blue
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281910
Colour: red
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281410
Colour: yellow
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281510
Colour: green
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281700
Colour: light brown
Volume: 610 l
Runners: 3, unwelded

Technical Data *¹

Dimensions (mm)	1200 x 1000 x 740
Internal Dimensions L x W x H (mm)	1130 x 925 x 595
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C
Material *2	PE

Art. no.	Weight (kg)	Volume	Extra Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83281808	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	basalt grey	3, unwelded
83281818	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
83281310	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	blue	3, unwelded
83281300	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light blue	3, unwelded
83281910	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	red	3, unwelded
83281410	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	yellow	3, unwelded
83281510	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	green	3, unwelded
83281700	36.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Extra Load: With a maximum stacking height of 6 boxes (5 on 1 stacking) and evenly distributed load at approx. 20 °C.

Dynamic Load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

Technical Data *¹

Art. no.: 83281808
Colour: basalt grey
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281818
Colour: light grey
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281310
Colour: blue
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281300
Colour: light blue
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281910
Colour: red
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281410
Colour: yellow
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281510
Colour: green
Volume: 610 l
Runners: 3, unwelded

Art. no.: 83281700
Colour: light brown
Volume: 610 l
Runners: 3, unwelded
Technical drawings

CB3

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 40 Pcs. Container 40' High Cube: 106 Pcs.
Truck	MEGA Trailer: 130 Pcs. Jumbo: 140-150 Pcs.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
