CC1 Pallet Collar

The CC1 pallet collar is compatible with plastic and wooden pallets. The pallet collar can be used as a single collar and convinces with its easy, foldable handling for modern logistics. In addition, the interlocking rims of the CC1 ensure safe stacking of another pallet. The variable application possibilities enable hassle-free and flexible palletising.

Characteristics:

Safe and easy locking mechanism
Integrated handles
Labelling field for adhesive labels
Transponder bracket

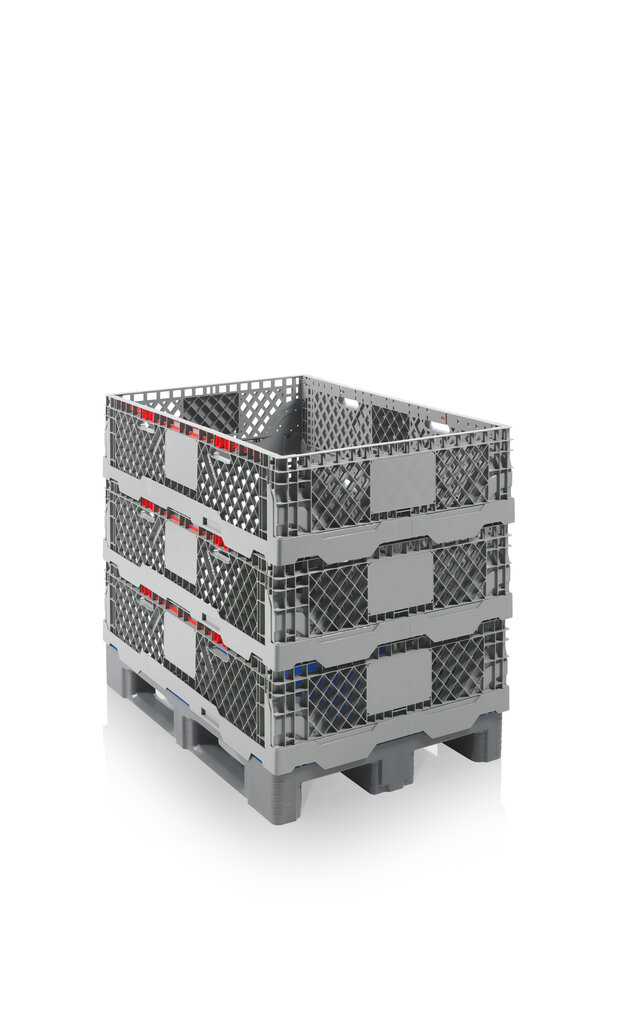

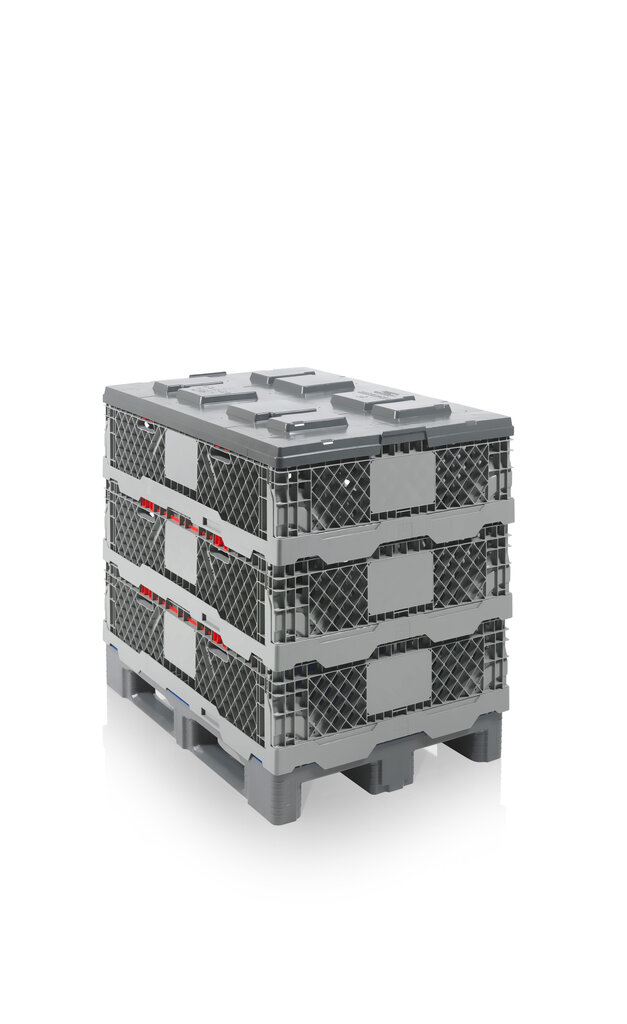

Interlocking
75% volume reduction when folded
Increased vehicle fill (double or triple stacking)

Options:

Rim options
RFID transponder

Product enquiry

Art. no.	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Folding height	Stacking Load	Colour	Rim (mm)	Amount
82550800	1220 x 815 x 300 mm	1160 x 750 x 300 mm	7.8 kg	260 l	75 mm	500 kg	light grey
82550801	1220 x 815 x 300 mm	1160 x 750 x 300 mm	7.8 kg	260 l	75 mm	500 kg	light grey	10 mm

Further links:

Video

Data sheet (PDF)

Art. no.	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Folding height	Stacking Load	Colour	Rim (mm)
82550800	1220 x 815 x 300 mm	1160 x 750 x 300 mm	7.8 kg	260 l	75 mm	500 kg	light grey
82550801	1220 x 815 x 300 mm	1160 x 750 x 300 mm	7.8 kg	260 l	75 mm	500 kg	light grey	10 mm

Technical information *¹

Internal Dimensions (mm)	1220 x 815 x 300 mm
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Folding height	Stacking Load	Colour	Rim (mm)
82550800	1220 x 815 x 300 mm	1160 x 750 x 300 mm	7.8 kg	260 l	75 mm	500 kg	light grey
82550801	1220 x 815 x 300 mm	1160 x 750 x 300 mm	7.8 kg	260 l	75 mm	500 kg	light grey	10 mm

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Stacking load: With a maximum stacking height of 3 frames and evenly distributed load at approx. 20 °C room temperature.

Technical drawings

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 0 Pcs. Container 40': 0 Pcs. Container 40' High Cube: 672 Pcs. Container 45': 0 Pcs. Conventional trailer 45’ high cube container: 924 Pcs.
Truck	MEGA Trailer: 0 Pcs. Jumbo: 1064

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical drawings

Art. no.: 82550800
Colour: hellgrau
Runners:
Rim (mm):

Art. no.: 82550801
Colour: hellgrau
Runners:
Rim (mm):10 mm
