CC2 pallet collar opend
CC2 pallet collar with 10 mm rim opend

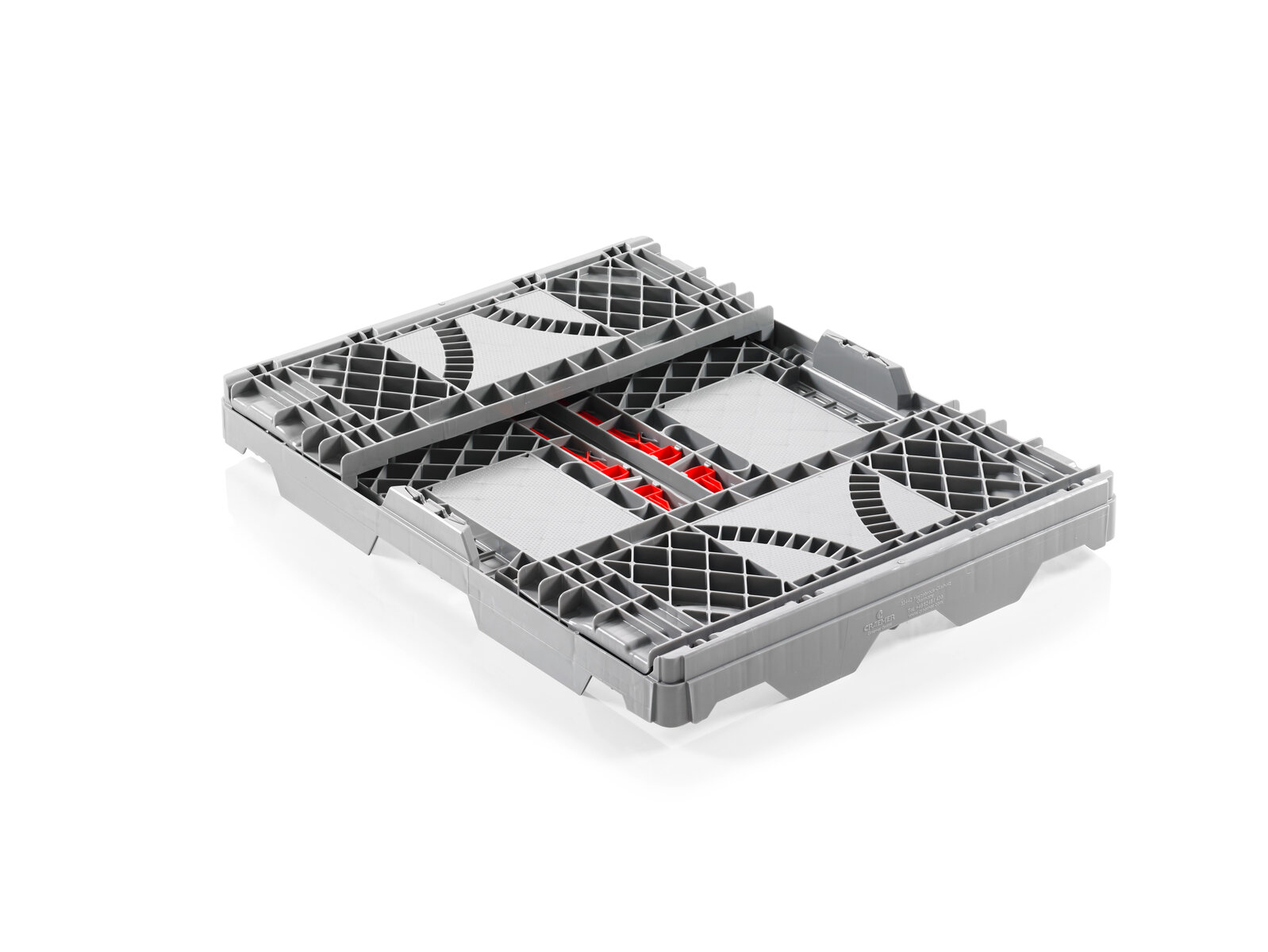

CC2 pallet collar folded

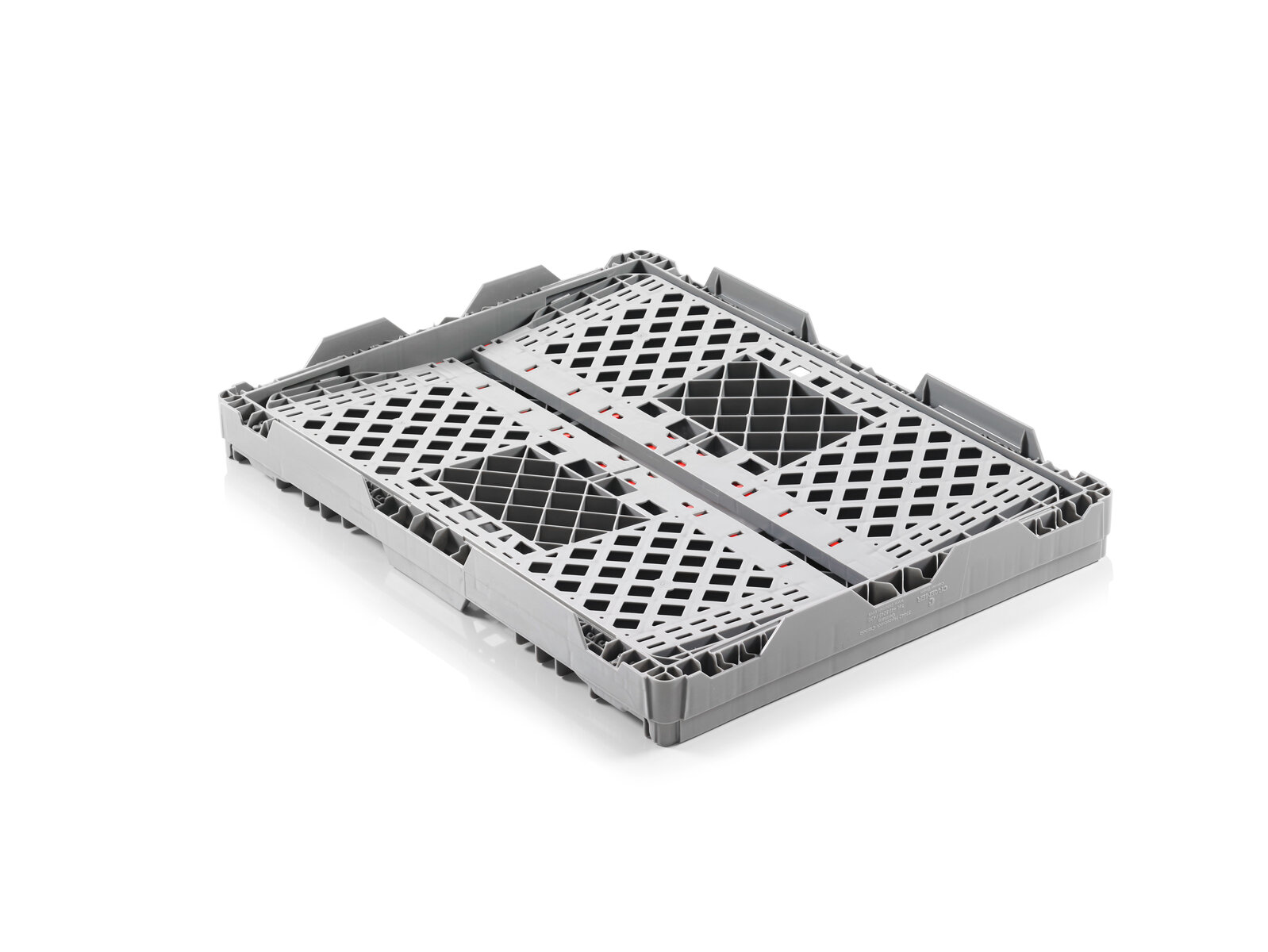

Underside

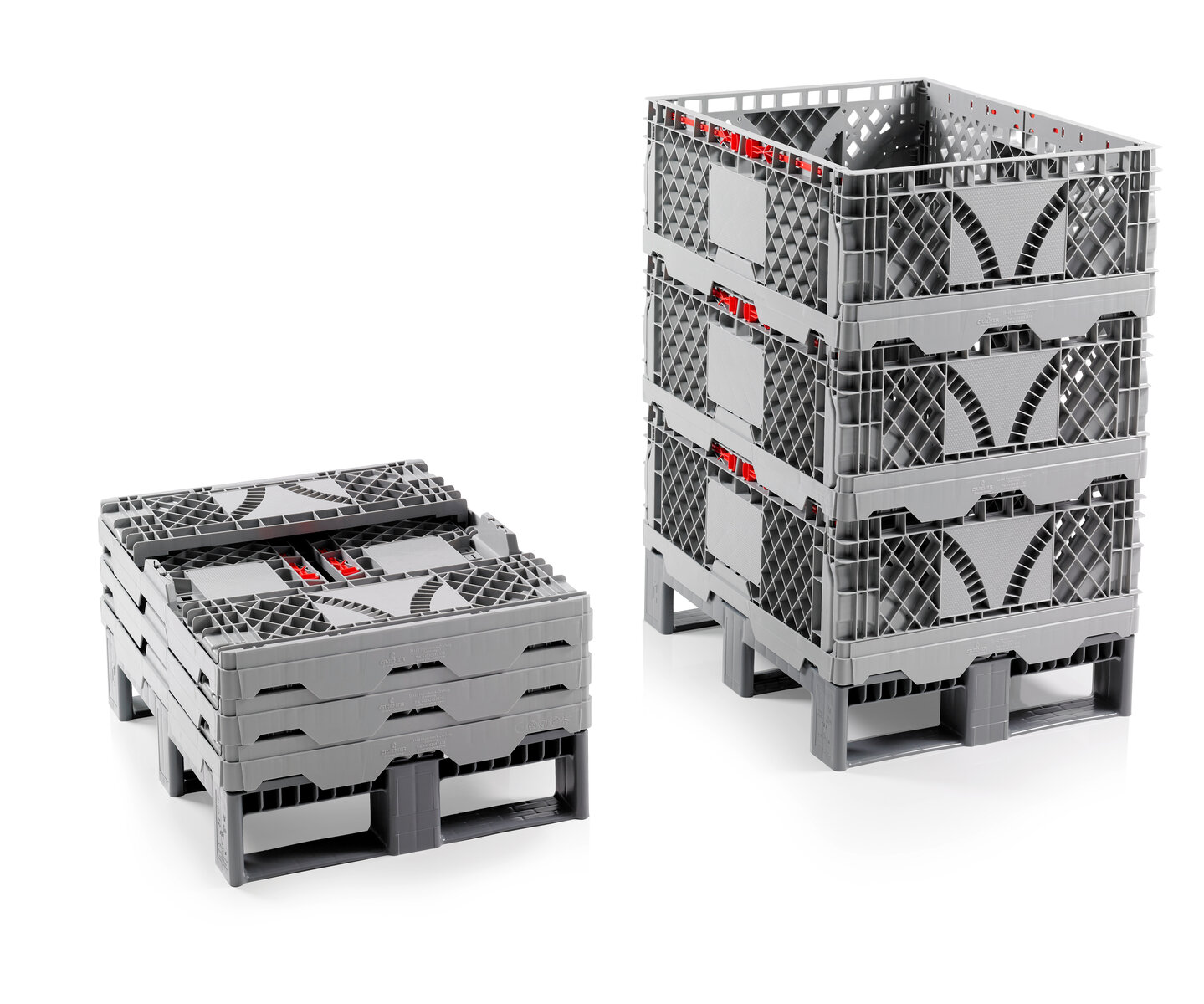

CC2 pallet collars in comparison: 75% volume reduction

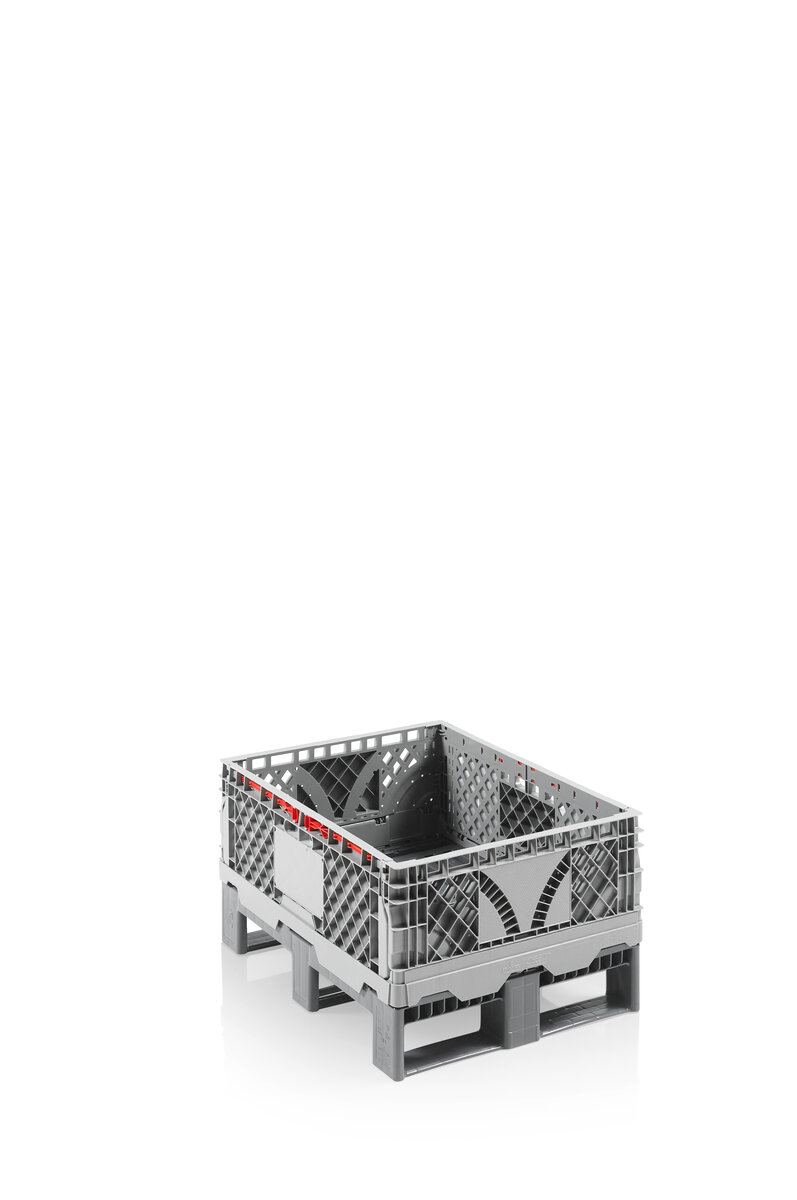

CC2 application with pallet

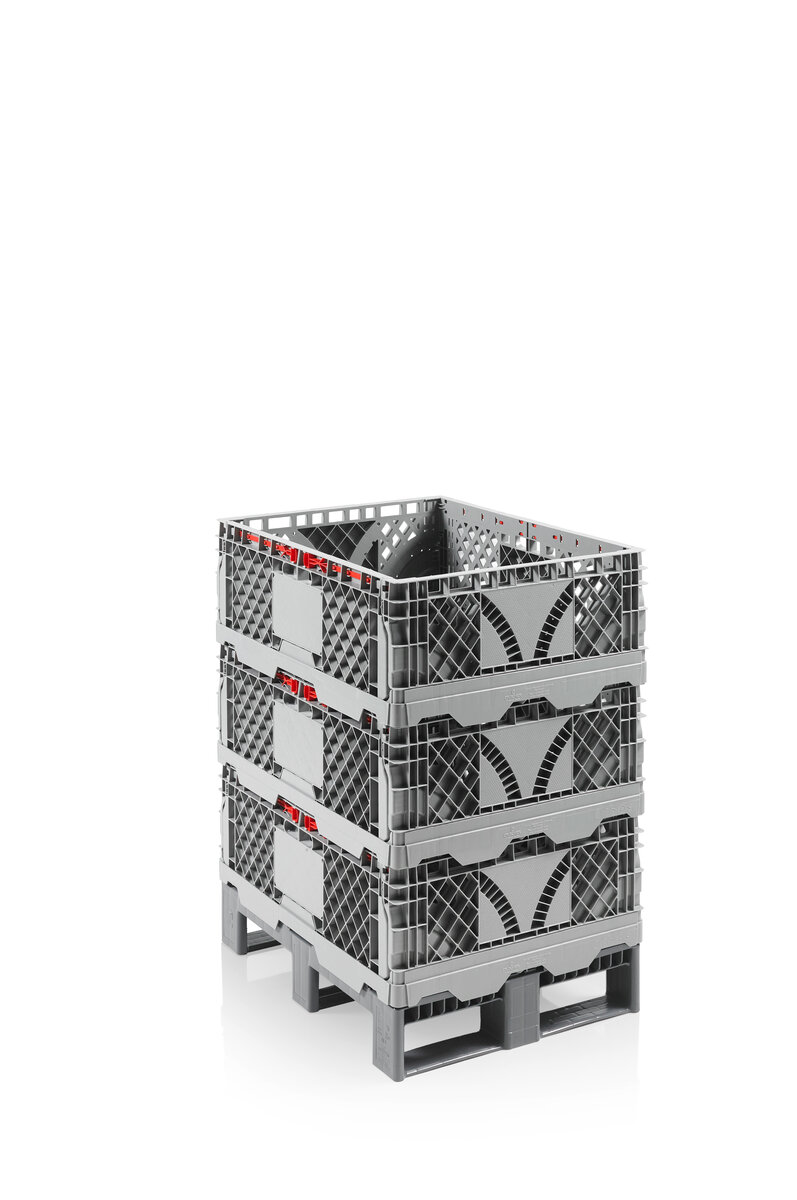

Application of 3 opend CC2 on pallet

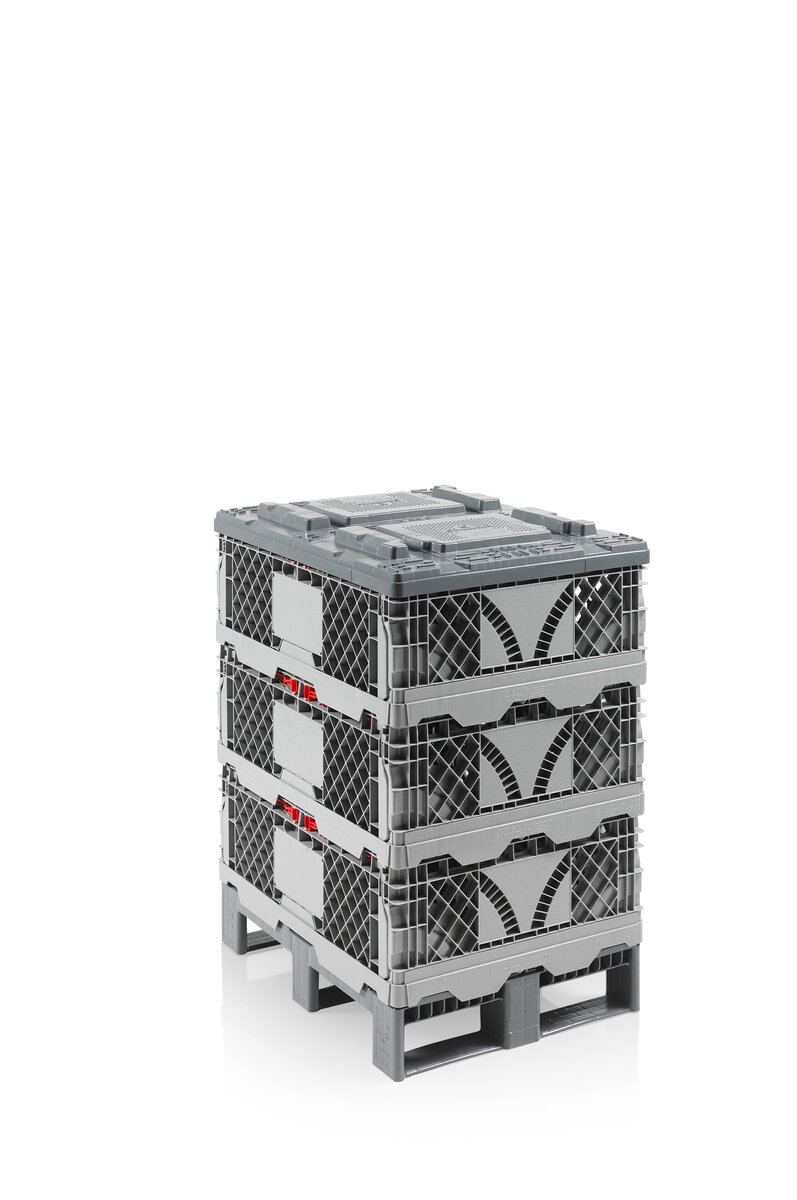

Application of 3 CC2 with pallet and lid

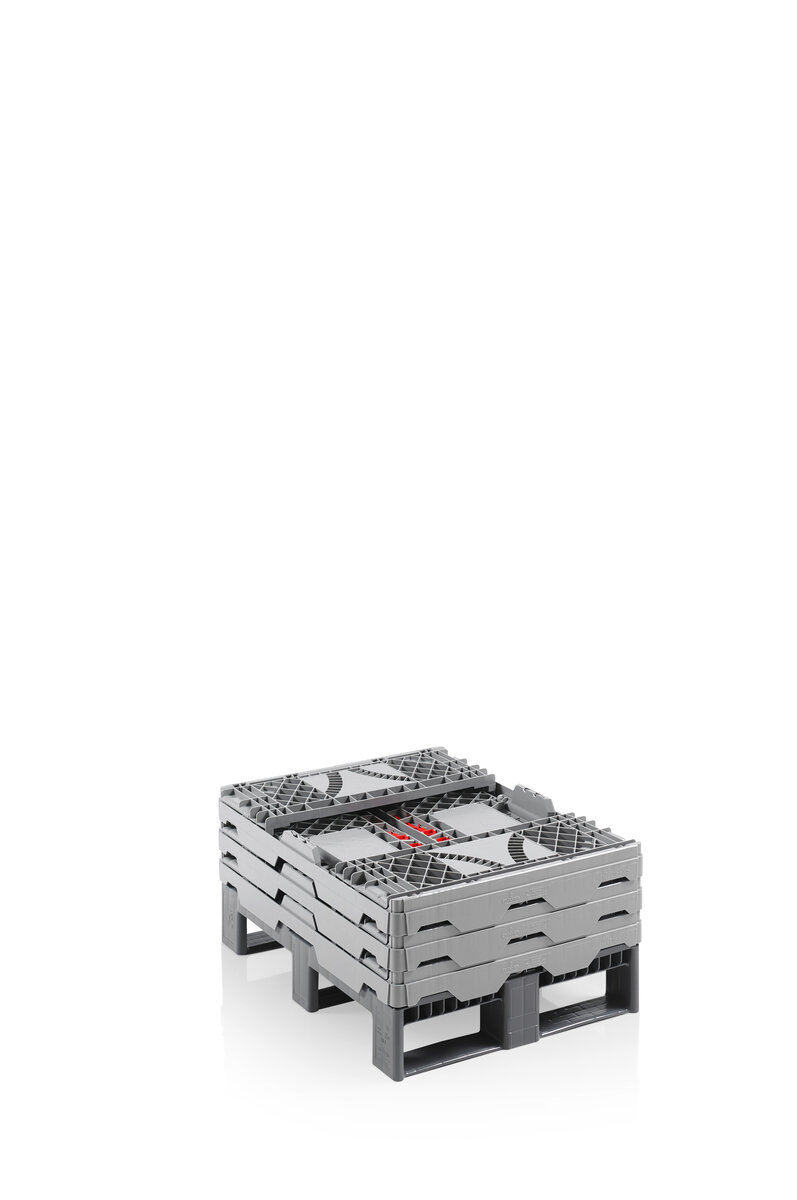

Application of 3 folded CC2 on pallet

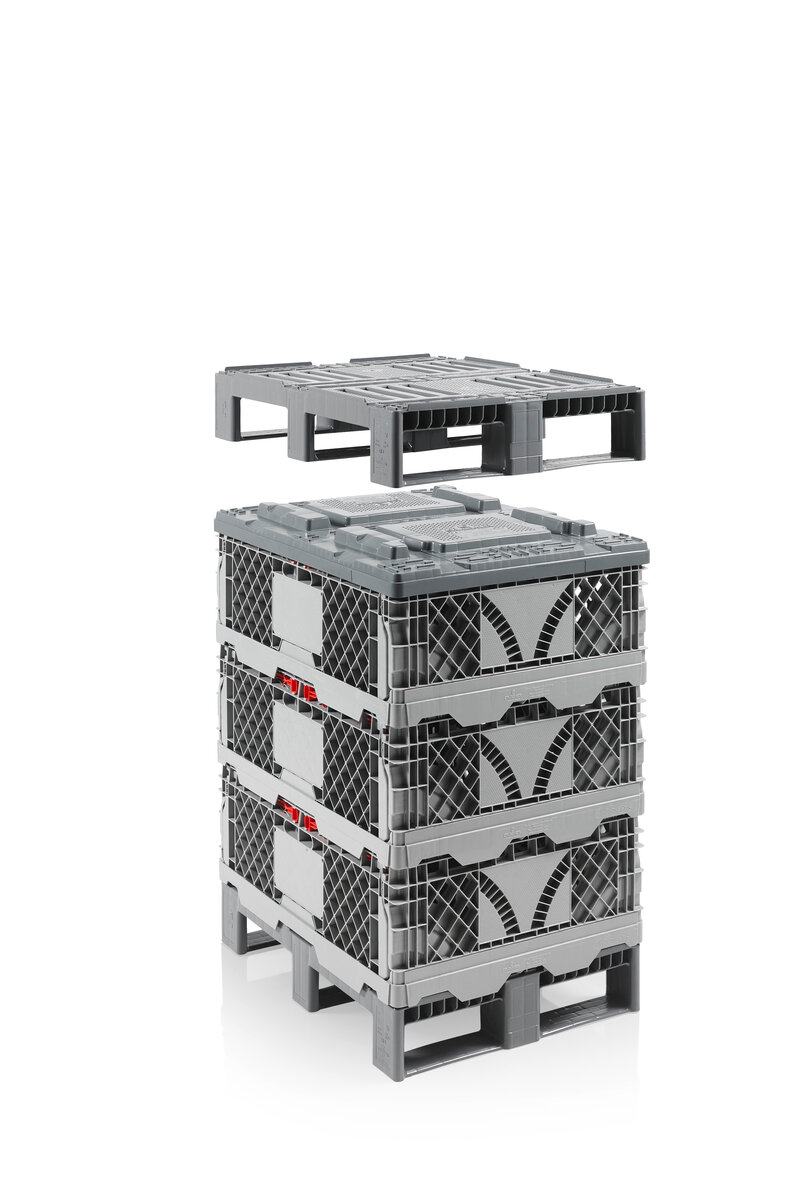

Stacking of 3 opend CC2 with lid and 2 pallets

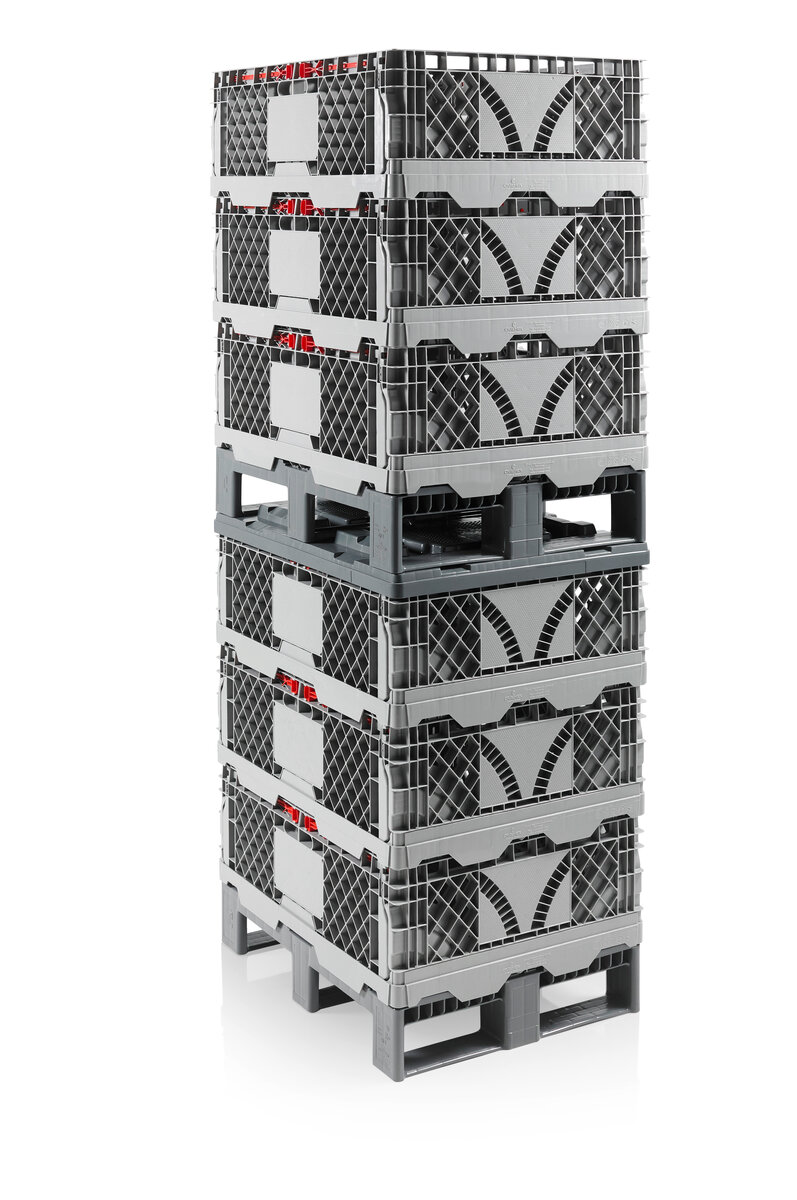

Ideal height for loading when using 6 collars and 2 pallets

CC2 Pallet Collar

The CC2 pallet collar for half pallets enables flexible palletising and effortless handling of goods. The easy, foldable design is ideal for use in modern logistics and can be used as a single collar or stacked with another pallet (version with 10 mm outside rim). Thanks to the compatibility with plastic and wooden pallets, the CC2 pallet collar is highly versatile. The CC2 pallet collar also contributes to a more sustainable logistics, as the utilisation of a reusable frame helps eliminate single-use packaging.

Characteristics:

Safe and easy locking mechanism
Integrated handles
Labelling field for adhesive labels
Transponder bracket
Interlocking
75% volume reduction through folding for space-saving storage and efficient empty runs
Ideal height for loading when using 6 collars and 2 pallets
Increased vehicle fill (double or triple stacking)

Options:

Rim options: without, 10 mm
Lid
RFID transponder

Product enquiry

Art. no.	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Folding height	Stacking Load* ³	Colour	Rim (mm)	Amount
82560800	814 x 618 x 290 mm	754 x 561 x 290 mm	5.4 kg	122 l	75 mm	400 kg	light grey
82560801	814 x 618 x 290 mm	754 x 561 x 290 mm	5.4 kg	122 l	75 mm	400 kg	light grey	10 mm

Further links:

Data sheet (PDF)

Art. no.	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Folding height	Stacking Load* ³	Colour	Rim (mm)
82560800	814 x 618 x 290 mm	754 x 561 x 290 mm	5.4 kg	122 l	75 mm	400 kg	light grey
82560801	814 x 618 x 290 mm	754 x 561 x 290 mm	5.4 kg	122 l	75 mm	400 kg	light grey	10 mm

Art. no.: 82560800
Volume: 122 l
Colour: light grey

Art. no.: 82560801
Volume: 122 l
Rim (mm): 10 mm
Colour: light grey

Technical Data *¹

Dimensions (mm)	814 x 618 x 290 mm
Internal Dimensions L x W x H (mm)	754 x 561 x 290 mm
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C
Material *2	PE

Art. no.	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Folding height	Stacking Load* ³	Colour	Rim (mm)
82560800	814 x 618 x 290 mm	754 x 561 x 290 mm	5.4 kg	122 l	75 mm	400 kg	light grey
82560801	814 x 618 x 290 mm	754 x 561 x 290 mm	5.4 kg	122 l	75 mm	400 kg	light grey	10 mm

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Stacking load: With a maximum stacking height of 3 frames and evenly distributed load at approx. 20 °C room temperature.

Technical Data *¹

Art. no.: 82560800
Volume: 122 l
Colour: light grey

Art. no.: 82560801
Volume: 122 l
Rim (mm): 10 mm
Colour: light grey
Technical drawings

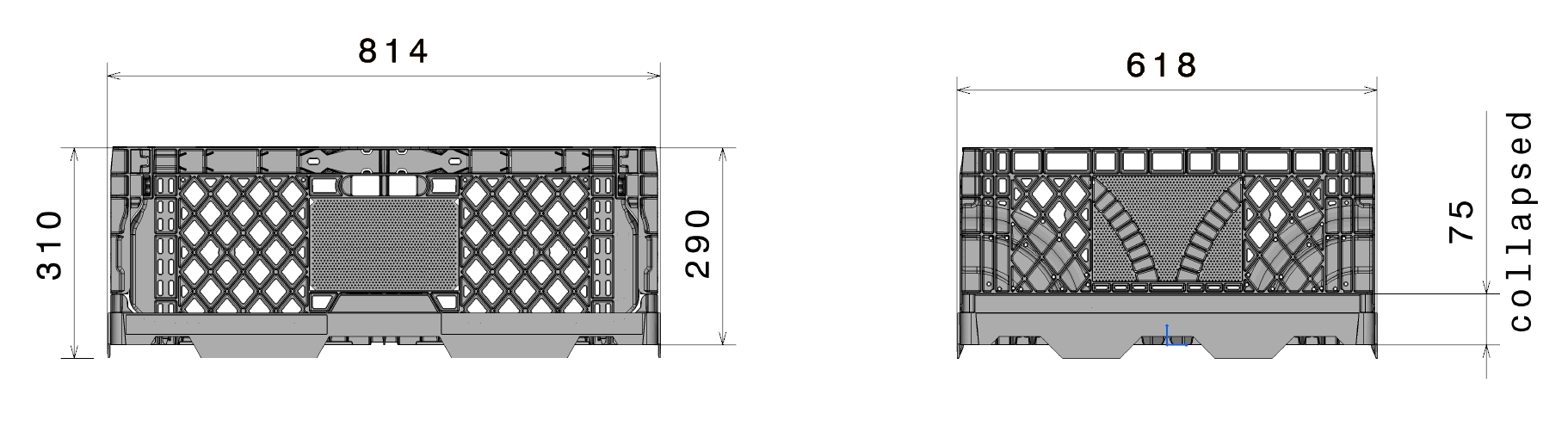

CC2

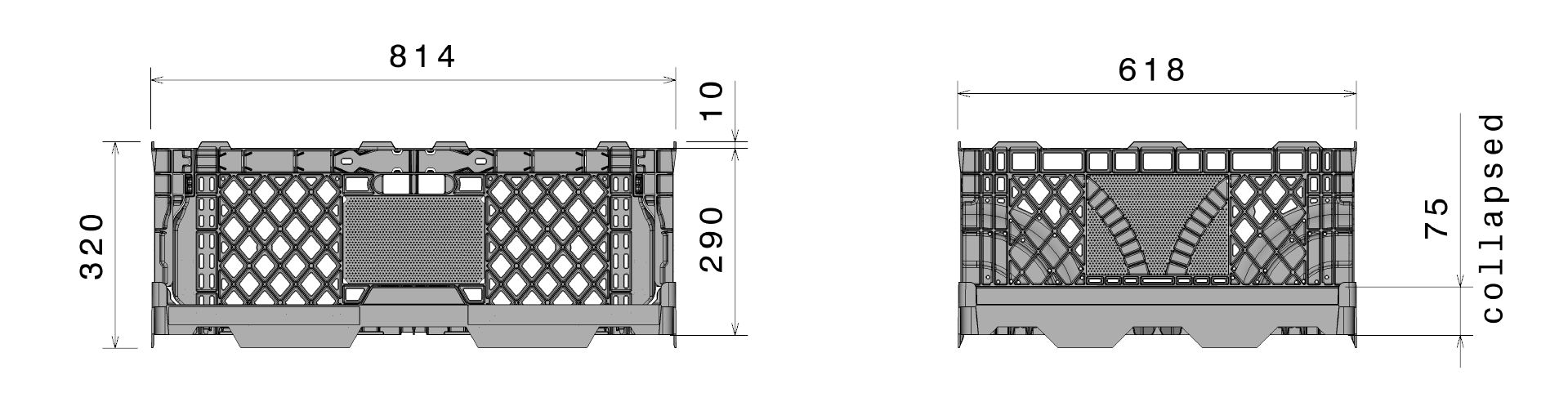

CC1 with rim
Loading quantities (Pcs / Approximate amount)

Guideline: 30-fold stacking on half pallet
Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
