Fish Boxes

The fish boxes are designed for the daily use at sea and on shore and fulfil all requirements of the international fishing industry. Whether it is catching, processing or trading: Craemer fish boxes are ideal for a variety of applications within the supply chain.

Characteristics:

Available in various sizes and versions
Made from pure PE
Long lifetime thanks to high manufacturing quality
Low breakage rate, exceptionally impact resistant
Robust handles
Nestable, stackable
Arrow marking as visual support for stacking
Smooth surface with taper for efficient drainage
Standard fitted with Craemer drainage system, which laterally drains the water to the front side
No water collection after washing thanks to optimised base geometry

Option:

Integration of RFID transponder for full net-to-plate traceability (selected versions)
Perforated side walls (20 kg fish box)
Lid (25 kg fish box)
With or without base openings
Individual marking by own colour or labelling

Watch Video

Data sheet (PDF)

Art. No.	Description	External Dimensions L × W × H (mm)	Internal Dimensions L × W × H (mm)	Weight (kg)	Volume (l)	Material	Payload (kg)	Load capacity (kg) Extra Load	Stacking height (mm) when nested	Stacking height (mm) when stacked	Colour
83630300	Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation	600 x 400 x 125	493 x 370 x 100	1.5 kg	15 l	PE	10 kg		55 mm	110 mm	blue
83640300	Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation	600 x 400 x 155	490 x 365 x 125	1.6 kg	20 l	PE	15 kg		55 mm	140 mm	blue
81671010	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	PE	20 kg	295 kg	55 mm	157 mm	white
81670300	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	PE	20 kg	295 kg	55 mm	157 mm	blue
81651100	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	PE	25 kg	250 kg	55 mm	197 mm	white
81650300	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	PE	25 kg	250 kg	55 mm	197 mm	blue
83651110	Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid	800 x 400		1 kg		PE					white
81701010	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	PE	40 kg	395 kg	89 mm	238 mm	white
81700300	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	PE	40 kg	395 kg	89 mm	238 mm	blue
81641111	Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation	885 x 555 x 235	718 x 490 x 227	4.15 kg	75 l	PE	50 kg	450 kg	65 mm	205 mm	white
81661010	Craebox 50 kg / 70 l, stackable, with base perforation	813 x 483 x 220	757 x 475 x 208	4.6 kg	70 l		50 kg	500 kg	0 mm	223 mm	white

Product enquiry

Art. No.	Description	External Dimensions L × W × H (mm)	Internal Dimensions L × W × H (mm)	Weight (kg)	Volume (l)	Material	Payload (kg)	Load capacity (kg) Extra Load	Stacking height (mm) when nested	Stacking height (mm) when stacked	Colour
83630300	Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation	600 x 400 x 125	493 x 370 x 100	1.5 kg	15 l	PE	10 kg		55 mm	110 mm	blue
83640300	Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation	600 x 400 x 155	490 x 365 x 125	1.6 kg	20 l	PE	15 kg		55 mm	140 mm	blue
81671010	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	PE	20 kg	295 kg	55 mm	157 mm	white
81670300	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	PE	20 kg	295 kg	55 mm	157 mm	blue
81651100	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	PE	25 kg	250 kg	55 mm	197 mm	white
81650300	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	PE	25 kg	250 kg	55 mm	197 mm	blue
83651110	Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid	800 x 400		1 kg		PE					white
81701010	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	PE	40 kg	395 kg	89 mm	238 mm	white
81700300	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	PE	40 kg	395 kg	89 mm	238 mm	blue
81641111	Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation	885 x 555 x 235	718 x 490 x 227	4.15 kg	75 l	PE	50 kg	450 kg	65 mm	205 mm	white
81661010	Craebox 50 kg / 70 l, stackable, with base perforation	813 x 483 x 220	757 x 475 x 208	4.6 kg	70 l		50 kg	500 kg	0 mm	223 mm	white

Any questions?

Telephone: +49 5245 43-0

E-Mail: info(at)craemer.com

Technical data^*1

Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. No.	Description	External Dimensions L × W × H (mm)	Internal Dimensions L × W × H (mm)	Weight (kg)	Volume (l)	Material	Payload (kg)	Load capacity (kg) Extra Load	Stacking height (mm) when nested	Stacking height (mm) when stacked	Colour
83630300	Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation	600 x 400 x 125	493 x 370 x 100	1.5 kg	15 l	PE	10 kg		55 mm	110 mm	blue
83640300	Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation	600 x 400 x 155	490 x 365 x 125	1.6 kg	20 l	PE	15 kg		55 mm	140 mm	blue
81671010	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	PE	20 kg	295 kg	55 mm	157 mm	white
81670300	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	PE	20 kg	295 kg	55 mm	157 mm	blue
81651100	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	PE	25 kg	250 kg	55 mm	197 mm	white
81650300	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	PE	25 kg	250 kg	55 mm	197 mm	blue
83651110	Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid	800 x 400		1 kg		PE					white
81701010	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	PE	40 kg	395 kg	89 mm	238 mm	white
81700300	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	PE	40 kg	395 kg	89 mm	238 mm	blue
81641111	Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation	885 x 555 x 235	718 x 490 x 227	4.15 kg	75 l	PE	50 kg	450 kg	65 mm	205 mm	white
81661010	Craebox 50 kg / 70 l, stackable, with base perforation	813 x 483 x 220	757 x 475 x 208	4.6 kg	70 l		50 kg	500 kg	0 mm	223 mm	white

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

Technical drawings

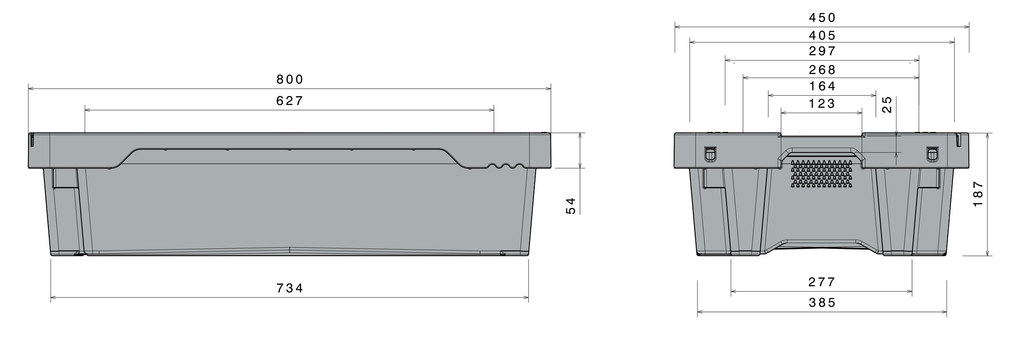

Stack & Nest Box / Fish Box 20 kg / 35 l

Stack & Nest Box / Fish Box 20 kg / 35 l

Stack & Nest Box / Euro Fish Box 25 kg / 40 l

Stack & Nest Box / Euro Fish Box 25 kg / 40 l

Stack & Nest Box / Fish Box 40 kg / 60 l

Stack & Nest Box / Fish Box 40 kg / 60 l

Stack & Nest Box / Fish Box 50 kg / 75 l

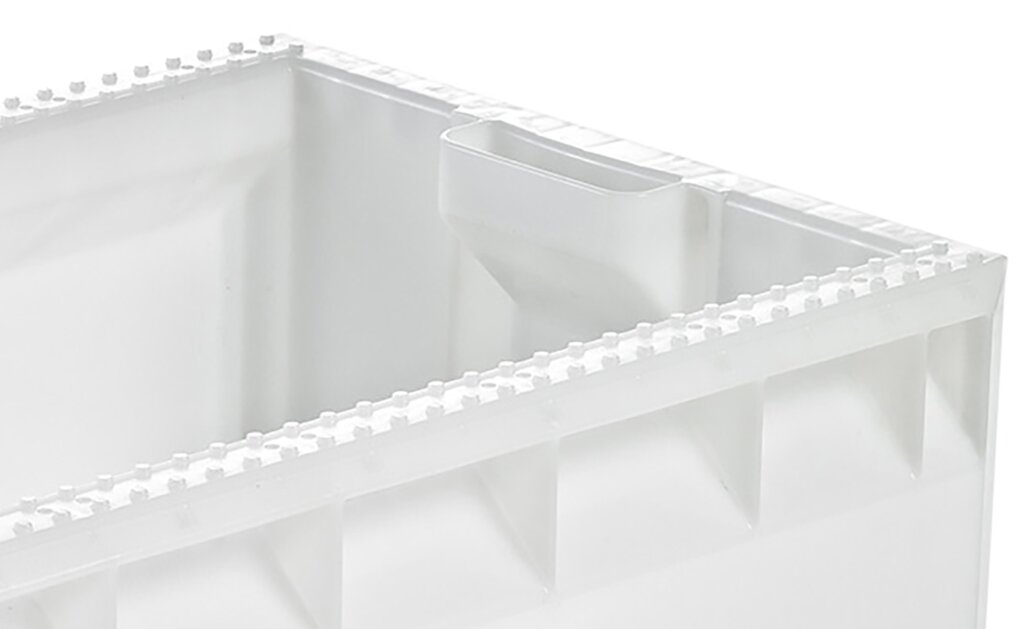

Craebox 50 kg / 70 l
Loading quantities (pcs/approx.)

On request
Labelling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical data sheets

Art. No.: 83630300
Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation
Colour: blue

Art. No.: 83640300
Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation
Colour: blue

Art. No.: 81671010
Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation
Colour: white

Art. No.: 81670300
Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation
Colour: blue

Art. No.: 81651100
Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation
Colour: white

Art. No.: 81650300
Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation
Colour: blue

Art. No.: 83651110
Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid
Colour: white

Art. No.: 81701010
Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation
Colour: white

Art. No.: 81700300
Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation
Colour: blue

Art. No.: 81641111
Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation
Colour: white

Art. No.: 81661010
Craebox 50 kg / 70 l, stackable, with base perforation
Colour: white

A versatile product range, industry knowledge & quality

Craemer develops, designs and manufactures high quality plastic injection-moulded storage and transport containers for various areas of application. The well-established container range is suited for universal use and has been raising the industry standard in the marketplace for many years.

The "white container program" in particular has set the standard in the meat and food industry. Customised printing of logos or numbering and special colours available on request.

Characteristic features of the Craemer plastic containers:

Manufactured with only pure, high-quality materials
Practice-based developments and continuous product testing
Manufactured according to highest quality control demands
Easily handling
Long service life and high performance
Robust construction and high impact resistance
Resistance to most chemicals and cleaning agents
Easy to clean thanks to smooth surfaces
Dimensional stability at temperatures ranging from -30 °C to +40 °C, briefly up to +90 °C
Excellent load capacity

Ideally suited for various industries and applications:

Food Processing Industry
Meat industry
Fishing industry
Construction
Municipalities and winter road maintenance

Product overview
