Plastic pallets
Top carriers for efficient logistics

Plastic Pallets

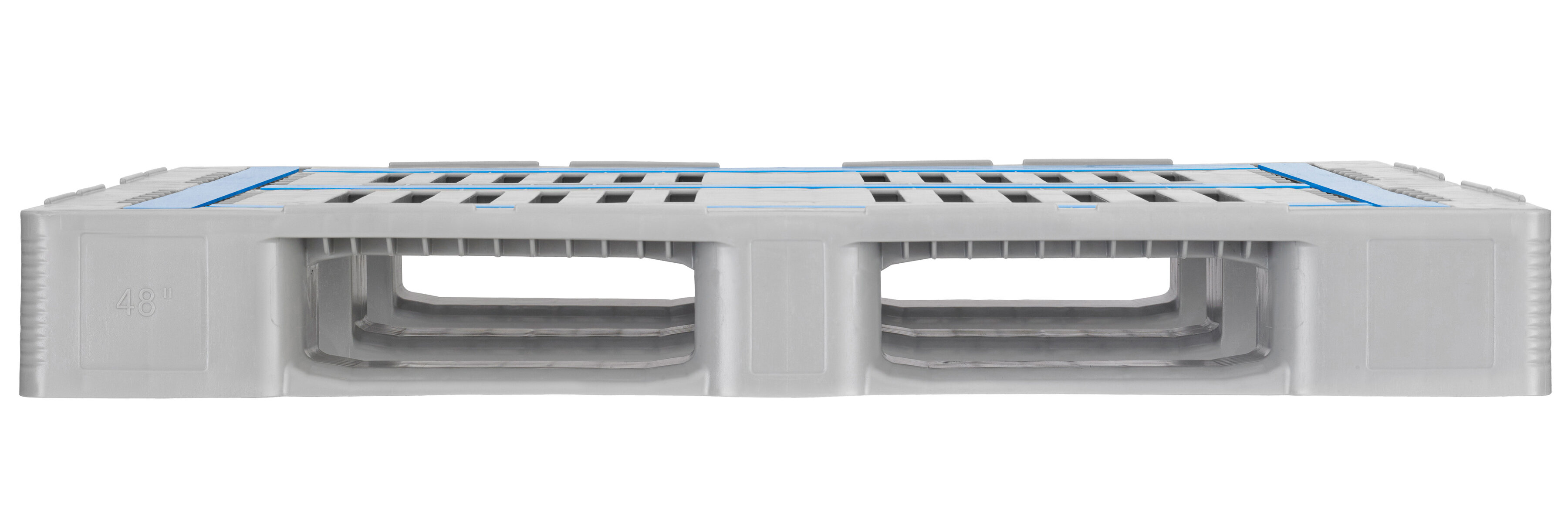

CR4 / CR4-5

The CR4 / CR4-5 plastic pallet is the perfect choice for a variety of industries and perfect for handling heavy loads in any setting, whether in high rack warehouses or in automated processes. The CR4 (3 runners) / CR4-5 (5 runners) reusable pallet was specially manufactured for the USA market and has the 48'' x 40'' inch standard USA pallet size. It is made from high-quality PE, equipped with integrated reinforcement profiles for increased load-bearing capacity, and is 100% recyclable. Palgrip® anti-slip strips on the top deck of the heavy-duty plastic pallet ensure maximum load safety.



Characteristics:

  • Available with 3 runners (CR4) or 5 runners (CR4-5)
  • American standard 48'' x 40'' inch pallet size
  • High load-bearing capacity for heavy-duty applications
  • Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 1,400kg in high rack
  • Dimensionally stable with first-class bending parameters, ideal for roller conveyors and automated high rack warehouses
  • Chamfered edges on both sides of all runners for optimal handling with forklift trucks

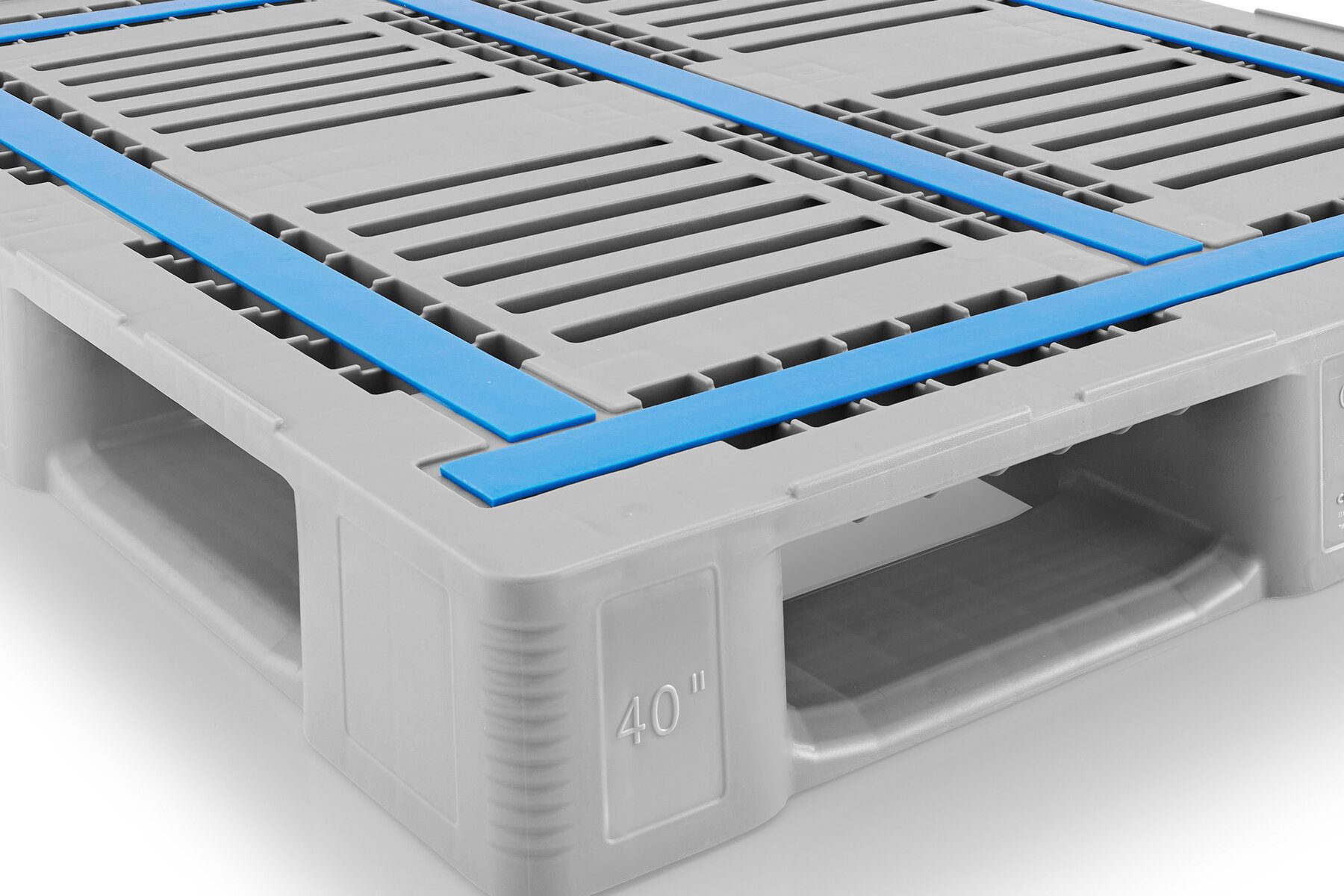

  • Palgrip® anti-slip strips on the top deck



Options:

  • Rims: 5 mm
  • RFID transponder
Product enquiry
CR4 / CR4-5 | Data sheet (PDF)
Art. no.
Weight (kg)
Load Capacity (kg) Static *3
Load capacity (kg) Dynamic *3
Load Capacity (kg) In Racking System *3
Colour
Runners
ESD
Reinforcement profiles
Central box retainers
Rim (mm)
Full-surface Palgrip® anti-slip top deck
Palgrip® anti-slip strips on the top deck
Anti-slip plugs on the underside of the deck
Palgrip® anti-slip runners
Palgrip® anti-slip pads on the top deck
Palgrip®-Antirutschclips
Amount
83350301 23.5 kg 7,500 kg 1,250 kg 1,000 kg light blue / blue 5, unwelded 5 mm
83350351 27.5 kg 7,500 kg 1,500 kg 1,400 kg light blue / blue 5, unwelded 5 5 mm
83350851 27.5 kg 7,500 kg 1,500 kg 1,400 kg light grey / blue 5, unwelded 5 5 mm
83352201 23.5 kg 7,500 kg 1,250 kg 1,000 kg black / blue 5, unwelded 5 mm
83352251 27.5 kg 7,500 kg 1,500 kg 1,400 kg black / blue 5, unwelded 5 5 mm
