Pallet Lid 48" x 40"

The industrial size pallet lid is made from high-quality material and is a durable, maintenance-free solution for goods protection during storage or transportaion. It helps to minimize product damages that can occur while goods are moved through the supply chain. Compatability with all standard reusable boxes ensures flexible use in daily handling.

Characteristics:

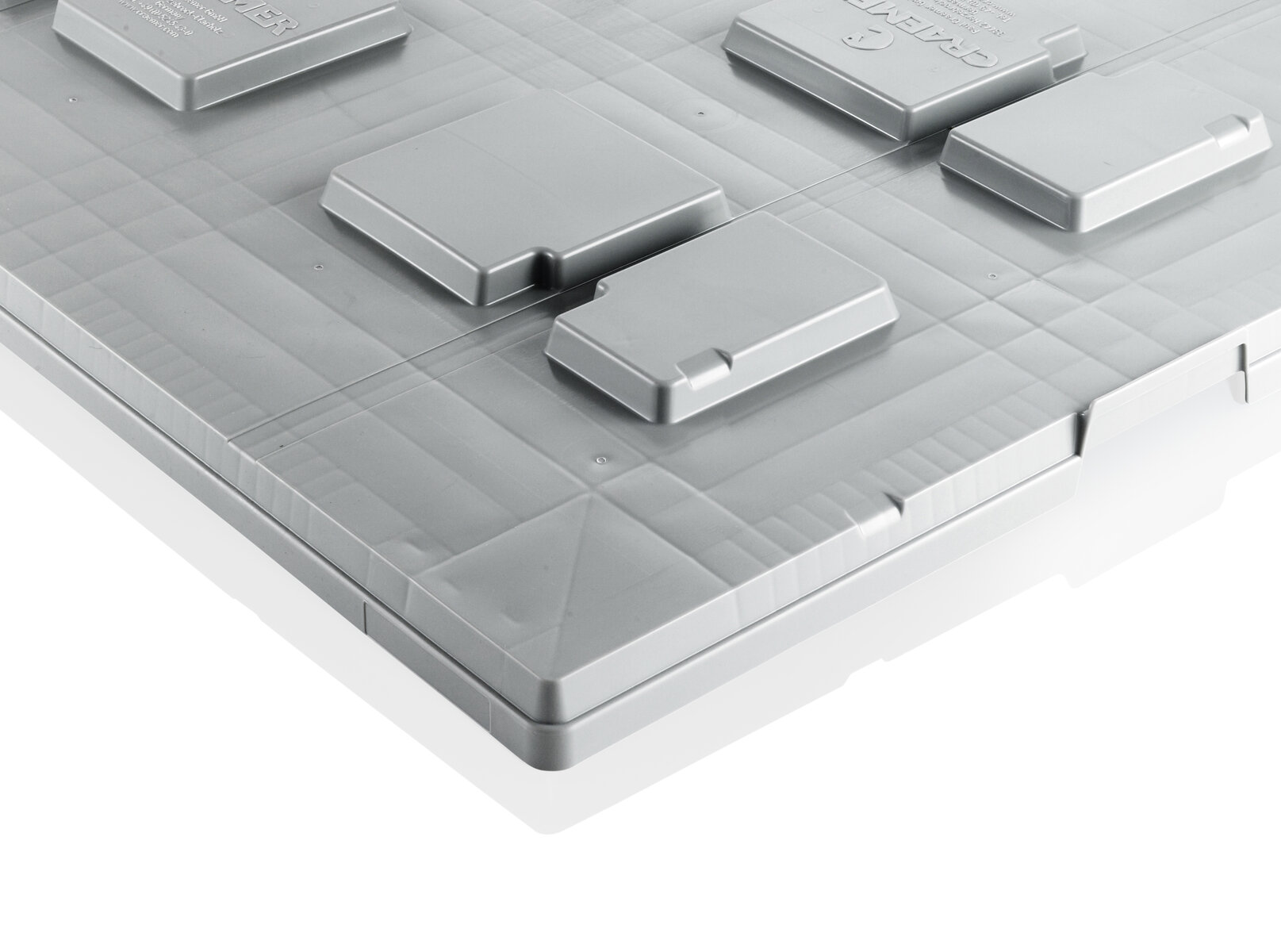

Retainer on short side prevents shifting of pallet when stacked on lid
Integrated strapping grooves

Option:

Integration of RFID transponder

Product enquiry

Art. no.	Length x width x height Outer dimensions	Length x width x height Internal dimensions	Weight (kg)	Color	ESD
83291800	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.8 " (1210 x 1010 mm)	15 lbs	light gray
83299800	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.8 " (1210 x 1010 mm)	15 lbs	basalt gray
83292210	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.7 " (1210 x 1008 mm)	15 lbs	black	●
83290210 flat version	48 x 40 x 2.8 " (1222 x 1022 x 70 mm)	47.6 x 39.8 " (1210 x 1010 mm)	14 lbs	black

Further links:

Data sheet (PDF)

Art. no.	Length x width x height Outer dimensions	Length x width x height Internal dimensions	Weight (kg)	Color	ESD
83291800	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.8 " (1210 x 1010 mm)	15 lbs	light gray
83299800	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.8 " (1210 x 1010 mm)	15 lbs	basalt gray
83292210	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.7 " (1210 x 1008 mm)	15 lbs	black	●
83290210 flat version	48 x 40 x 2.8 " (1222 x 1022 x 70 mm)	47.6 x 39.8 " (1210 x 1010 mm)	14 lbs	black

Art. no.: 83291800
Color: light gray

Art. no.: 83299800
Color: basalt gray

Art. no.: 83292210
Color: black

Art. no.: 83290210 flat version
Color: black

Technical Data *¹

Dimensions	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)
Internal Dimensions	47.6 x 39.8 " (1210 x 1010 mm)
Temperature stability	-22°F to +104°F, briefly up to +194°F

Art. no.	Length x width x height Outer dimensions	Length x width x height Internal dimensions	Weight (kg)	Color	ESD
83291800	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.8 " (1210 x 1010 mm)	15 lbs	light gray
83299800	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.8 " (1210 x 1010 mm)	15 lbs	basalt gray
83292210	48 x 40 x 3.2 " (1222 x 1022 x 82 mm)	47.6 x 39.7 " (1210 x 1008 mm)	15 lbs	black	●
83290210 flat version	48 x 40 x 2.8 " (1222 x 1022 x 70 mm)	47.6 x 39.8 " (1210 x 1010 mm)	14 lbs	black

*1:

All technical data reflect characteristic features tested under specially defined conditions. Variations may occur due to different usage conditions, such as loading method, ambient temperature, and storage duration. All data and specifications are subject to change without notice. Our service team is happy to assist in reviewing the specific requirements of your individual application.

*2:

Our service team is available to provide precise information about material compositions.

Technical Data *¹

Art. no.: 83291800
Color: light gray

Art. no.: 83299800
Color: basalt gray

Art. no.: 83292210
Color: black

Art. no.: 83290210 flat version
Color: black
Technical drawings

Pallet lid 1200 x 1000 mm
Loading quantities (Pcs / Approximate amount)

Guideline: 30 lids per pallet. Exact loading quantities on request.
Labeling options
Hot stamping of letters and logos on request, depending on quantity. Position on long side.

Pallet Lid 48" x 40"
