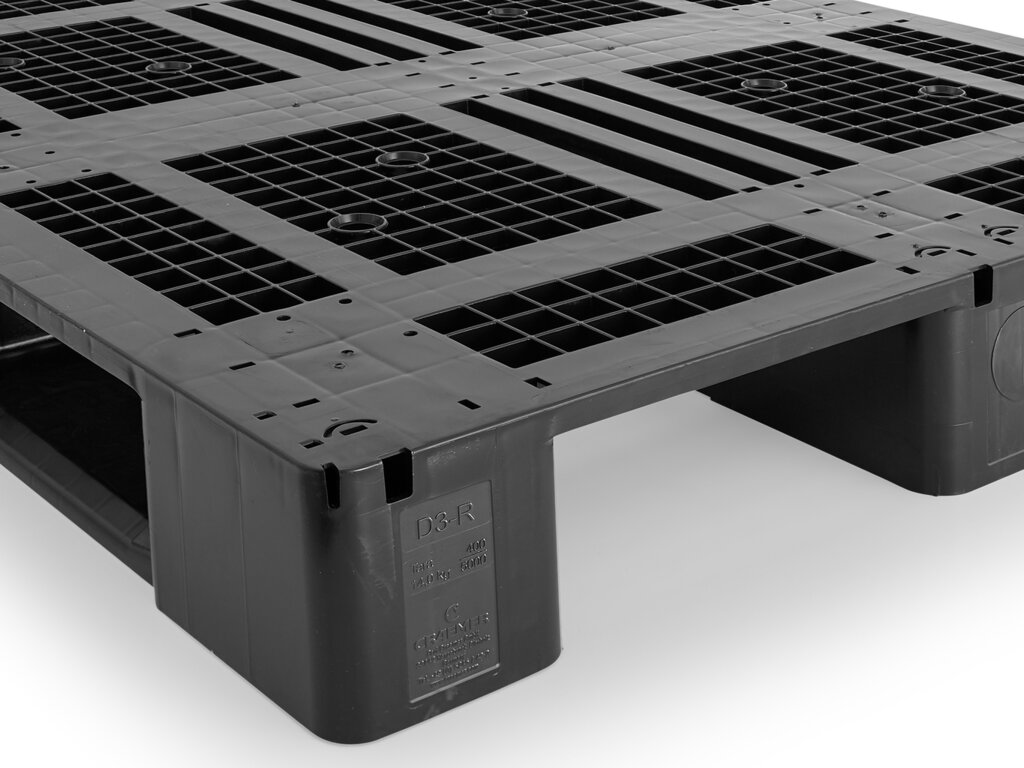

D3 ECO / D3-5 ECO

The D3 ECO / D3-5 ECO recycled pallet is perfect for the distribution and storage of medium loads.

Characteristics:

Available as 3-runner D3 ECO or 5-runner D3-5 ECO
Tare weight of just 14 kg / 15 kg
Robust construction
Versatile and easily adaptable to current and future logistics requirements
All runners have chamfered edges on both sides for ideal use with fork lift trucks
The D3 ECO / D3-5 ECO version with 22 mm outside rims has an inner dimension of 1200 x 1000 mm for box and blister applications

Option:

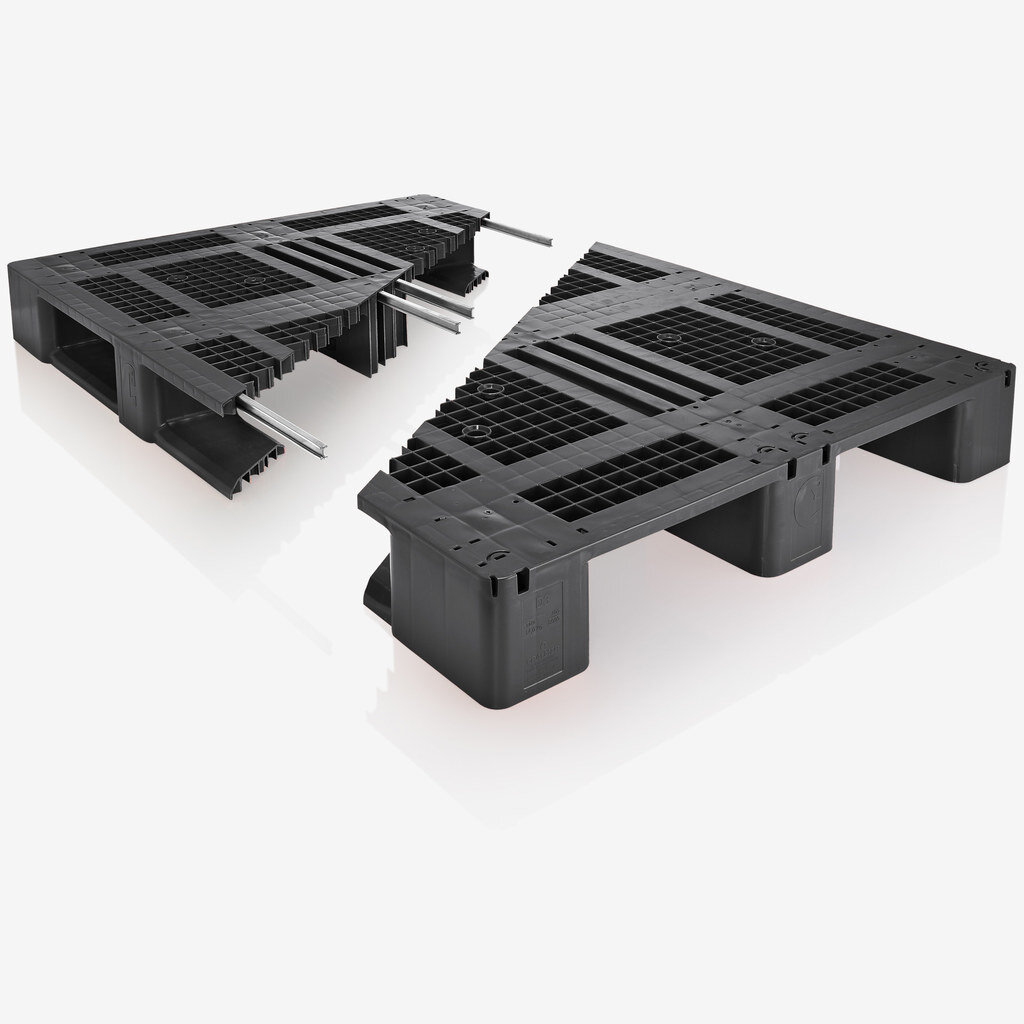

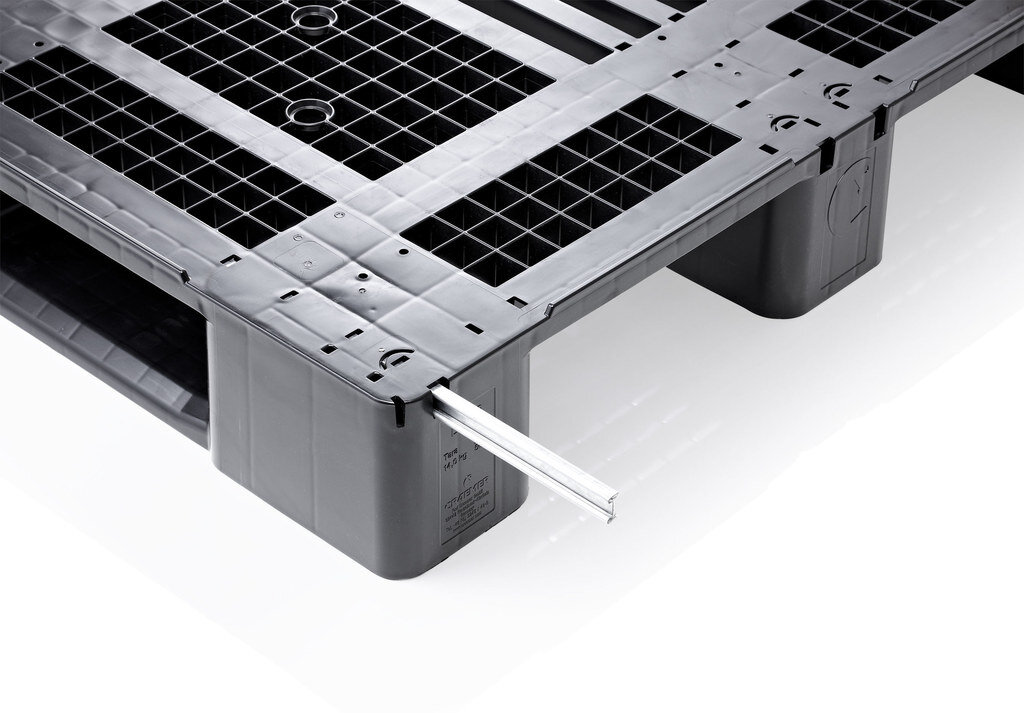

Corrosion-protected reinforcement profiles, for a load capacity of up to 1.250 kg in high rack

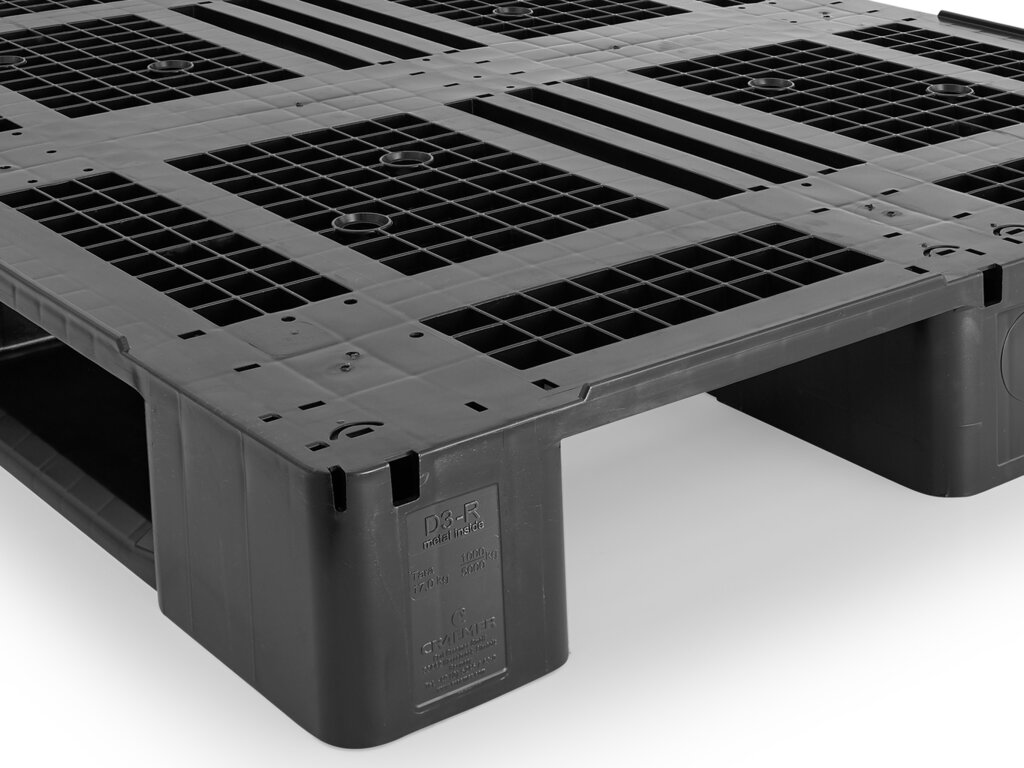

Rim options: Without, 7 mm, 22 mm, 22 mm outside
Pop-Ups as interlocking support for stacking of empty pallets
Anti-slip plugs from top to underside of deck
Integration of RFID transponders

Art.-No.	Weight (kg)	Load capacity (kg) Static *²	Load capacity (kg) Dynamic *²	Load capacity (kg) High rack *²	Colour	Runners	Reinforcement profiles	Central box retainers (mm)
83320200	15 kg	5000 kg	1000 kg	400 kg	black	5 unverschweißt
83320201	15 kg	5000 kg	1000 kg	400 kg	black	5 unverschweißt		7 mm
83320230	18 kg	5000 kg	1250 kg	1000 kg	black	5 unverschweißt	3
83320231	18 kg	5000 kg	1250 kg	1000 kg	black	5 unverschweißt	3	7 mm
83320240	19 kg	5000 kg	1500 kg	1000 kg	black	5 unverschweißt	4
83320241	19 kg	5000 kg	1500 kg	1250 kg	black	5 unverschweißt	4	7 mm
83325200	14 kg	5000 kg	1000 kg	400 kg	black	3, unwelded
83325201	14 kg	5000 kg	1000 kg	400 kg	black	3, unwelded		7 mm
83325230	17 kg	5000 kg	1250 kg	1000 kg	black	3, unwelded	3
83325231	17 kg	5000 kg	1250 kg	1000 kg	black	3, unwelded	3	7 mm
83325240	18 kg	5000 kg	1500 kg	1250 kg	black	3, unwelded	4
83325241	18 kg	5000 kg	1500 kg	1250 kg	black	3, unwelded	4	7 mm

Product enquiry

Art.-No.	Weight (kg)	Load capacity (kg) Static *²	Load capacity (kg) Dynamic *²	Load capacity (kg) High rack *²	Colour	Runners	Reinforcement profiles	Central box retainers (mm)
83320200	15 kg	5000 kg	1000 kg	400 kg	black	5 unverschweißt
83320201	15 kg	5000 kg	1000 kg	400 kg	black	5 unverschweißt		7 mm
83320230	18 kg	5000 kg	1250 kg	1000 kg	black	5 unverschweißt	3
83320231	18 kg	5000 kg	1250 kg	1000 kg	black	5 unverschweißt	3	7 mm
83320240	19 kg	5000 kg	1500 kg	1000 kg	black	5 unverschweißt	4
83320241	19 kg	5000 kg	1500 kg	1250 kg	black	5 unverschweißt	4	7 mm
83325200	14 kg	5000 kg	1000 kg	400 kg	black	3, unwelded
83325201	14 kg	5000 kg	1000 kg	400 kg	black	3, unwelded		7 mm
83325230	17 kg	5000 kg	1250 kg	1000 kg	black	3, unwelded	3
83325231	17 kg	5000 kg	1250 kg	1000 kg	black	3, unwelded	3	7 mm
83325240	18 kg	5000 kg	1500 kg	1250 kg	black	3, unwelded	4
83325241	18 kg	5000 kg	1500 kg	1250 kg	black	3, unwelded	4	7 mm

Do you have any questions?

Telephone: +44 1952 6078-00

E-Mail: info(at)craemer.com

Technical data*1

Maße L×B×H (mm)	1200 x 1000 x 150
Material	HDPE, Regranulated material
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art.-No.	Weight (kg)	Load capacity (kg) Static *²	Load capacity (kg) Dynamic *²	Load capacity (kg) High rack *²	Colour	Runners	Reinforcement profiles	Central box retainers (mm)
83320200	15 kg	5000 kg	1000 kg	400 kg	black	5 unverschweißt
83320201	15 kg	5000 kg	1000 kg	400 kg	black	5 unverschweißt		7 mm
83320230	18 kg	5000 kg	1250 kg	1000 kg	black	5 unverschweißt	3
83320231	18 kg	5000 kg	1250 kg	1000 kg	black	5 unverschweißt	3	7 mm
83320240	19 kg	5000 kg	1500 kg	1000 kg	black	5 unverschweißt	4
83320241	19 kg	5000 kg	1500 kg	1250 kg	black	5 unverschweißt	4	7 mm
83325200	14 kg	5000 kg	1000 kg	400 kg	black	3, unwelded
83325201	14 kg	5000 kg	1000 kg	400 kg	black	3, unwelded		7 mm
83325230	17 kg	5000 kg	1250 kg	1000 kg	black	3, unwelded	3
83325231	17 kg	5000 kg	1250 kg	1000 kg	black	3, unwelded	3	7 mm
83325240	18 kg	5000 kg	1500 kg	1250 kg	black	3, unwelded	4
83325241	18 kg	5000 kg	1500 kg	1250 kg	black	3, unwelded	4	7 mm

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

Dynamic load : on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

Technical drawings

Loading quantities (pcs/approx.)

Container	20' Container: 140 St. 40' Container: 330 St. 40' Container high cube: 365 St. Conventional trailer 45’ high cube container: 416 St.
Truck	MEGA-Trailer (13,60 × 2,45 × 3,00 m): 494 St. Jumbo: 532-570 St.

Labelling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
