MGBneo 120, 140, 180, 240, 340, 360 l

The 120 - 360 l MGBneo are an economic solution for modern waste management companies. They comply with DIN EN 840 and RAL-GZ951/1 (GGAWB) and are noise reduced according to EU directive 2000/14/EG.

Characteristics:

  • Optimised construction for an economic use of storage space
  • Stacks of up to 13 (selected bin sizes) enable cost saving potential for transport and storage processes
  • Robust thanks to uniform wall thickness and reinforcement of all walls
  • Large printing area offers space for individual labelling
  • Release pins allow quick and easy lid replacements
  • DDA notch option for ease of bin identification
  • Coloured lid inserts for optional colour-coded identification
  • External wheels, available with 200 mm or 250 mm Ø (120-240 l) / 200 mm or 300 mm Ø (340-360 l) rubber tires
Data sheet (PDF)

MGBneo | Data sheet (PDF)

Art. No.
Description
Dimension (mm) A
Dimension (mm) B
Dimension (mm) C
Volume (l)
Material Body/Lid
Payload (kg)
Available colours
MGBneo 120 120 l 505 max. mm 555 max. mm 1005 max. mm 120 l HDPE 48 kg grau, green, braun, blue, yellow, red
MGBneo 140 140 l 505 max. mm 555 max. mm 1100 max. mm 140 l HDPE 56 kg grau, green, braun, blue, yellow, red
MGBneo 180 180 l 505 max. mm 755 max. mm 1100 max. mm 180 l HDPE 72 kg grau, green, braun, blue, yellow, red
MGBneo 240 240 l 580 ±5 mm 740 max. mm 1100 max. mm 240 l HDPE 96 kg grau, green, braun, blue, yellow, red
MGBneo 340 340 l 590 ±20 mm 880 max. mm 1150 max. mm 340 l HDPE 136 kg grau, green, braun, blue, yellow, red
MGBneo 360 360 l 590 ±20 mm 880 max. mm 1150 max. mm 360 l HDPE 144 kg grau, green, braun, blue, yellow, red
Product enquiry

MGBneo | Data sheet (PDF)

Art. No.
Description
Dimension (mm) A
Dimension (mm) B
Dimension (mm) C
Volume (l)
Material Body/Lid
Payload (kg)
Available colours
MGBneo 120 120 l 505 max. mm 555 max. mm 1005 max. mm 120 l HDPE 48 kg grau, green, braun, blue, yellow, red
MGBneo 140 140 l 505 max. mm 555 max. mm 1100 max. mm 140 l HDPE 56 kg grau, green, braun, blue, yellow, red
MGBneo 180 180 l 505 max. mm 755 max. mm 1100 max. mm 180 l HDPE 72 kg grau, green, braun, blue, yellow, red
MGBneo 240 240 l 580 ±5 mm 740 max. mm 1100 max. mm 240 l HDPE 96 kg grau, green, braun, blue, yellow, red
MGBneo 340 340 l 590 ±20 mm 880 max. mm 1150 max. mm 340 l HDPE 136 kg grau, green, braun, blue, yellow, red
MGBneo 360 360 l 590 ±20 mm 880 max. mm 1150 max. mm 360 l HDPE 144 kg grau, green, braun, blue, yellow, red

Any questions?

Telephone: +49 5245 43-0

E-Mail: info(at)craemer.com

  • Technical data*1
    Container corresponds to EN 840, RAL-GZ951/1, Directive 2000/14/EG
    Travelling gear

    External, wheel Ø 200 mm, rubber tired wheels, wheel axle from tempered, galvanized steel

    Reciever Comb lift
    Prepared for transponder Ja
    Extra equipment / Accessories *2 Lids openable on both sides, Automatic lock, Reflectors, Wheels Ø 250 mmMGBneo 340 l: Wheels Ø 300 mm, Paper aperture, Glas aperture, Lid lock
    Art. No.
    Description
    Dimension (mm) A
    Dimension (mm) B
    Dimension (mm) C
    Volume (l)
    Material Body/Lid
    Payload (kg)
    Available colours
    MGBneo 120 120 l 505 max. mm 555 max. mm 1005 max. mm 120 l HDPE 48 kg grau, green, braun, blue, yellow, red
    MGBneo 140 140 l 505 max. mm 555 max. mm 1100 max. mm 140 l HDPE 56 kg grau, green, braun, blue, yellow, red
    MGBneo 180 180 l 505 max. mm 755 max. mm 1100 max. mm 180 l HDPE 72 kg grau, green, braun, blue, yellow, red
    MGBneo 240 240 l 580 ±5 mm 740 max. mm 1100 max. mm 240 l HDPE 96 kg grau, green, braun, blue, yellow, red
    MGBneo 340 340 l 590 ±20 mm 880 max. mm 1150 max. mm 340 l HDPE 136 kg grau, green, braun, blue, yellow, red
    MGBneo 360 360 l 590 ±20 mm 880 max. mm 1150 max. mm 360 l HDPE 144 kg grau, green, braun, blue, yellow, red

    *1:

    All specifications quoted are subject to change. Craemer reserve the right to make changes to product design and specification.

    *2:

    Extra equipment, accessories, as well as other colors are available at extra cost and on request.

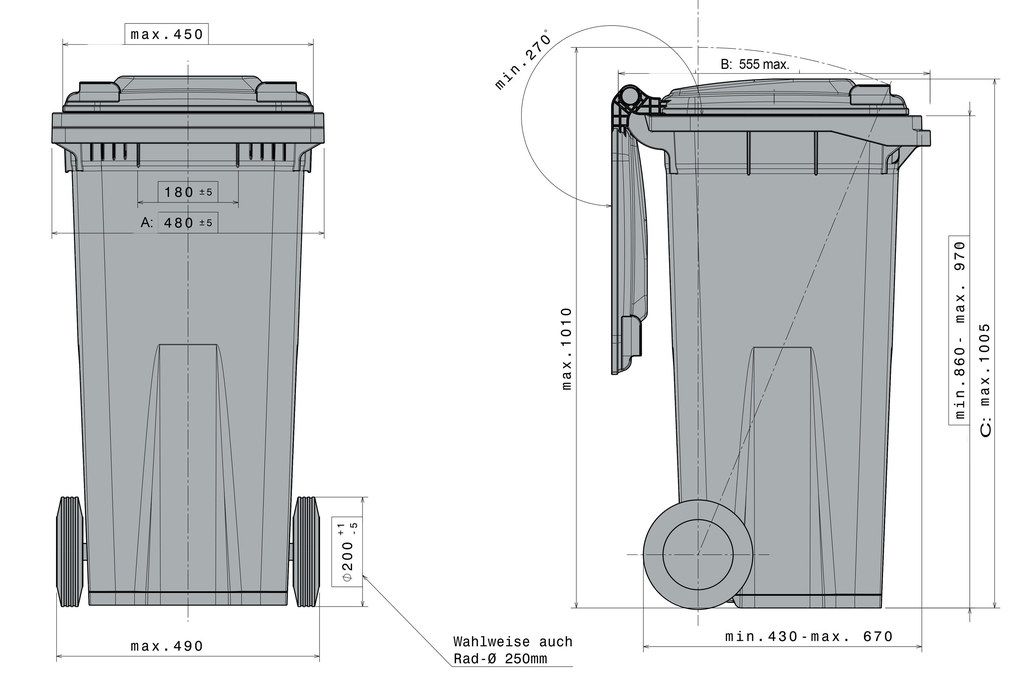

  • Technical drawings

    120 l

    140 l

    180 l

    240 l

    340 l

    360 l

  • Loading quantities (pcs/approx.)

    On request

  • Labelling options
    On the lid, on the body
