CR3 ECO / CR3-5 ECO

The CR3 ECO / CR3-5 ECO recycled Industrial pallet is a universal load carrier with a long service life and excellent price/performance racio. Suited for various applications in the entire non-food area, e.g. in automation, metal processing, mechanical engineering and in pooling.

Characteristics:

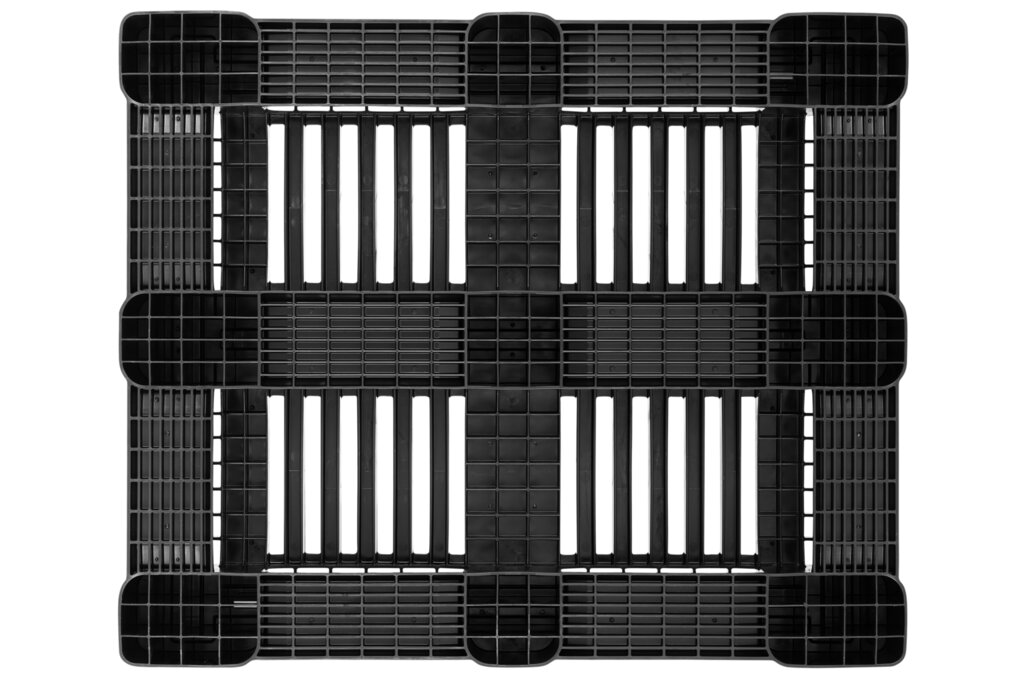

  • Available as 3-runner CR3 ECO or 5-runner CR3-5 ECO
  • Palgrip®-Anti-slip top deck
  • All runners have chamfered edges on both sides for ideal use with fork lift trucks

Option:

  • Corrosion-protected reinforcement profiles, for load capacities of up to 1.400 kg in high rack
  • Rim options: 5 mm, 22 mm
  • Integration of RFID transponders
Watch Video
Data sheet (PDF)

CR3 ECO / CR3-5 ECO | Data sheet (PDF)

Art. No.
Weight (kg)
Load capacity (kg) Static *2
Load capacity (kg) Dynamic *2
Load capacity (kg) High rack *2
Colour
Runners
RFID Transponder
Reinforcement profiles
Central box retainers (mm)
Rims (mm)
Anti-slip
83335202 20 kg 5000 kg 1250 kg 1000 kg black / light blue 3, unwelded 5 mm
83332202 21.5 kg 5000 kg 1250 kg 1000 kg black / light blue 5, unwelded 5 mm
83332201 25 kg 7500 kg 1500 kg 1400 kg black / light blue 5, unwelded 5 5 mm
Product enquiry

CR3 ECO / CR3-5 ECO | Data sheet (PDF)

Art. No.
Weight (kg)
Load capacity (kg) Static *2
Load capacity (kg) Dynamic *2
Load capacity (kg) High rack *2
Colour
Runners
RFID Transponder
Reinforcement profiles
Central box retainers (mm)
Rims (mm)
Anti-slip
83335202 20 kg 5000 kg 1250 kg 1000 kg black / light blue 3, unwelded 5 mm
83332202 21.5 kg 5000 kg 1250 kg 1000 kg black / light blue 5, unwelded 5 mm
83332201 25 kg 7500 kg 1500 kg 1400 kg black / light blue 5, unwelded 5 5 mm

Any questions?

Telephone: +49 5245 43-0

E-Mail: info(at)craemer.com

  • Technical data*1
    Dimensions L×W×H (mm) 1200 x 1000 x 160
    Material PE
    Temperature stability -30 °C to +40 °C, briefly up to +90 °C
    Art. No.
    Weight (kg)
    Load capacity (kg) Static *2
    Load capacity (kg) Dynamic *2
    Load capacity (kg) High rack *2
    Colour
    Runners
    RFID Transponder
    Reinforcement profiles
    Central box retainers (mm)
    Rims (mm)
    Anti-slip
    83335202 20 kg 5000 kg 1250 kg 1000 kg black / light blue 3, unwelded 5 mm
    83332202 21.5 kg 5000 kg 1250 kg 1000 kg black / light blue 5, unwelded 5 mm
    83332201 25 kg 7500 kg 1500 kg 1400 kg black / light blue 5, unwelded 5 5 mm

    *1:

    All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

    *2:

    Our service team is pleased to be at your disposal if you require exact information about material compositions.

    *3:

    Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

    Dynamic load : on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

    In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

  • Technical drawings
  • Loading quantities (pcs/approx.)
    Container 20' Container: 141 St.
    40' Container: 300 St.
    40' Container high cube: 340 St.
    Conventional trailer 45’ high cube container: 416 St.
    Truck MEGA-Trailer (13,60 × 2,45 × 3,00 m): 468 St.
    Jumbo: 504-540 St.
  • Labelling options
    Customised printing and numbering available on request depending on quantity. Position upon consultation.
  • Technical data sheets

    Art. No.: 83335202
    Colour: black / light blue
    Runners: 3, unwelded
    Rims (mm): 5 mm

    Art. No.: 83332202
    Colour: black / light blue
    Runners: 5, unwelded
    Rims (mm): 5 mm

    Art. No.: 83332201
    Colour: black / light blue
    Runners: 5, unwelded
    Rims (mm): 5 mm
